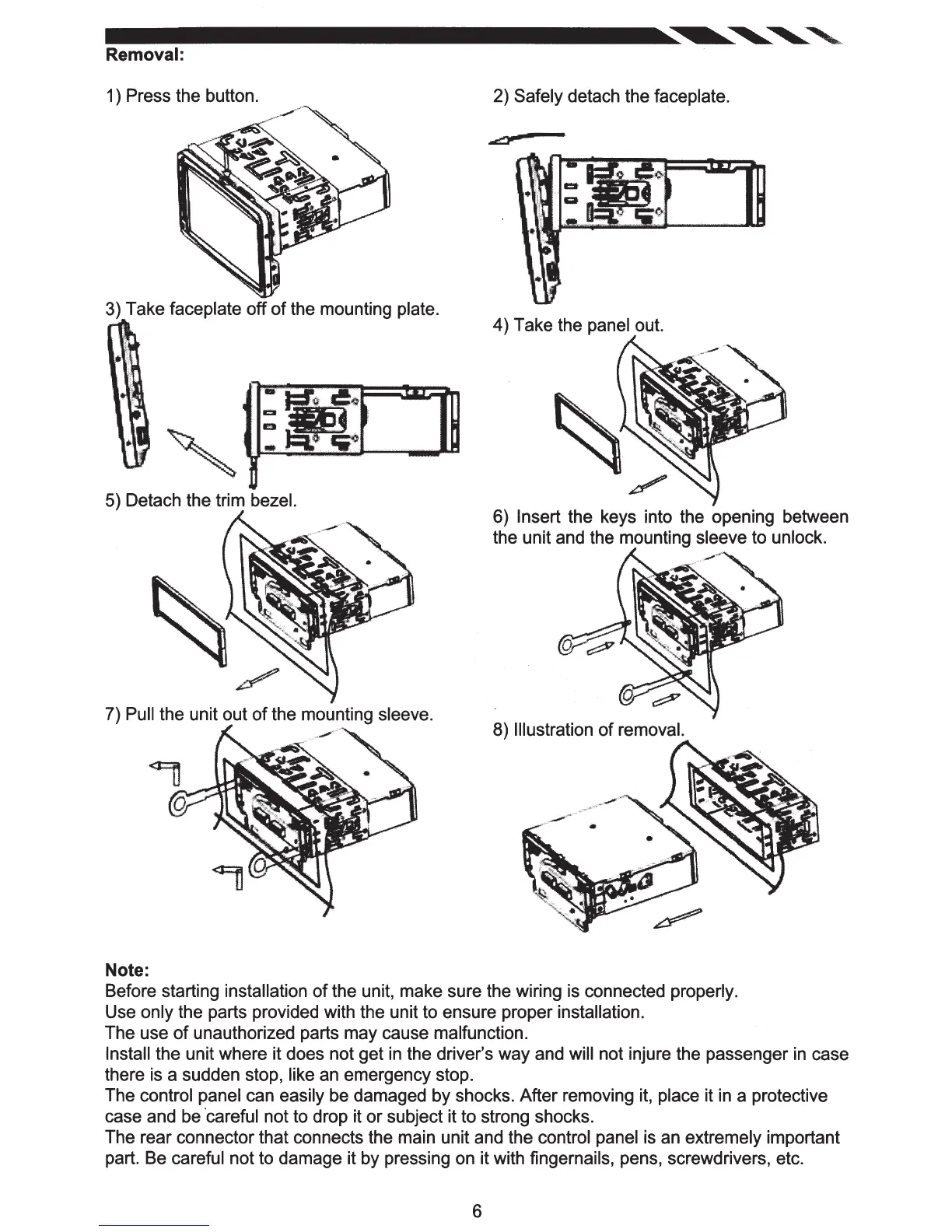

Removal:
1 ) Press the button.
3) Take faceplate off
of
the mounting plate.
5) Detach the trim bezel.
7) Pull the unit out
of
the mounting sleeve.
Note:
2) Safely detach the faceplate.
4) Take the panel out.
6) Insert the keys into the opening between
the unit and the mounting sleeve to unlock.
8) Illustration
of
removal.
Before starting installation
of
the unit, make sure the wiring is connected properly.
Use only the parts provided with the unit to ensure proper installation.
The use
of
unauthorized parts may cause malfunction.
Install the unit where it does not get
in
the driver's way and will not injure the passenger
in
case
there is a sudden stop, like an emergency stop.
The control panel can easily be damaged by shocks. After removing it, place it
in
a protective
case and be ·careful not to drop it or subject it to strong shocks.
The rear connector that connects the main unit and the control panel is an extremely important
part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.
6
