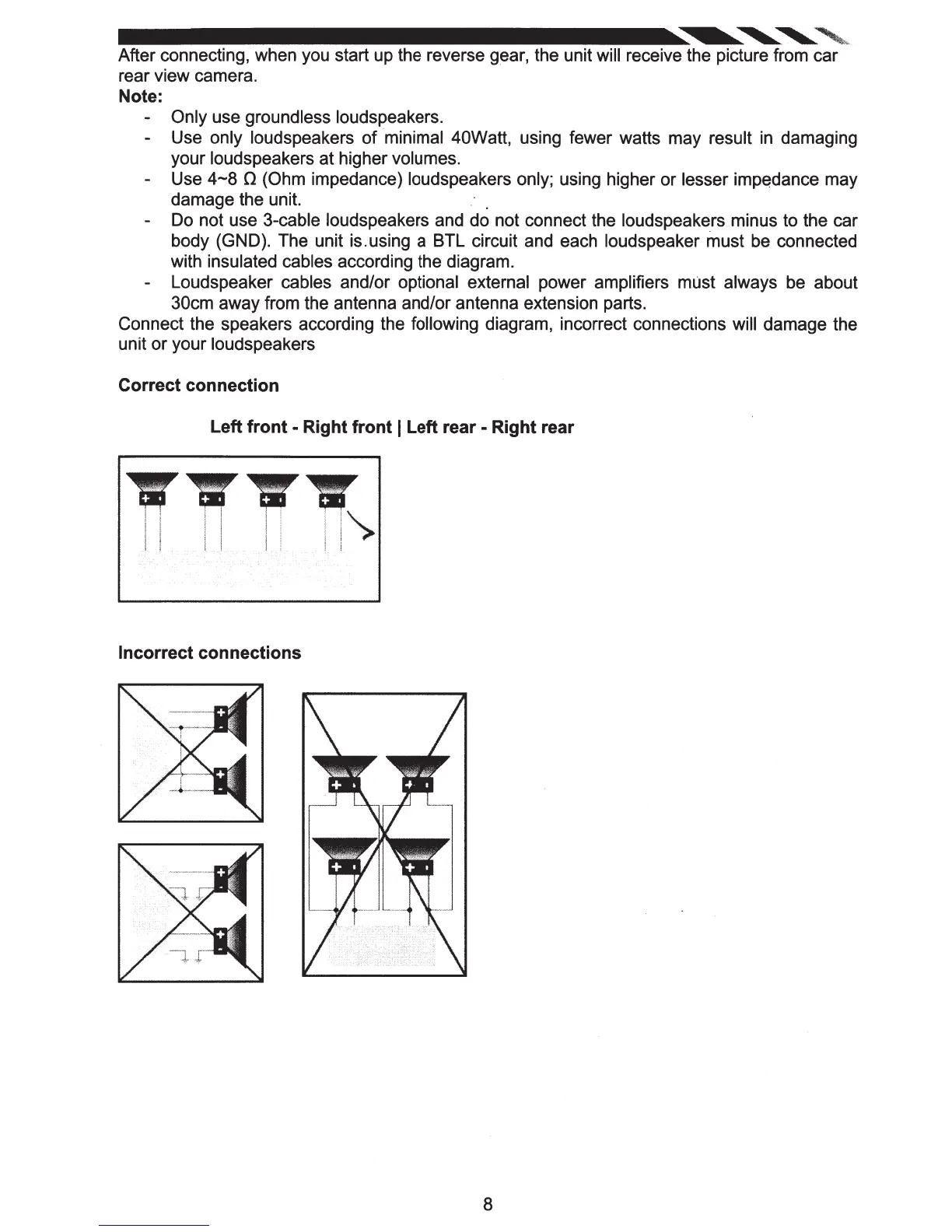

After connecting, when you start up the reverse gear, the unit will receive the picture from car
rear view camera.
Note:
Only use groundless loudspeakers.
Use only loudspeakers of minimal 40Watt, using fewer watts may result
in damaging
your loudspeakers at higher volumes.
Use
4-8 0 (Ohm impedance) loudspeakers only; using higher or lesser impedance may
damage the unit. .
Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car
body (GND). The unit is.using a BTL circuit and each loudspeaker must be connected
with insulated cables according the diagram.
Loudspeaker cables and/or optional external power amplifiers must always be about
30cm away from the antenna and/or antenna extension parts.
Connect the speakers according the following diagram, incorrect connections will damage the
unit
or your loudspeakers
Correct connection
Left
front - Right front I Left rear - Right rear
TTTT
i i I I I ! l 1").
I i f I I ' ' i' .
I l I I I I l i
Incorrect connections
