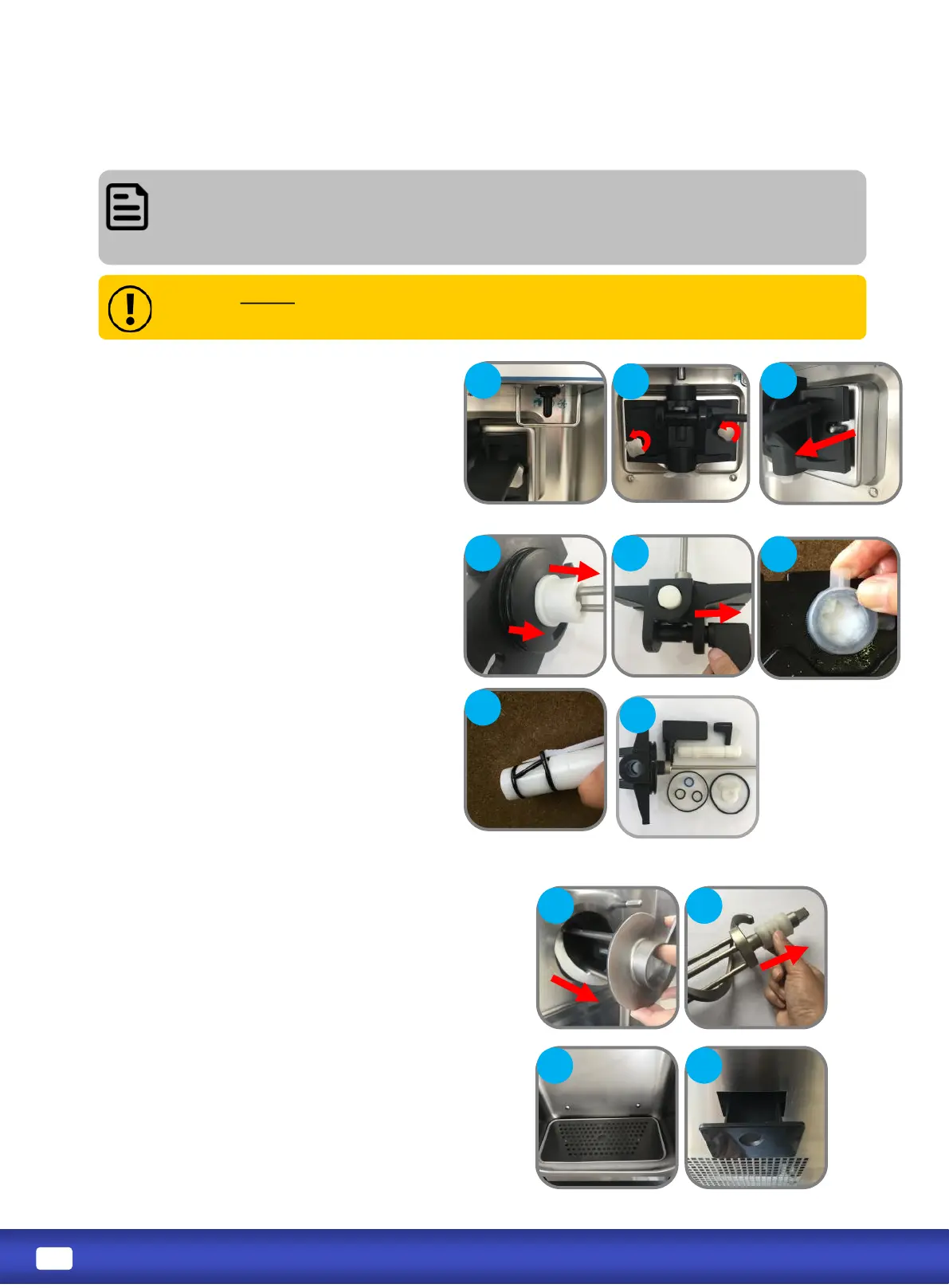

a. Remove beater guide from door Assembly;
remove gasket from door assembly using
O-ring removal tool.
b. Remove draw handle.
c. Rotate star cap.
d. Remove all O-rings by O-ring removal tool.
e. Disassemble the dispensing door.
Prepare dishwashing area prior to disassembly, use bucket to temporarily store
large removed parts and a small container for O-rings, and have a towel nearby to
capture excess water.
Always separate O-rings and gaskets from metal parts to prevent damage while
washing.
a. Remove dispensing-door hand-screws .
b. Remove dispensing door assembly from
cylinder.
a. Remove beater assembly from cylinder.
b. Separate seal from beater.
To Next Page
