SYSTEM OVERVIEW
The SpeakerCraft MZC-66 System consists of four subsystems. First, the Keypads, (EZ-Pad, IMKP, MODE 3.1, not included)
can be setup in a variety of confi gurations to meet virtually any client requirement. They are connected via convenient CAT-5
cable with home run lengths of up to 1000’ (305m); (MODE, 500’; 152m) to the centrally located MZC-66 Multi-Zone Audio/
Video Amplifi er Controller and source components. The MZC-66 contains the “brains” of the system, taking key location data
(button presses) from the keypads to trigger IR, RS232 and RS485 commands to control system functions and source compo-
nents. Programming is accomplished using EZ-Tools, a SpeakerCraft developed Windows® software system. A fourth item,
the LTM-1.0 Learning Test Module, is an installer’s tool (not included) for learning and teaching special IR commands that are
not included in the EZ-Tools Command Library.
KEYPAD CONFIGURATIONS
EZ-PAD
One keypad option for MZC-66 system control is the SpeakerCraft EZ-Pad System. EZ-Pads can be confi gured in single,
double or triple-gang confi gurations as shown in Figure 1. (Decorator style cover plates are not included. Screw-less “Snap-
On” type cover plates can also be used. Each keypad module must be ordered separately.)
Each keypad comes with a set of factory installed “default buttons” plus a good variety of additional buttons for changes
to the default confi guration. The default buttons can be easily changed to meet the needs of any installation. Additional
buttons are available separately for purchase. See the SpeakerCraft Catalog and Price Sheet for the latest availabilities or call
SpeakerCraft Customer Service.

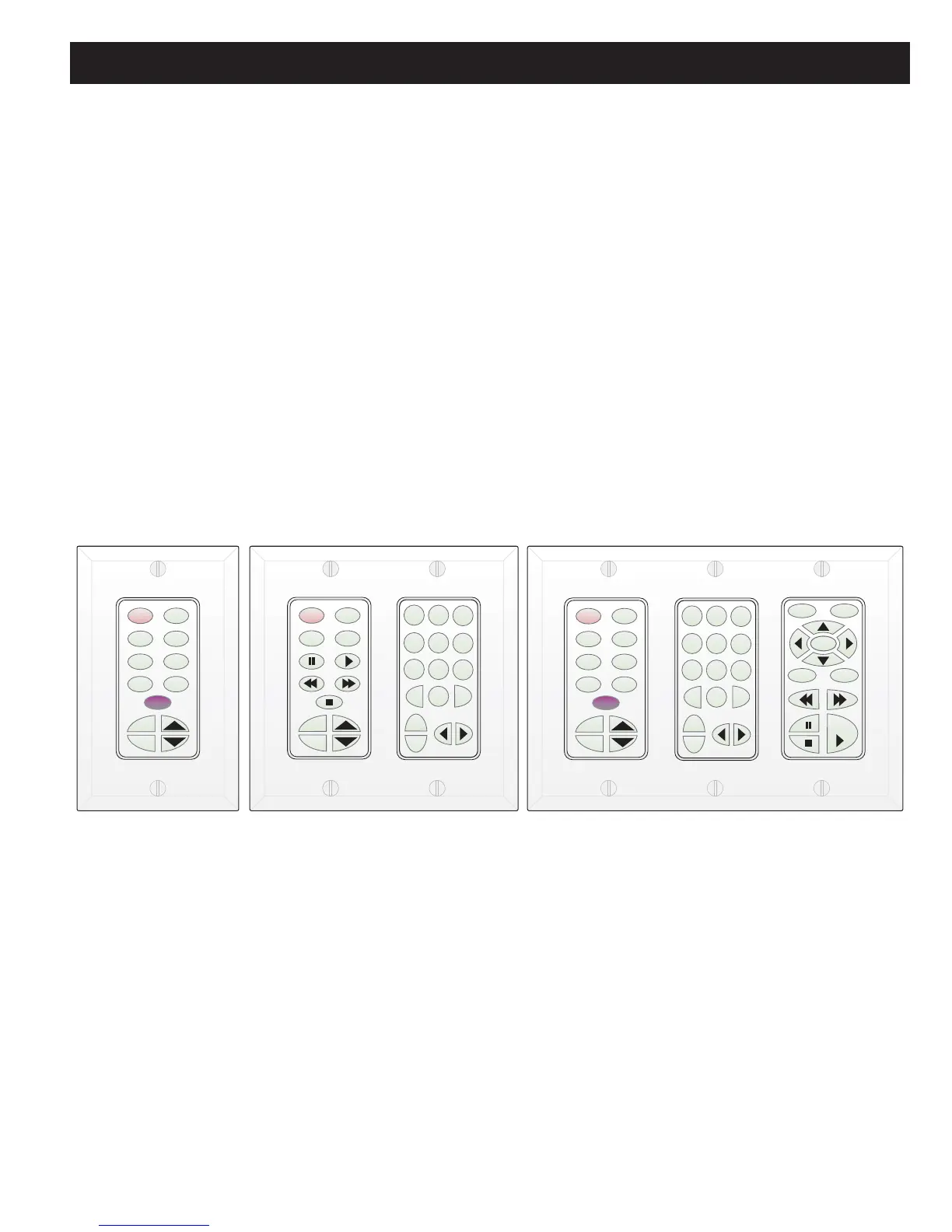

Figure 1
EZ-Pad Gang Configurations
MKP-1.1 NKP-1.0 FKP-1.0
(optional)
Three Gang
MKP-1.0 NKP-1.0
(optional)
Two Gang
DVD
SAT
MUTE
iPOD1
CD
PWR
MKP-1.1
(optional)
Single Gang
1
2
3
4
56
7
8
9
0
TRK DSC
RDM
GRP
12
3
456
7
89
0
TRK DSC
RDM
GRP
PLAY
ESC INFO
MENUGUIDE
SEL
CBL AUX
MUTE
DVD
SAT
PWR
iPOD1
TREBBASS
CD
CBL AUX
MUTE
DVD SAT
PWR
iPOD1
TREBBASS
CD
IMKP
Another option for MZC-66 System control is the SpeakerCraft IMKP Series Keypads. The IMKPs are a Euro-Design version of
the EZ-Pads that have similar functionality in a mechanical package that fi ts European style in-wall junction boxes. They are
available in 2 and 3 gang confi gurations and each includes a SpeakerCraft IR Receiver with ANS. See: IMKP-2.1/IMKP-1.1
Installation Instructions for additional information. IMKP-2.1/IMKP-1.1 Installation Instructions can be downloaded from
www.speakercraft.com.
MODE 3.1
The third, and best option for MZC-66 system control, is the SpeakerCraft MODE 3.1. MODE 3.1 is a graphic display keypad
that combines the convenience and confi gurability of EZ-Pad/IMKP style hard keys with graphic ‘Virtual Buttons’ that can
be created in EZ-Tools for any function imaginable. In addition, MODE 3.1 displays metadata from the MZC as well as iPod
(when controlled with a SpeakerCraft MODE Base), SpeakerCraft Tuners and MODE Jukebox. MODE 3.1 requires a special
mounting bracket and bezel, both of which are included with MODE 3.1. See: MODE 3.1 Installation Instructions for
additional information. MODE 3.1 Installation Instructions can be downloaded from www.speakercraft.com.

SpeakerCraft MZC-66 Specifications

Audio Specifications

rated power per channel	30 Watts, 20 Hz to 20 kHz
power per channel	45 Watts @ 1 kHz
total harmonic distortion	< 0.7 %
frequency response	20 Hz to 20 kHz +/- 1.5 dB
channel separation	> 50 dB @ 10 kHz
crosstalk between sources	> 65 dB @ 10 kHz
signal to noise ratio	> 95 dB

Power

power consumption	55 Watts
line ratings	120 VAC, 2.0A
rear panel fuse	T5AL 250V

Weight and Dimensions

width	17 inches (432 mm)
height	5-1/4 inches (133 mm)
depth	14-3/4 inches (375 mm)
weight	23 lbs (10.5 kg)
