Page 10 MZC-66 Hardware Installation Instructions
FEATURE DESCRIPTIONS
MZC-66 FRONT PANEL
The MZC-66 is an 6-Zone, 6-Source Audio/Video Amplifi er Controller. It serves as the “brains” of the entire keypad system and
provides audio and video switching and control for up to six external sources. Twelve 30W/channel digital audio power
amplifi ers provide clean, powerful audio for up to six zones.
The Front Panel features a Master Power ON/OFF Switch and indicator and Zone ON/OFF Status is also displayed on the
front panel to show system activity.
The Rear Panel is neatly laid out to provide clear access for all system control, audio, video, paging and trigger connections.
System Programming is done via connections on the Rear Panel.
1. ZONE STATUS LED INDICATORS AND LABELS – Six, green LEDs indicate the zones that are currently active. Indented
spaces accept adhesive backed labels for zone/room identification. A sheet of descriptive labels, typical of room or area
names used in homes, are included.
2. MASTER POWER SWITCH – When pressed to the in position, the MZC-66 is placed in the power ON standby condition,
permitting individual zones to be turned ON and OFF by keypad or touch panel commands. In the OFF (out) position,
power from the AC mains is completely turned off.
3. RED INDICATOR LED – Indicates when the Master Power switch is in the depressed position and that power has been
applied from the AC mains.

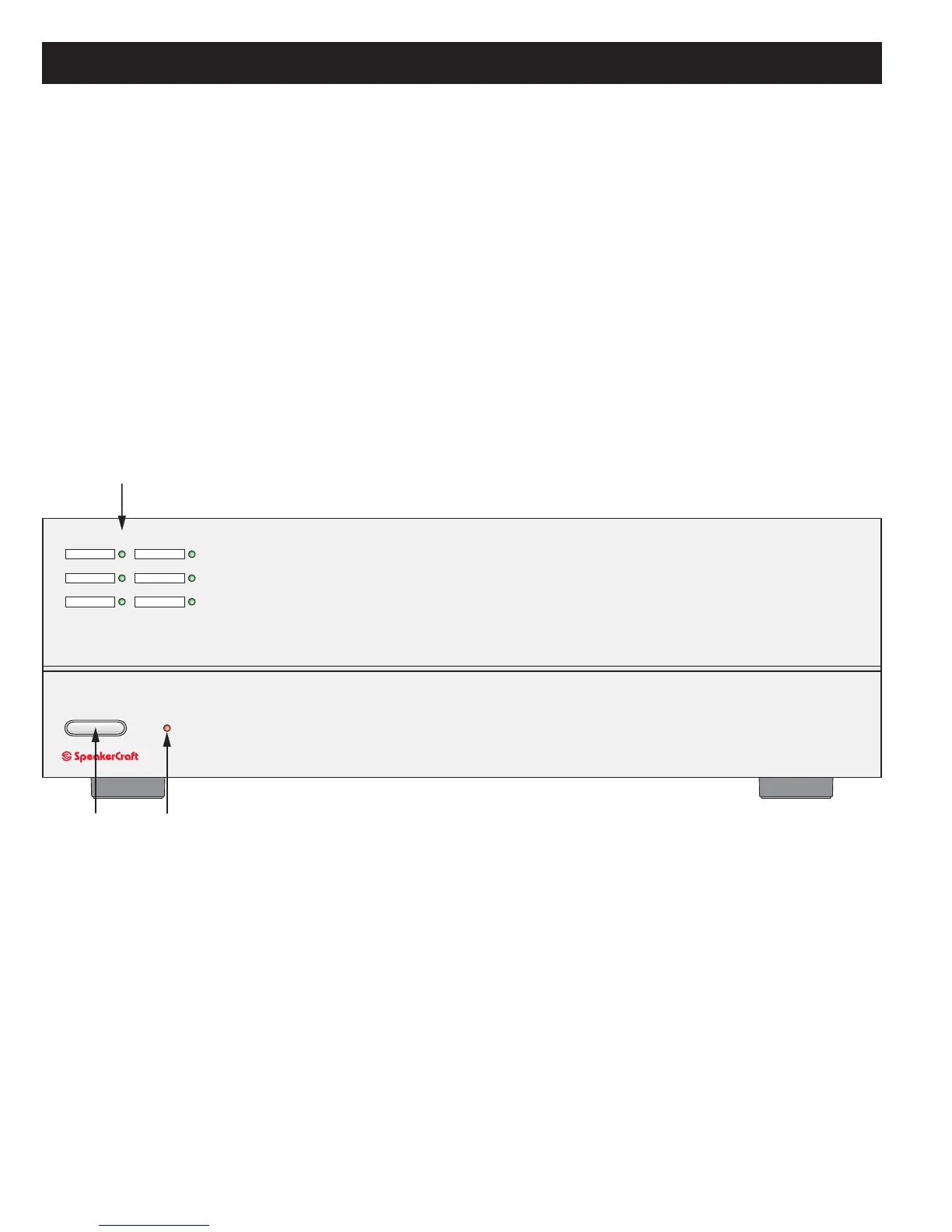

Figure 3
MZC-66 Front Panel Features
MZC-66
ZONE STATUS
MASTER POWER
1
2
3
12
34
5
6
