3. Name, Function and Connection
3-1. Front Panel
DxxVT

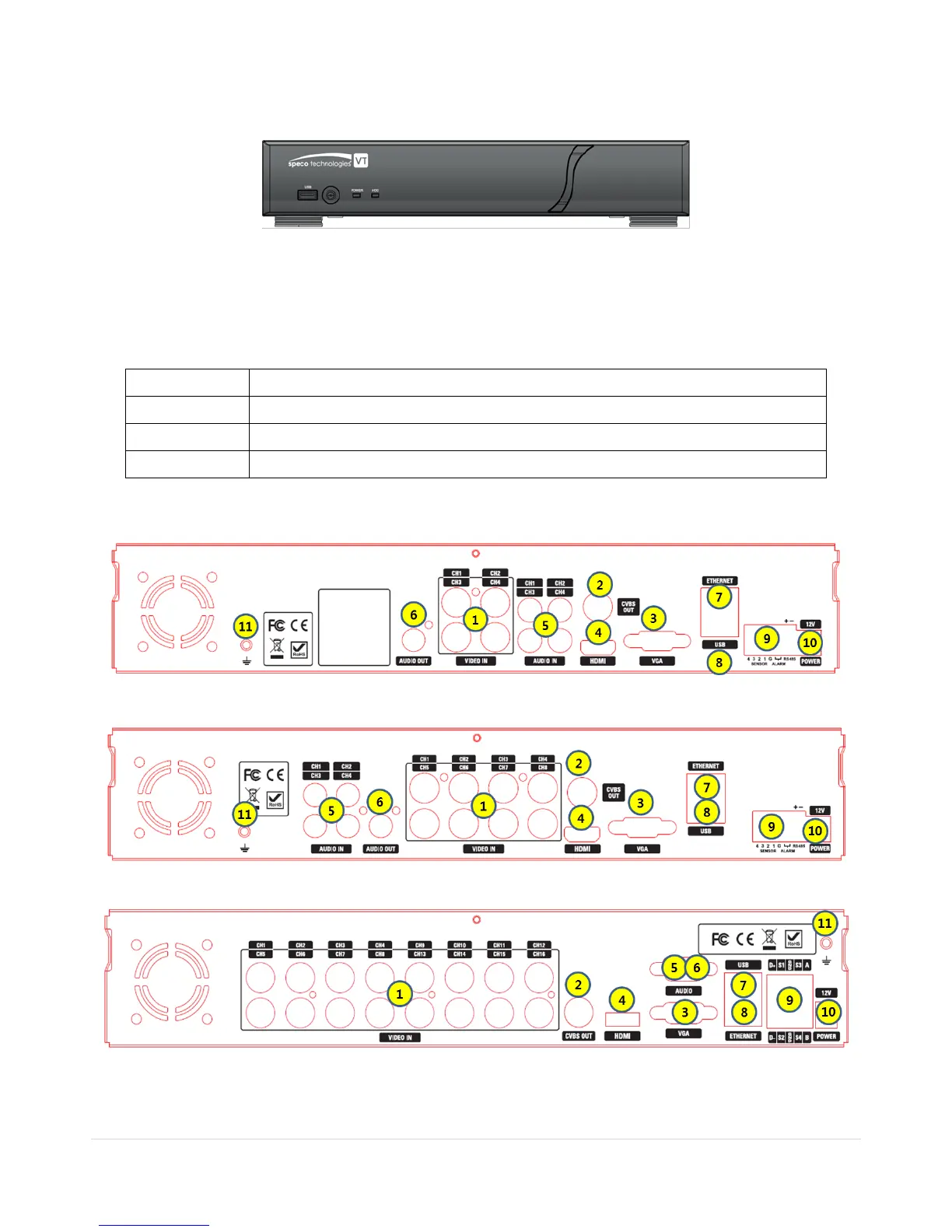

Figure 3.1.1. Front panel
Table 3.1.1. Front LED and Port of DxxVT
Name
Description
POWER
LED light is on when power is applied to the system.
HDD
LED light is on when the system is recording video data.
USB Port
This USB port for archiving footage into a USB device. (USB 2.0 connector)
3-2. Connectors
D4VT
D8VT
D16VT
Figure 3.2.1. Rear Panel Connections
