3. Front and Rear Panels
3-1. Desktop Front Panel

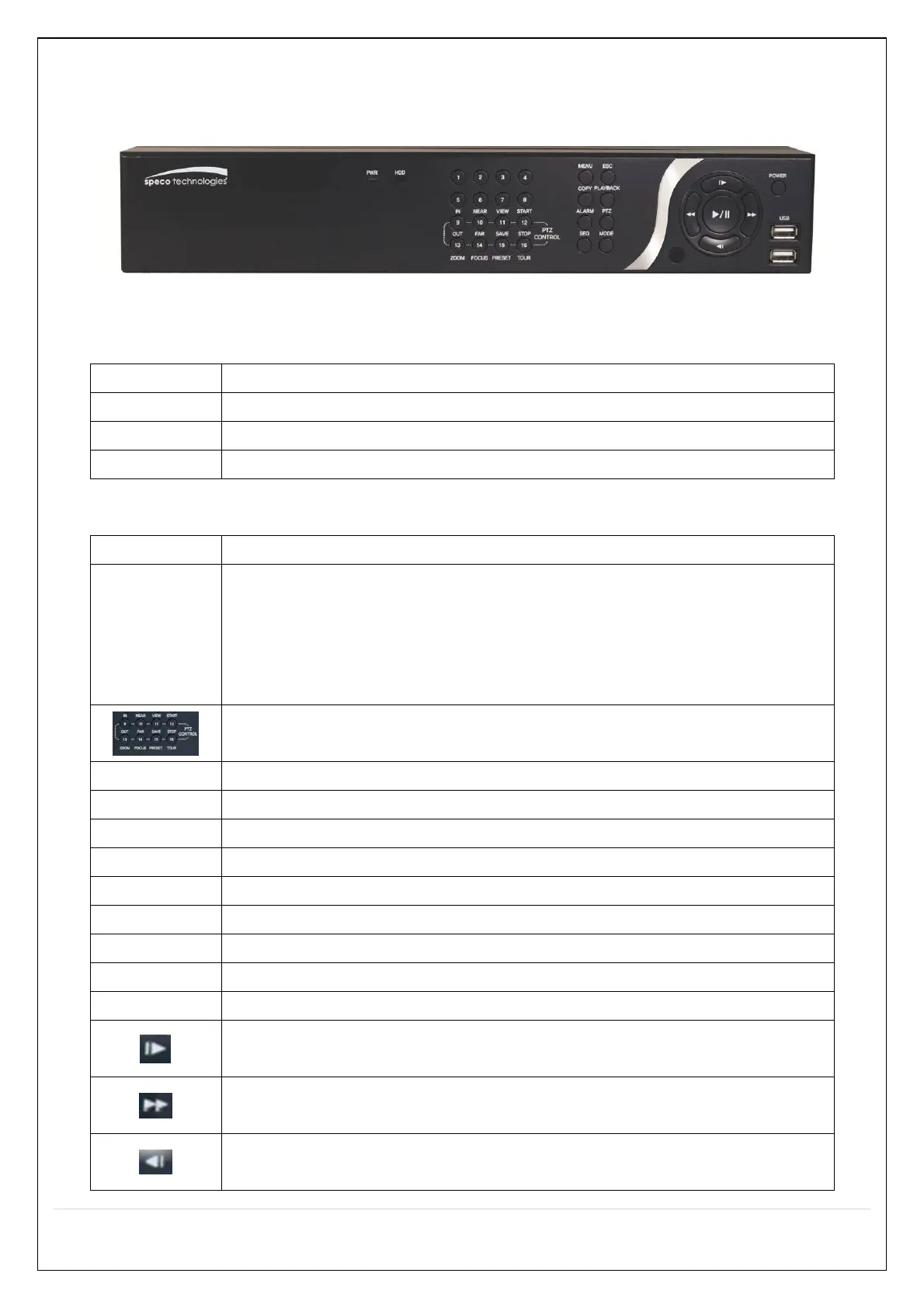

Figure 3.1.1. Desktop NS Front panel
Table 3.1.1. Front LED and Front Port of NS
Name Description
POWER LED light is on when power is applied to the system.
HDD LED light is on when the system is recording video data.
USB Port This USB port for archiving footage into a USB device. (USB 2.0)
Table 3.1.2. Front Buttons
Name Description
Number1~16
Select a channel from CH1 to CH16.
[N32NS Channel Button Scenario]
When press number1 to 9 button, it moves to Ch1 to Ch9 screen.
When press number 0 to 9 after pressed number 1, 2 and 3 within 2 seconds,
it moves to Ch10 to Ch32. (For example, press 2 and 1 Ch21)
Buttons from 9 to 16 are used as function keys in PTZ control mode.
To escaping PTZ mode, press the ESC button.
MENU Enters the Setup Menu.
COPY Takes a screenshot on Live and Backup button on Playback.
ALARM Activates the external alarm device.
SEQ Enable the sequence mode on Live.
ESC Exits the current mode or cancel an operation.
PLAYBACK Goes to search menu.
PTZ Activate Pan, Tilt and Zoom menu operation.
MODE Select the screen display mode (1x1, 2x2, 3x3, if applicable: 4x4, 1+7)
POWER Initiates system shut down.
LIVE mode – Up
SEARCH mode - Jump 1min ahead on playback and 1 frame ahead on pause.
LIVE mode – Right
SEARCH mode - Control the play speed (Fast Forward).
LIVE mode – Down
SEARCH mode - Jump 1min back on playback and 1 frame back on pause.
