38 SPECTROMAXx —

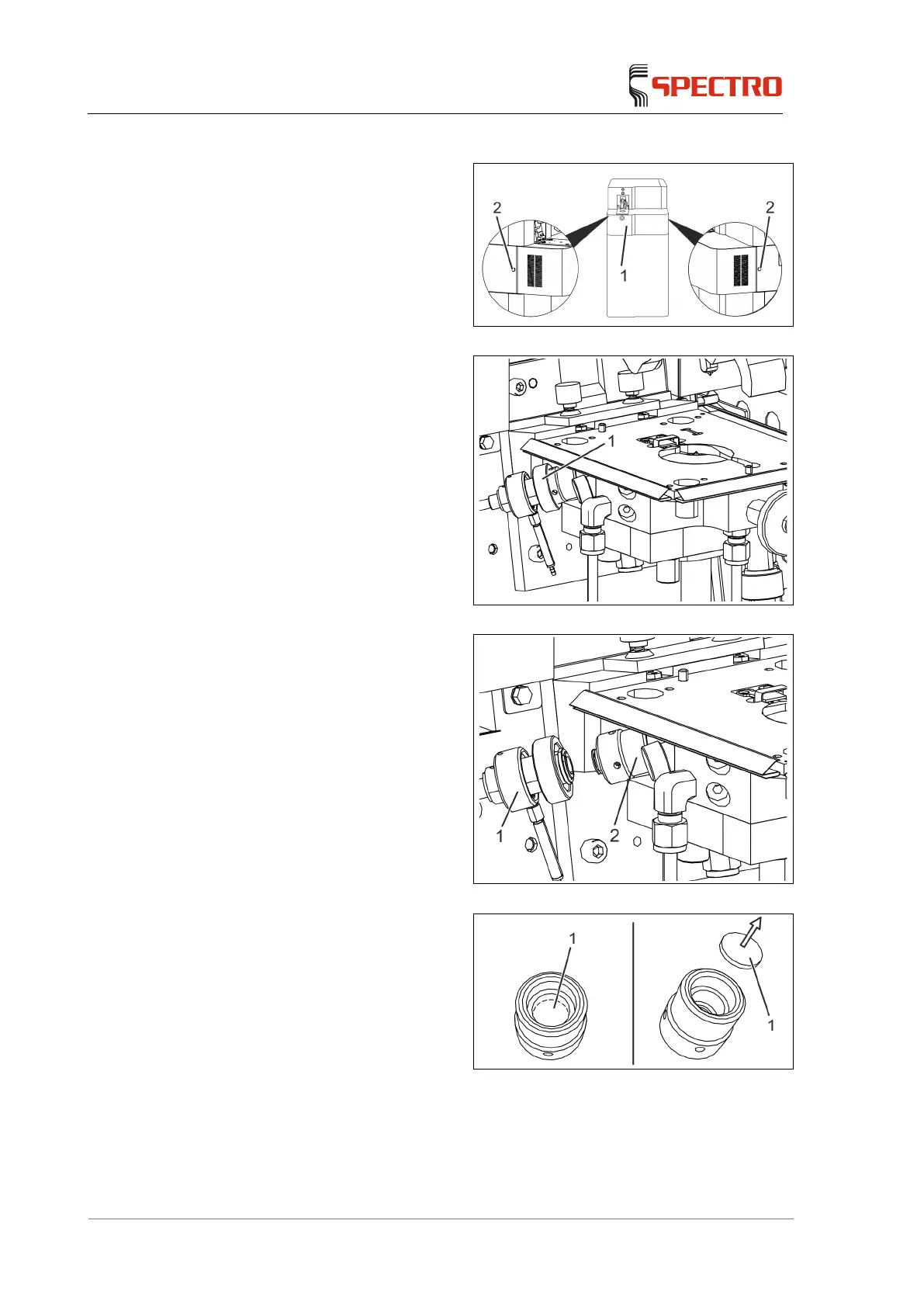

4. Unlock the cover (1) by pressing
both buttons (2) simultaneously.
5. Remove the cover (1).
Fig. 13
6. Loosen the union nut (1).
Fig. 14
7. Remove the fiber optic holder
(1) from the spark stand.
8. Loosen the window holder (2)
from the spark stand.
The quartz window is
located between the holder
and the O-ring.
Direct contact with the optical
surfaces must be avoided!
Fig. 15
9. Clean the light inlet window (1),
using optical paper or a lint-free
soft cloth.
If the light inlet window is
too dirty, it must be
replaced.
Fig. 16
