7.8.2 Optic air filter
The filter mat of the optic air filter is located on the right-hand side panel of the
instrument.
In order to clean or replace the air filter mat, proceed as follows:
1. Loosen the two cross-head screw
(1).
2. Remove the cover (2).

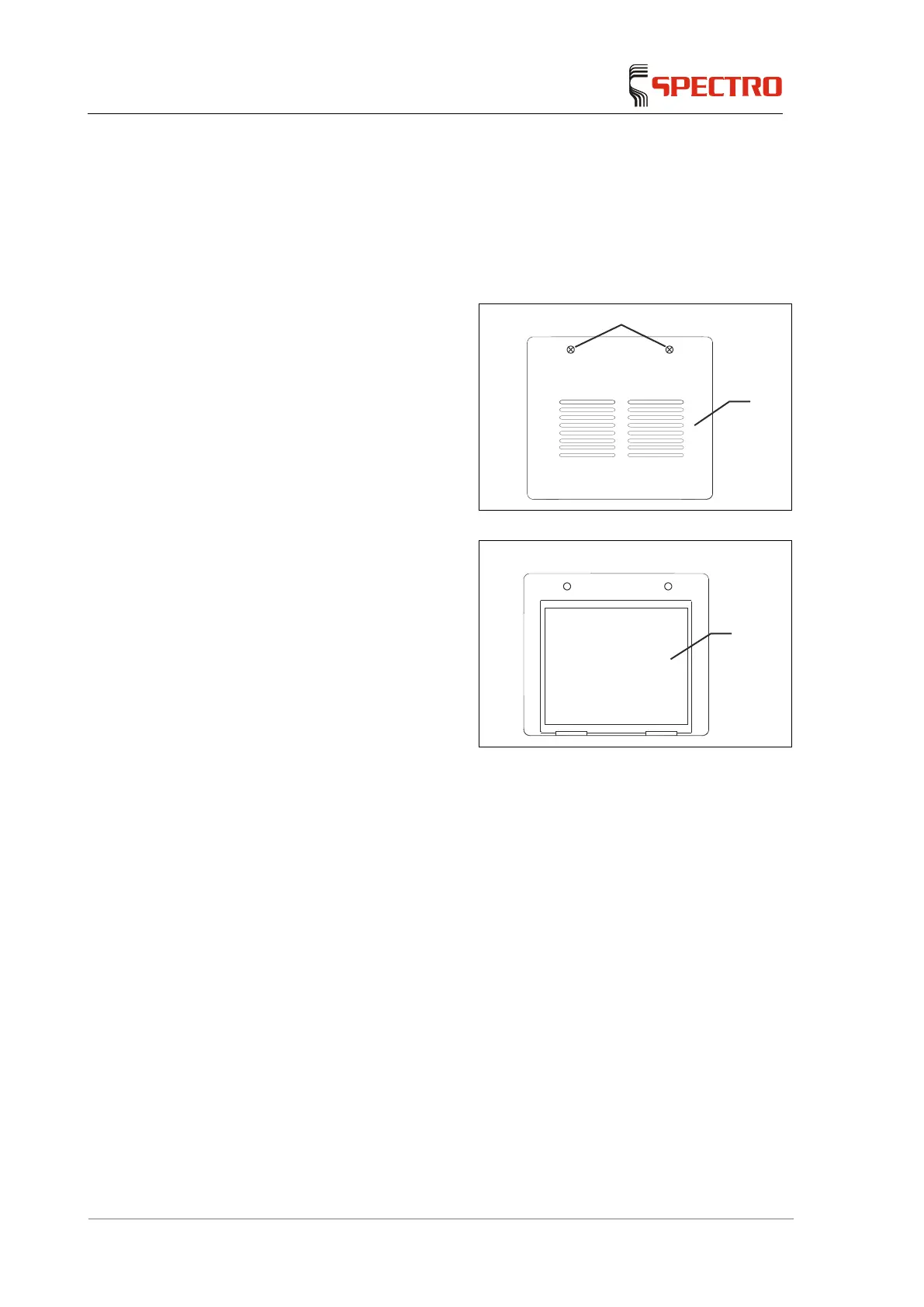

Fig. 34
3. Remove the filter mat (1).
Fig. 35
4. Install the new filter mat.
5. Tighten the screws.
6. Install the cover.
 The optic air filter is cleaned / replaced.
