Spectrum 802.11ac Wave 2 User Manual

98
7. Enable:
8. Base On:
9. Name:
10. Queue Type:
11. Queue Name:
12. Class Interface:
13. Source IP:
14. Source MAC Address:

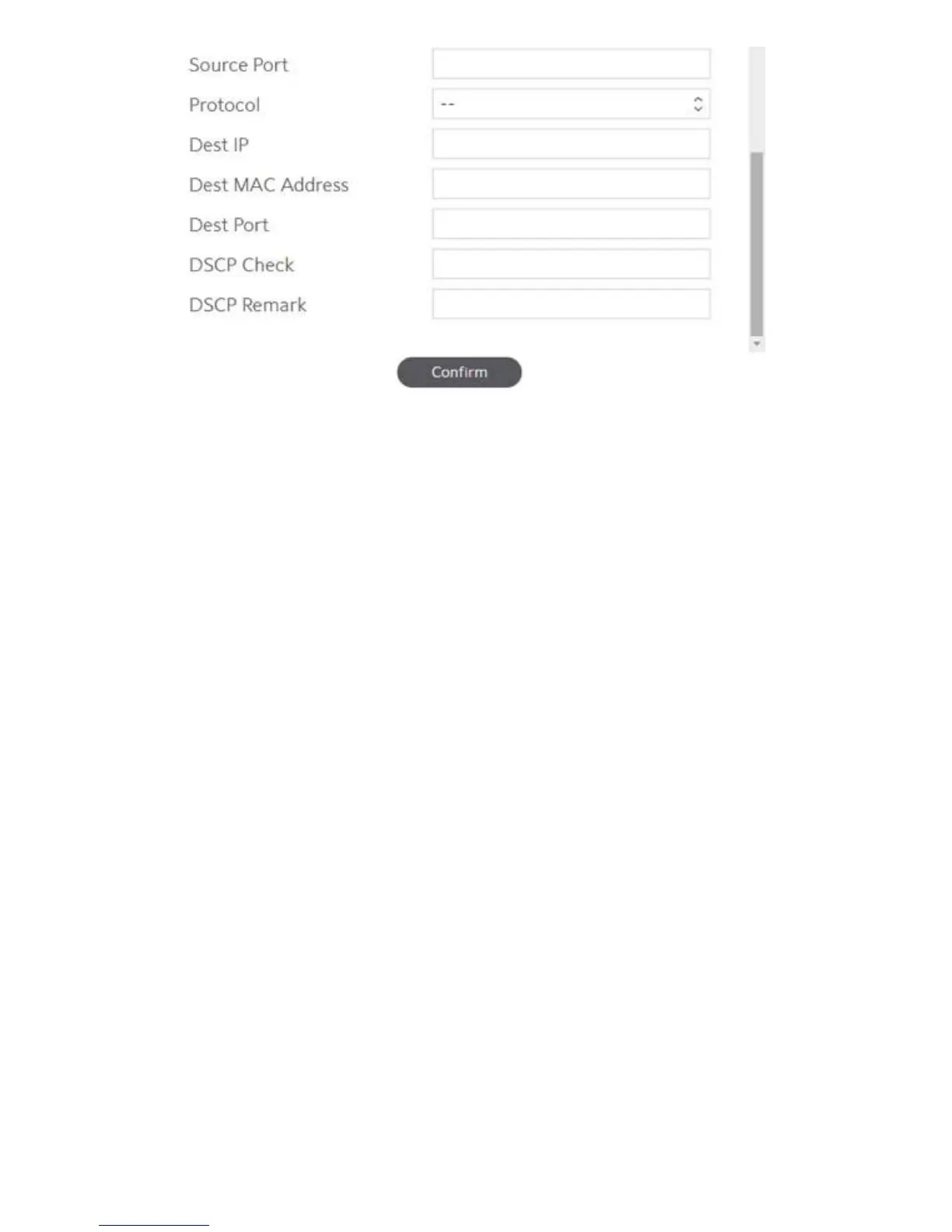

15. Source Port:
16. Protocol:
17. Dest IP:
18. Dest MAC Address:
19. Dest Port:
20. DSCP Check:
21. DSCP Remark:
22. When done, click Apply.
Disable or enable this classification function.
It is a fast classification, (can be based on Client, Custom, Server,
SSID, APP).
Define this classification alias name.
Select the existing queue (upstream or downstream).
Only display. Indicates the index number of the queue type
selected by the user.
This specifies the ingress interface associated with the entry.
Source IP address. An empty string indicates this criterion is not
used for classification.
Source MAC Address. An empty string indicates this criterion is
not used for classification.
Source port number
Protocol
Destination IP address, an empty string indicates this criterion is
not used for classification.
Destination MAC Address. An empty string indicates this criterion
is not used for classification
Destination port number.
DSCP number (0~63), base on it filter.
Remark new DSCP number.
