PARTS LIST MICRO & PROXIMITY SWITCH ACTUATORS
SP110MS - NORMALLY OPEN MS/PRX
LONG STROKE ACTUATOR (PICTURED)
SP120MS - NORMALLY OPEN MS/PRX
LONG STROKE ACTUATOR

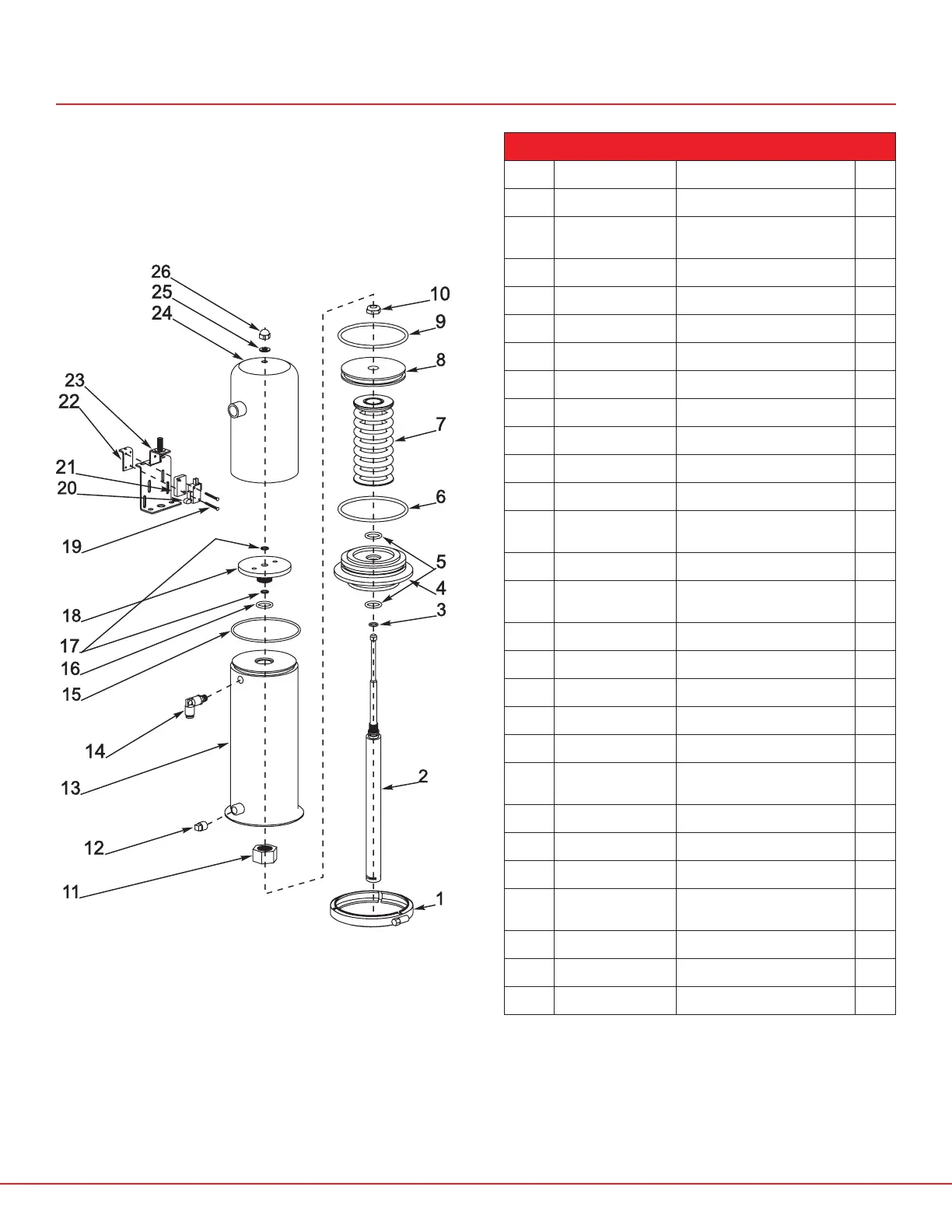

SP110MS/SP110PRX/SP120MS/SP120PRX ACTUATORS
ITEM PART NUMBER DESCRIPTION KIT
1 SP13HC-4 Actuator Clamp
2
SP110MS-2D
SP120MS-2D
Actuator Stem
3 SP10-6 Upper Stem O-Ring ▲
4 SP10-7 Lower Stem O-Ring ▲
5 SP110-4 Actuator Foot
6 SP10-9 Foot O-Ring ▲
7 SP110-5 Spring and Cage
8 SP110-2 Piston
9 SP10-8 Piston O-Ring ▲
10 SP10-12 Stem Nut
11 SP10MS-1BN Base Plate Nut
12
SP10-15BV
SP10MS-15BV
1/8” I/P Adapter Plug
13 SP110MS-1 Cylinder
14
SP10MS-14
SP10-14
1/4” Poly-Tube Connector
15 SP10-9 Cover O-Ring
16 SP10-7 Base Plate O-Ring
17 SP10MS-40B Indicator Stem O-Ring
18 SP10MS-1B Base Plate
19 SP10MS-3C Micro-Switch Screw (x2)
20
SP10MS-3B
SP20-DPS
Micro-Switch (x2)
Dual Prox Switch (x2)
21 SP10MS-3A Micro-Switch Block (x2)
22 SP10MS-3D MS Adjusting Bracket (x2)
23 SP110MS-3 Micro-Switch Bracket
24
SP110MS-1A
SP120MS-1A
Micro-Switch Housing
25 SP10MS-1CW MS Housing Washer
26 SP10MS-1C Acorn Nut
** SP20PS-PD Prox Switch Indicator
SEE PAGE XX FOR MORE INFORMATION ON MICRO AND PROX SWITCHES
▲ INCLUDED IN SP120-SK ACTUATOR SERVICE KIT
** ITEM NOT SHOWN
