41

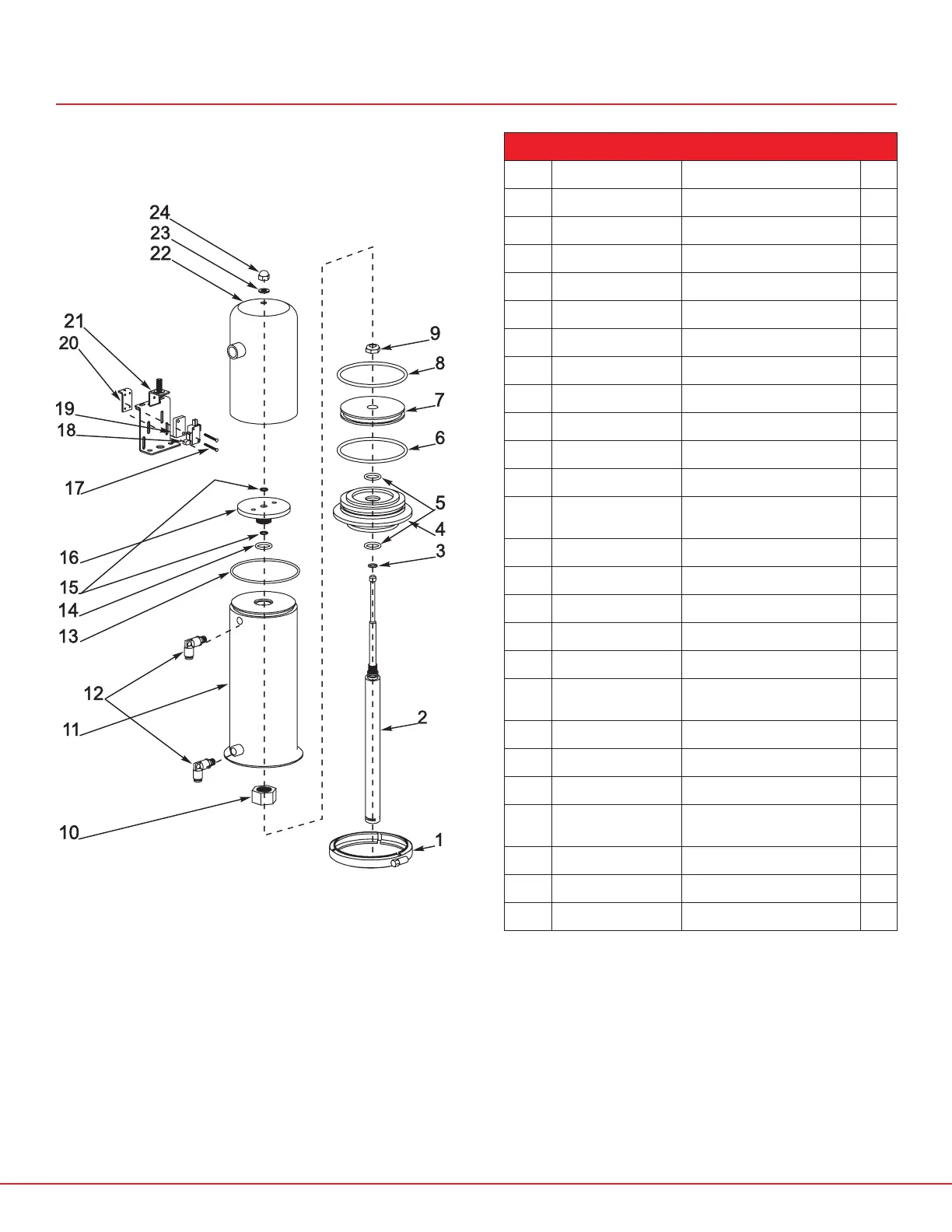

PARTS LIST MICRO & PROXIMITY SWITCH ACTUATORS
SP130MS - AIR-TO-AIR MS/PRX
LONG STROKE ACTUATOR
SP130MS/SP130PRX ACTUATORS
ITEM PART NUMBER DESCRIPTION KIT
1 SP13HC-4 Actuator Clamp
2 SP110MS-2D Actuator Stem
3 SP10-6 Upper Stem O-Ring ▲
4 SP10-7 Lower Stem O-Ring ▲
5 SP110-4 Actuator Foot
6 SP10-9 Foot O-Ring ▲
7 SP110-2 Piston
8 SP10-8 Piston O-Ring ▲
9 SP10-12 Stem Nut
10 SP10MS-1BN Base Plate Nut
11 SP110MS-1 Cylinder
12
SP10MS-14
SP10-14
1/4” Poly-Tube Connec-
tor (x2)
13 SP10-9 Cover O-Ring
14 SP10-7 Base Plate O-Ring
15 SP10MS-40B Indicator Stem O-Ring
16 SP10MS-1B Base Plate
17 SP10MS-3C Micro-Switch Screw (x2)
18
SP10MS-3B
SP20-DPS
Micro-Switch (x2)
Dual Prox Switch (x2)
19 SP10MS-3A Micro-Switch Block (x2)
20 SP10MS-3D MS Adjusting Bracket (x2)
21 SP110MS-3 Micro-Switch Bracket
22
SP110MS-1A
SP120MS-1A
Micro-Switch Housing
23 SP10MS-1CW MS Housing Washer
24 SP10MS-1C Acorn Nut
** SP20PS-PD Prox Switch Indicator
▲ INCLUDED IN SP120-SK ACTUATOR SERVICE KIT
** ITEM NOT SHOWN
SEE PAGE XX FOR MORE INFORMATION ON MICRO AND PROX SWITCHES
