SPI VALVES SP160 Series User Manual

50

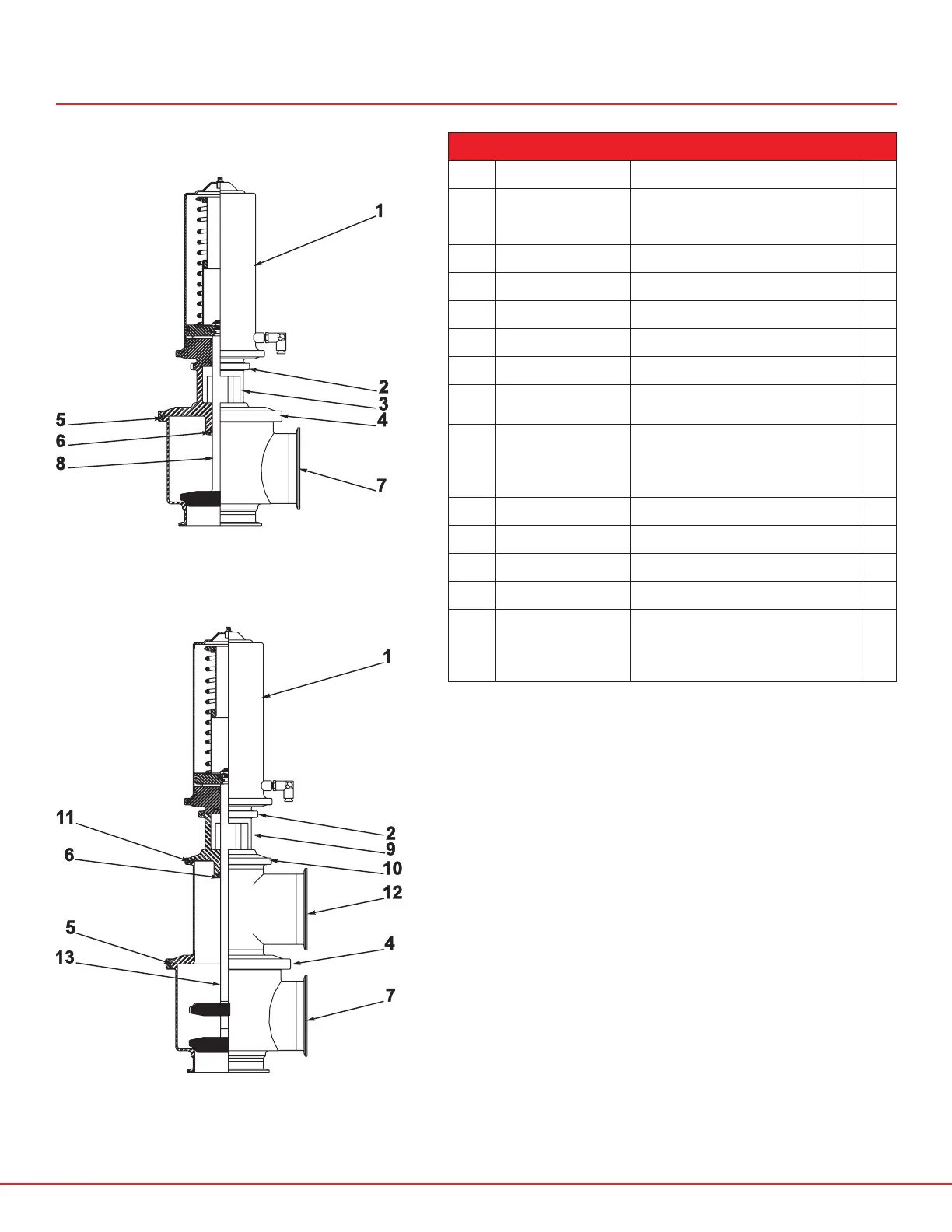

PARTS LIST  4INCH SHUT OFF AND DIVERT VALVES
SP161-7 4-INCH LONG STROKE SHUT OFF VALVE
SP161-77 4-INCH LONG STROKE DIVERT VALVE
4-INCH SHUT OFF AND DIVERT VALVES
ITEM PART NUMBER DESCRIPTION KIT
1
SP110
SP120
SP130
Actuator (N.O.)
Actuator (N.C.)
Actuator (A/A)
2 SP13Z-2.5 Bonnet Clamp
3 SP161-7-4-3 Bonnet
4 SP13HC-6 Body Clamp
5 SP40-6 Body Gasket ○
6 SP10-7 Bonnet O-Ring ○
7
SP161-7-4-1
SP161-9-4-1
Tee Body
Cross Body (not shown)
8
SP161-7-4-2E-120
SP161-7-4-2V-120
SP161-7-4-2E-110
SP161-7-4-2V-110
Plug and Stem (N.C.) (EPDM)
Plug and Stem (N.C.) (Viton)
Plug and Stem (N.O.) (EPDM)
Plug and Stem (N.O.) (Viton)
9 SP161-77-4-3 Divert Bonnet
10 SP13HC-4 Upper Body Clamp
11 SP40-4 Upper Body Gasket
12 SP161-77-4-1 Upper Divert Body
13
SP161-77-4-2E-120
SP161-77-4-2V-120
SP161-77-4-2E-110
SP161-77-4-2V-110
Divert Plug and Stem (N.C.) (EPDM)
Divert Plug and Stem (N.C.) (Viton)
Divert Plug and Stem (N.O.) (EPDM)
Divert Plug and Stem (N.O.) (VIton)
○ INCLUDED IN SP120-RBK-4 VALVE SERVICE KIT
