DISASSEMBLY INSTRUCTIONS SP160 SHUTOFF VALVE

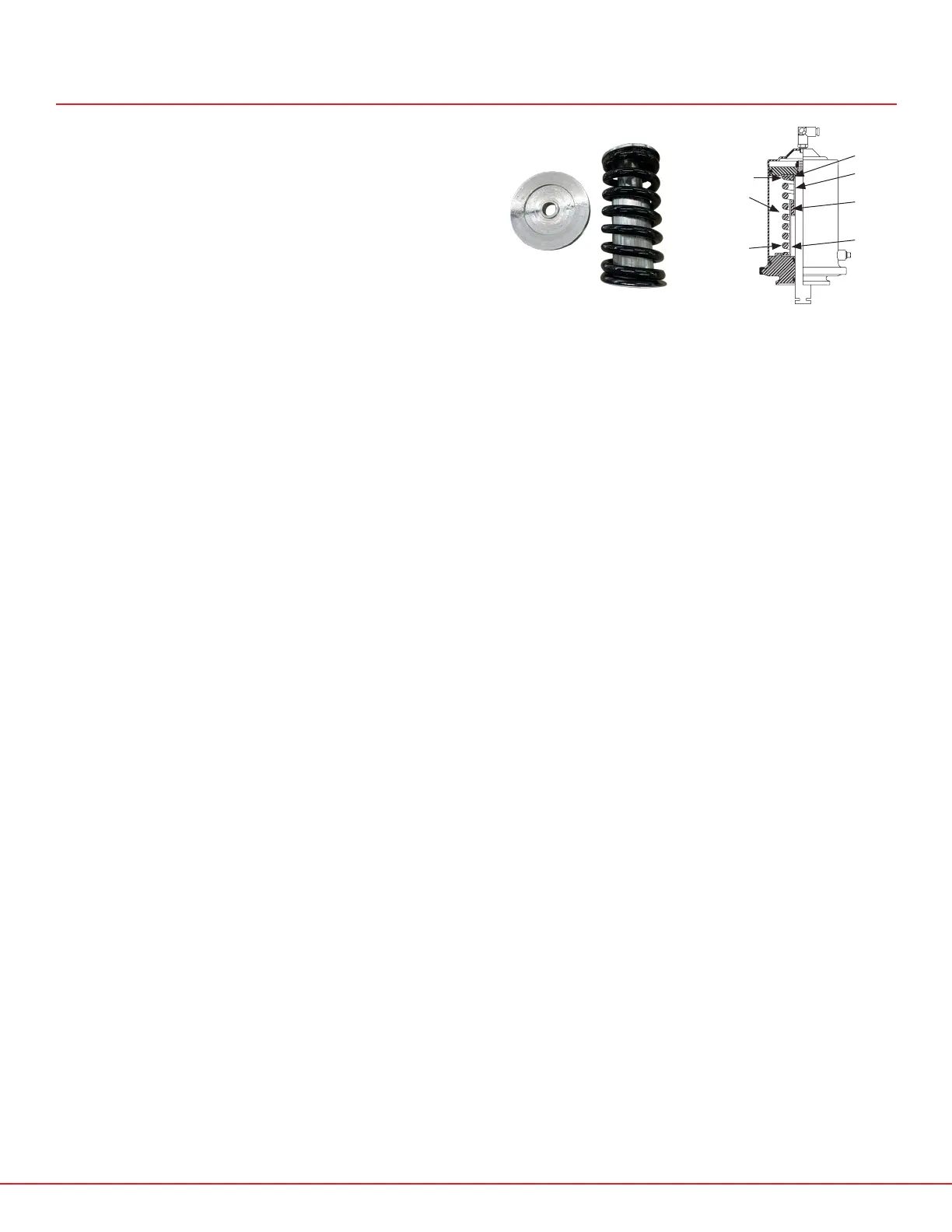

FIG. 36 - ACTUATOR PISTON
“CUP” OR “BORE” WHERE
SPRING ASSEMBLY FITS
NOTE: The spring assembly (see fig. 37) does not
need to be disassembled.
NOTE: Ensure that the bore/cup on the actuator
piston (see fig. 36) fits into the spring’s OD guide
or retaining flange depending on orientation.
FIG. 37 - SP10 ACTUATOR WITH
SPRING ASSEMBLY PARTS
RETAINING
RING
SP10-5R
I.D. GUIDE
SP10-5C
BRASS
BUSHING
SP10-5E
O.D. GUIDE
SP10-5B
RETAINING
FLANGE
SP10-5D
SPRING
AND CAGE
ASSEMBLY
SP10-5
SPRING
SP10-5A
