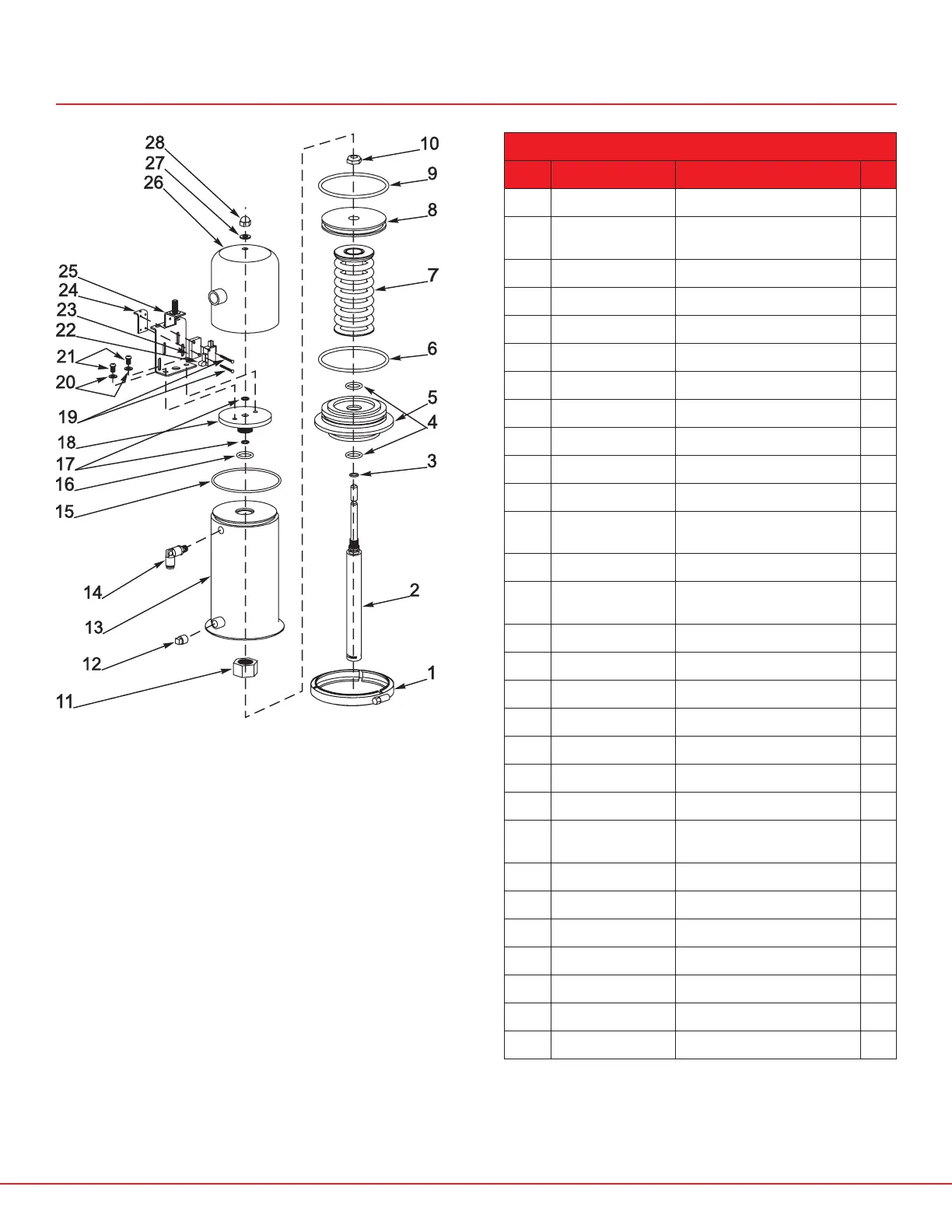

PARTS LIST MICROSWITCH SP10MS/SP10PRX/SP20MS/SP20PRX
SP10MS/SP10PRX/SP20MS/SP20PRX ACTUATORS
ITEM PART NUMBER DESCRIPTION KIT
1 SP13HC-4 Actuator Clamp
2
SP10MS-2D
SP20MS-2D
Actuator Stem
3 SP10-6 Upper Stem O-Ring ▲
4 SP10-7 Lower Stem O-Ring ▲
5 SP10-4 Actuator Foot
6 SP10-9 Foot O-Ring ▲
7 SP10-5 Spring and Cage
8 SP10-2 Piston
9 SP10-8 Piston O-Ring ▲
10 SP10-12 Stem Nut
11 SP10MS-1BN Base Plate Nut
12
SP10-15BV
SP10MS-15BV
1/8” I/P Adapter Plug
13 SP10MS-1 Cylinder
14
SP10MS-14
SP10-14
1/4” Poly-Tube Connector
15 SP10-9 Cover O-Ring
16 SP10-7 Base Plate O-Ring
17 SP10MS-40B Indicator Stem O-Ring
18 SP10MS-1B Base Plate
19 SP10MS-3C Micro-Switch Screw (x2)
20 SP10MS-3K Micro-Switch Washer (x2)
21 SP10MS-3L MS Bracket Screw (x2)
22
SP10MS-3B
SP20-DPS
Micro-Switch (x2)
Dual Prox Switch (x2)
23 SP10MS-3A MS Mounting Block
24 SP10MS-3D MS Adjusting Bracket
25 SP10MS-3 Micro-Switch Bracket
26 SP10MS-1A Micro-Switch Housing
27 SP10MS-1CW MS Housing Washer
28 SP10MS-1C Acorn Nut
** SP20PS-PD Prox Switch Indicator
▲ INCLUDED IN SP20-SK ACTUATOR SERVICE KIT
** ITEM NOT SHOWN
