5.1 RECOMMENDED METODS OF OPERATION

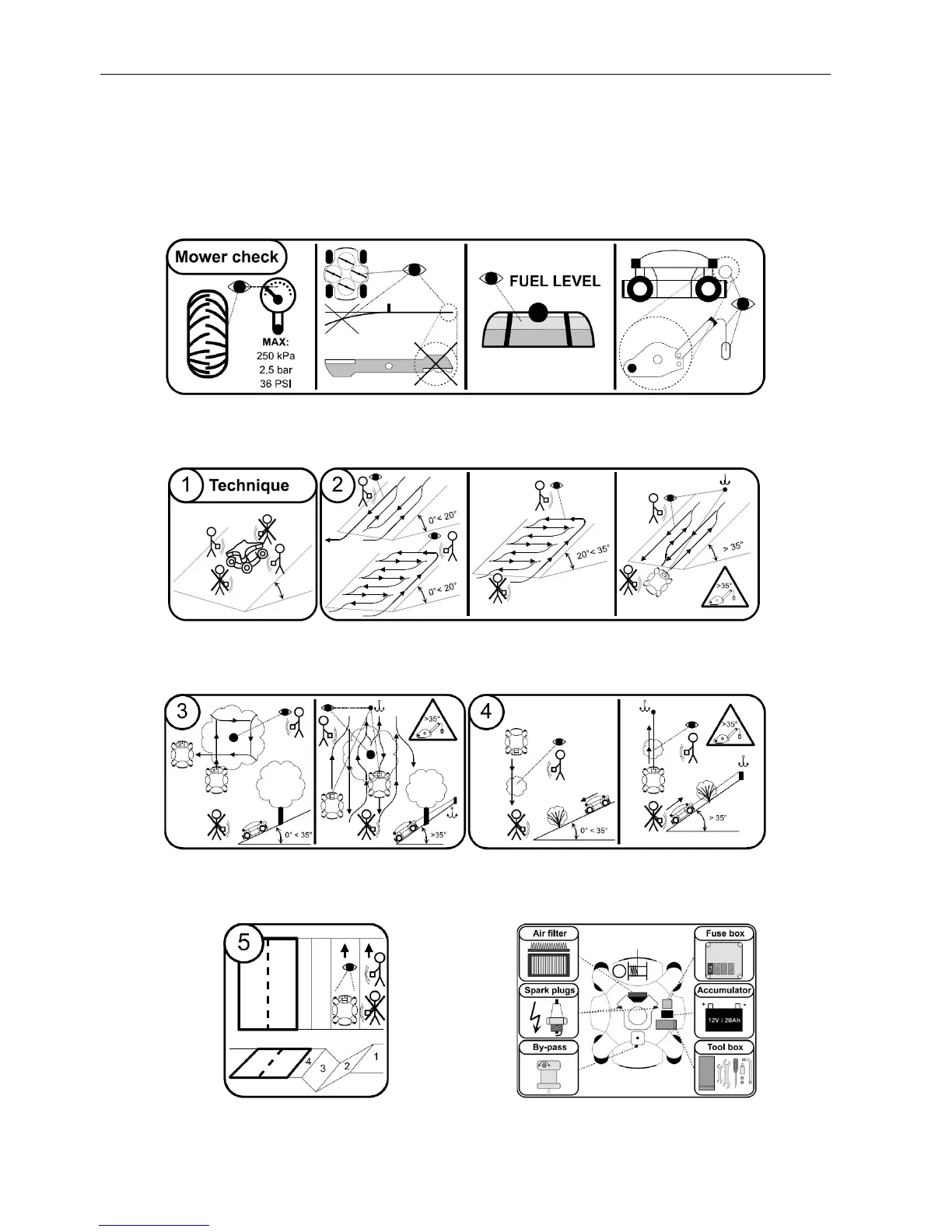

This chart shows basic information about recommended methods of cutting grass in various types of terrain. It
also describes the correct procedure of anchoring the hydrostatic stabilizing winch. However current terrain and
climatic conditions may require different methods of operation than those shown in this chart. The operator is
always responsible for choosing the most suitable method of operation especially with regards to safety. In any
case it is always absolutely necessary to comply with all safety instructions listed in this Manual.
Chart of recommended methods of operation is placed together with the basic set of tools on the machine. See
chapter 11.24 Tools.
Always keep the tyres inflated to
the recommended pressure.
Other values may unfavourably
influence the driving
characteristics. Maximum
pressure – 250kPa/2,5bar/36PSI
Check the blades. Blades must be
properly tightened. Blades must
not be bent and the edges must
not be damaged.
Check the overall condition of
the winch. The rope and the
snap hook must not be
damaged.
On slopes never enter the area
below or directly above the
machine.
Recommended method of cutting
on slopes up to 20 degrees
provided the operator is well
acquainted with the terrain and
there is no risk of tipping the
machine over.
Recommended method of cutting
on slopes up to 35 degrees
provided the operator is well
acquainted with the terrain and
there is no risk of tipping the
machine over.
On slopes exceeding 35
degrees always use the
stabilizing winch. On slopes
never enter the area below or
directly above the machine.
Recommended method of cutting
around trees on slopes up to 35
degrees.
Recommended method of cutting
around trees on slopes exceeding
35 degrees. On slopes exceeding
35 degrees always use the
stabilizing winch.
Recommended method of cutting
bushes on slopes up to 35
degrees.
Recommended method of
cutting bushes on slopes
exceeding 35 degrees. On
slopes exceeding 35 degrees
always use the stabilizing
winch.
Recommended method of cutting along roads. Never enter the area
below or directly above the machine. Danger of getting injured by
objects thrown by the blades. Carefully check the terrain in front of the
mower.
Position of important components on the machine (air filter, spark
plugs, hydraulic by-pass allowing the disengagement of hydraulics
and consequent towing of the machine, fuse box, battery, tools)
