Operator Manual - Spider ILD02 SG
23 / 51 rev. 01-01-04-2011

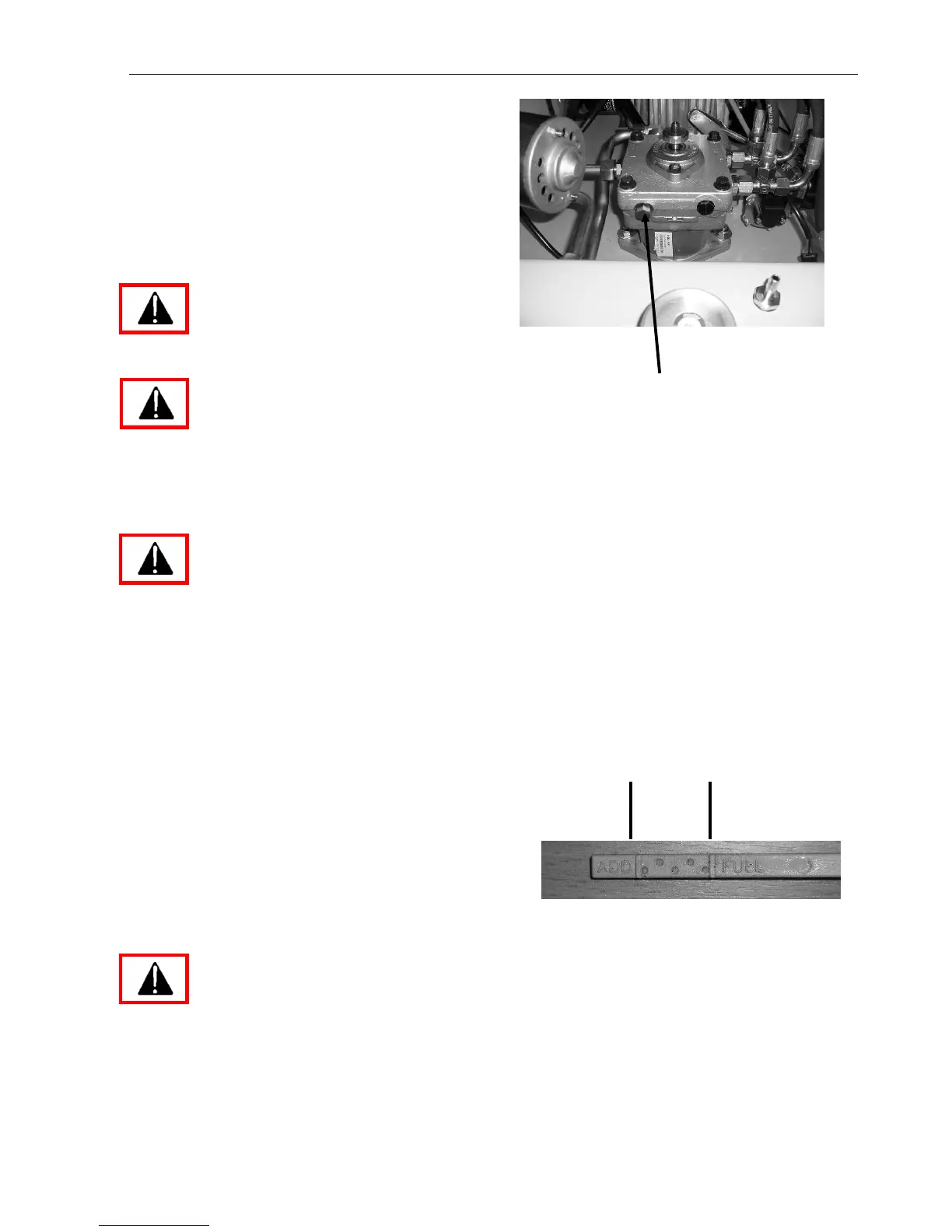

9.2 HYDRAULIC PUMP BY-PASS
The By-pass is used to disable the hydraulic drive
and to engage the oil bypass for manual handling
(engine not running) of the machine on flat surfaces.
The by-pass should only be used when the hydraulic
drive is not functional. For normal hydraulic drive it is
necessary to have the bolt on the pump tightened.
For manual handling loosen this bolt by two
revolutions.
Before starting, check the bolt tightness. If
loose, it will disable the hydraulic drive.
Insufficient tightening may result in
undesirable behaviour of the mower on
slopes. It may uncontrollably drive down
a slope
9.3 CHECKING ENGINE OIL LEVEL
Attention! Before checking or refilling oil stop the
engine and let it cool down.
The oil level of the machine standing on a level surface must
be between the limit marks on the dipstick (see the engine
user’s manual). Check oil according to the engine user’s
manual as follows:
1) Place the machine on a level surface.
2) Remove the upper body
3) Unscrew the dipstick and wipe off oil.
4) Without screwing inset the dipstick back into the filler
as far as you can.
5) If the oil level is close or under the lower limit mark
(ADD), fill with recommended oil up to the upper limit
mark (FULL).
6) Refit the dipstick.
NOTICE:
Running the engine with insufficient oil may cause
serious damage to the engine.
Check the engine oil level on a level surface and
only when the engine is off. Use only oil
recommended by the engine manufacturer.
