Operator Manual - Spider ILD02 SG
20 / 51 rev. 01-01-04-2011

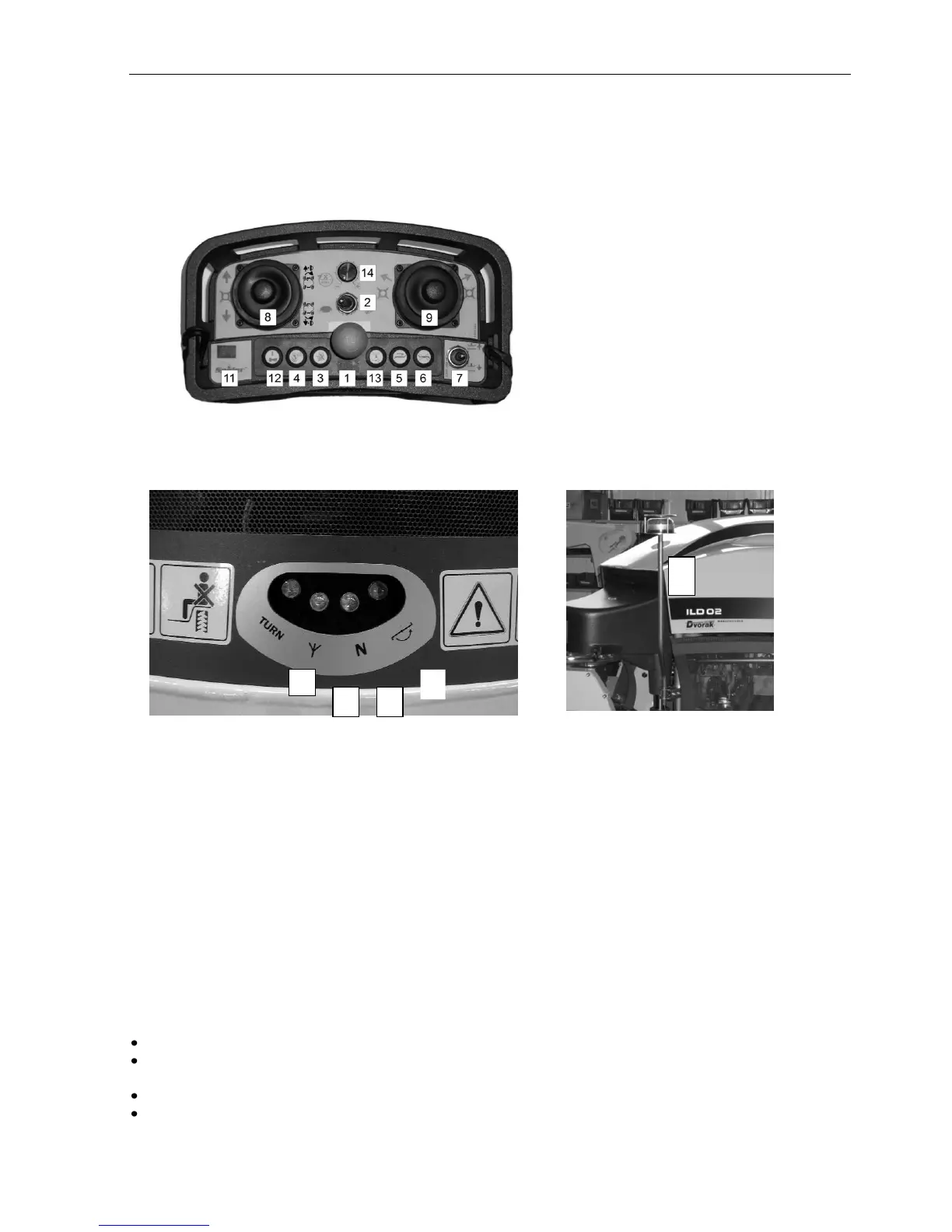

7 DISPLAYS
7.1 NBB RADIO CONTROLLED DISPLAYS
Indicator (11) flashes – RC power ON indicator
Radio control emits a high pitch tone - RC battery low voltage warning
7.2 MOWER DISPLAYS
1. Power indicator 5. Beacon
2. Signal reception
3. Neutral
4. Blade
On the side cover of the mower there are a number of warning and indicating LEDs.
These displays signal the following states:
1. Power indicator: Illuminated green when the EMERGENCY STOP button on the top of the mower is
unlocked
2. Signal reception: Illuminated green when the radio link between the RC and the receiver is established
and correct
3. Neutral: Illuminated green when the transmission is in the neutral position
4. Blade: Illuminated red when the blades are engaged.
5. Beacon: flashing when the EMERGENCY STOP button on the top of the mower is unlocked
After the power supply is turned on, indicator lamp 1 will be illuminated
After turning on RC and establishing communication between the RC and the machine lamp 2 flashes. If
there is a break in communication, lamp 2 dims.
Lamp 3 is illuminated when the drive servomotor is in a neutral position.
Lamp 4 is illuminated while the blades are engaged. The mower cannot be started while this lamp is
illuminated.
