11.10 FINAL GEAR DRIVE TO WHEELS
If you do not possess necessary equipment and skills,
have this work performed by an authorized
service/dealer.

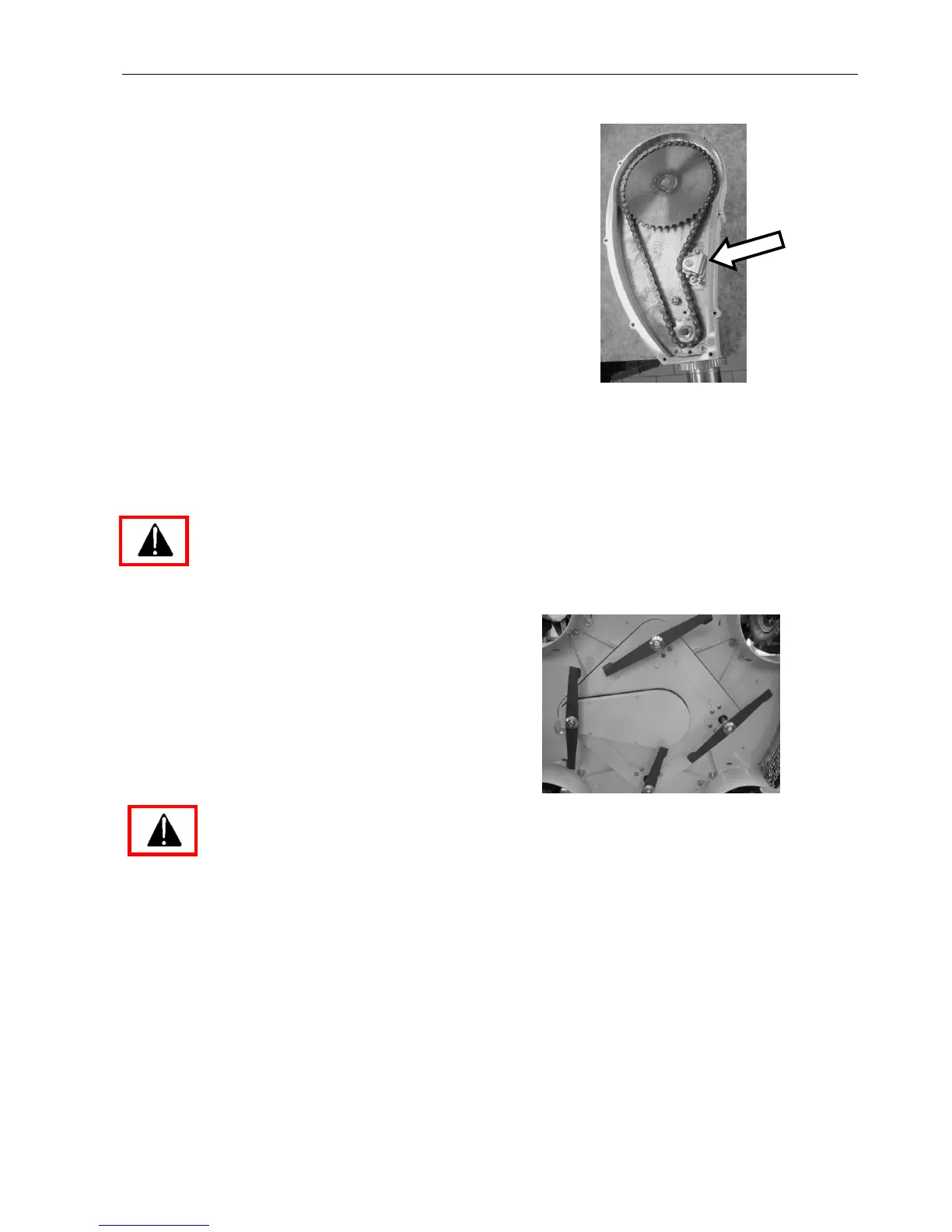

Remove the cover of the final gear drive. The cover is
attached by bolts onto the sides. Adjust the chain
tensioner C so the chain is properly tensioned. The
tensioner can be shifted after loosening the fastening
screws (see the figure). To tighten the chain, slightly
unscrew the thrust bolt.
Do not tension the chain excessively. This could
reduce the durability of the chain and the bearing.
Lubricate the chain by spraying it with lubricating oil.
.
11.11 MAINTAINING ELECTRIC CIRCUITS
AND DEVICES, TRANSMITTER
Keep all parts of electric circuits clean, especially from
oil products, dust sediments and dry grass.
Replace conductors with damaged insulation. For
replacement use only original conductors supplied by
the manufacturer.
NOTICE:
Repairing of electric circuit should only be
performed by an approved dealer.
11.12 ADJUSTING BLADE DECELERATION
The electromagnetic clutch is placed under the
clutch cover above the rotary blades. The clutch
was adjusted by the manufacturer. When engaged
the clutch transmits power onto the blades, when
disengaged the brake stops the rotating blades.
Do not change the clutch setting. If damage on this
part of the machine should occur, always leave the
repairing to an approved dealer. The maximum
rundown time of the rotary blade was set to 5
seconds.
NOTICE:
After finishing any work on the electro-
magnetic clutch, the cover must be
returned to its original place and
properly sealed to prevent the clutch
from getting dirty.
