Operator Manual - Spider ILD02 SG
38 / 51 rev. 01-01-04-2011

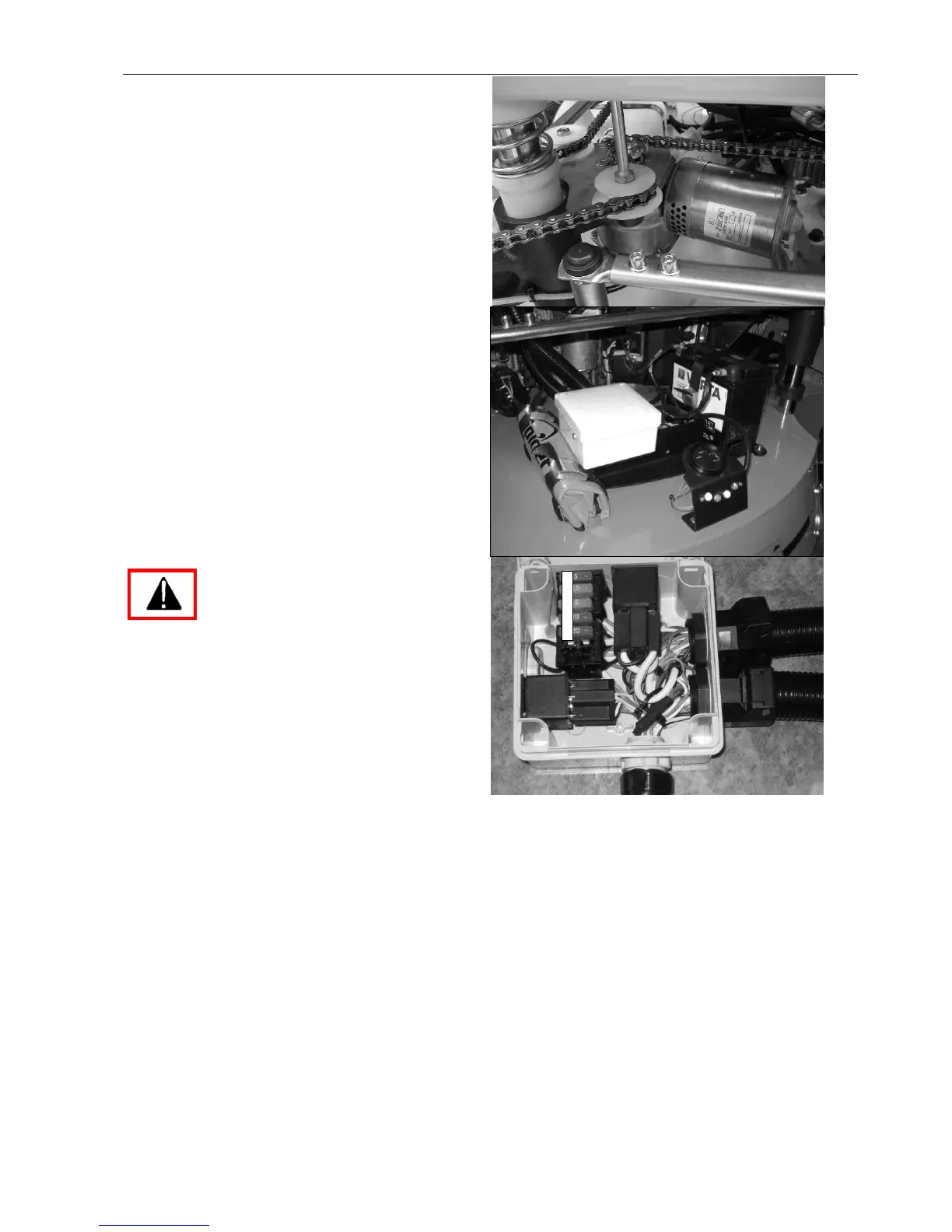

11.13 CHAINS
STEERING CHAIN
Check the wear and tension of the chain and the
tensioning devices. The chain can by tightened by
rotating the steering motor bracket after loosening
two attachments bolts (see the figure).
11.14 FUSES
The fuse box is placed in the space next to
the battery. Inside the fuse box you can find
fuses for individual circuits.
1. 5A control panel, skid steering valve
2, 3. 2x 15A battery charging
4, 5. 2 x 20A parallel protection of the
main circuit
When changing fuses follow the
electric current value for which
the fuses are designed. Do not
replace damaged fuses with
fuses with a higher or lower electric current
value. These could cause damage or even a
fire in the mower!
