IM-P337- 6 9 EMM Issue 2
16
Maximum 45º
Filling plug
Hose connector
Maximum 45º
Fig. 8
Fig. 9
Fig. 10

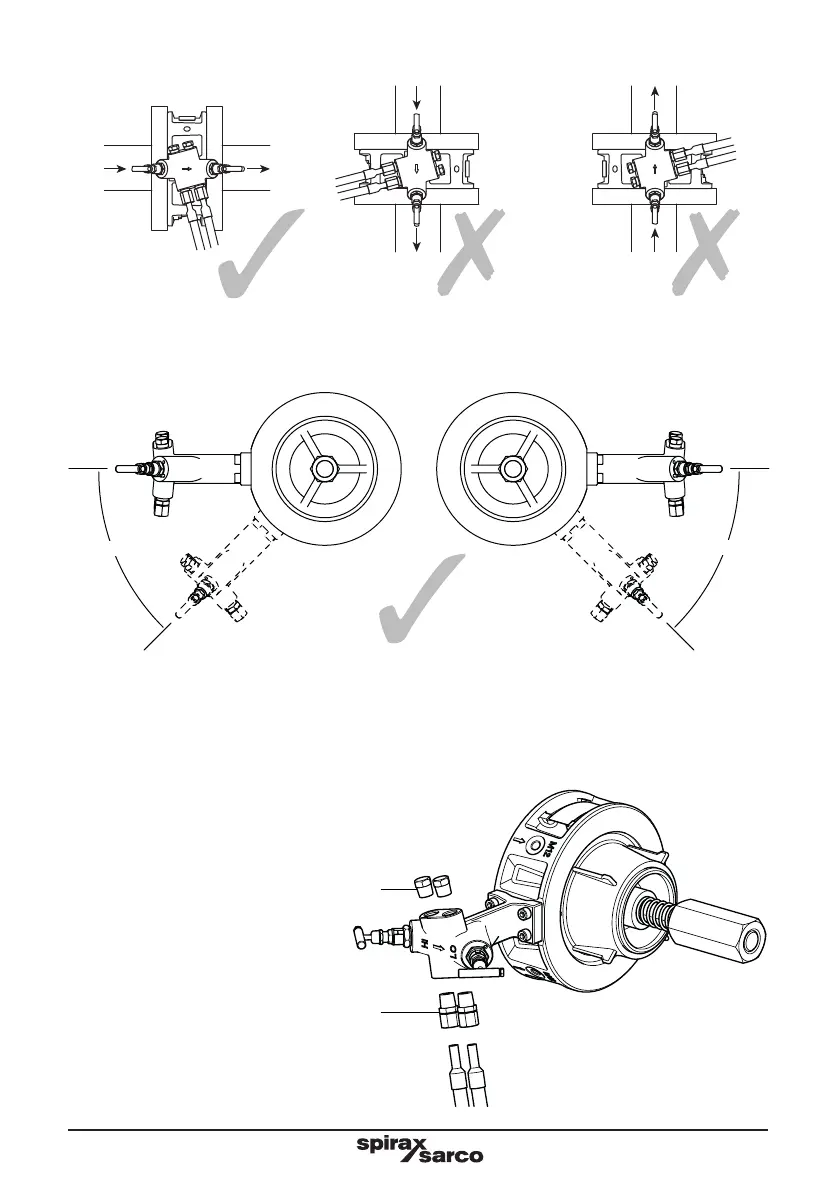

The ILVA20 must be installed into a horizontal line only.
The ILVA20 can be rotated in a horizontal line by up to 45° (downwards only), see Figure 9.
The filling and hose connector plugs are supplied loose and
thus need to be fitted to suit the orientation of the 2 way
manifold.
The hose connectors need to be fitted to allow for draining
downwards. The filling plugs must then be used on the
opposite or upwards side to plug the remaining holes.
