Disconnect device conforming to IEC 60947-1 and IEC 60947-3
1
2
1
2
L
N
L1
L2
3 A fuse
Product
Product
3 A fuses
Fig. 13
Fig. 14
Disconnect device conforming to IEC 60947-1 and IEC 60947-3
5.2 Mains wiring notes:
1. Read Section 5.1 - 'General wiring notes', before attempting to wire the supply to the
product.
2. The wiring connections are identified on the terminal plugs.

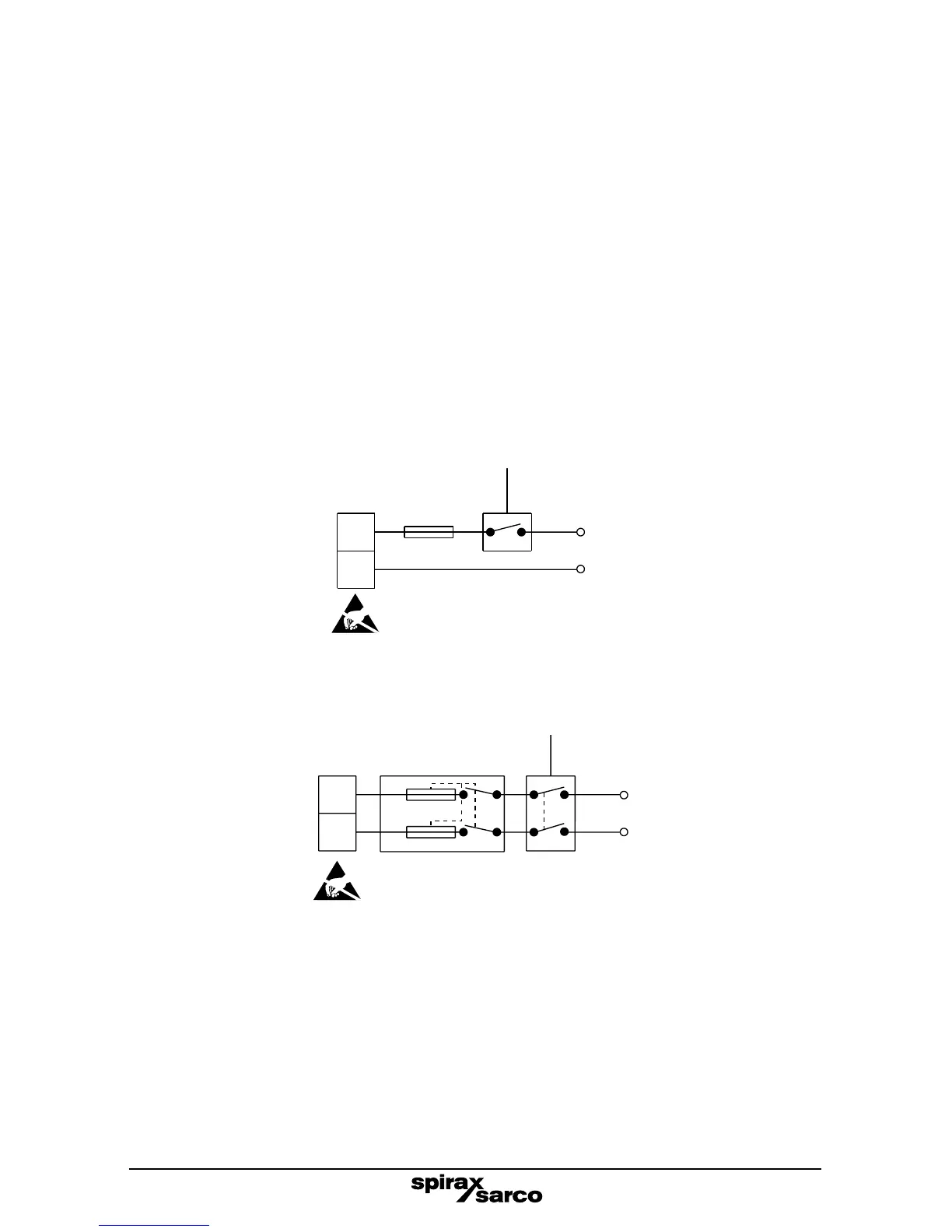

3. Fuses should be fitted in all live conductors, see Figures 13 and 14.
4. Double or reinforced insulation must be maintained between:
-
Hazardous live conductors (mains and relay circuits) and
-
Safety extra low voltages (All other components / connectors / conductors).
5. The wiring diagrams show relays and switches in the Power off position.
