IM-P343-37 CTLS Issue 4
12
start of text under grey section header box
start of text continuing from previous page
TRANSLATION RUN OVER
SP400 Electropneumatic Smart Positioner
5. 2.1
Loosely attach the magnet bracket (2) to
the valve/actuator connector (refer to
Figures 4 and 5). Be sure it is positioned
horizontally (as shown in Figure 5).

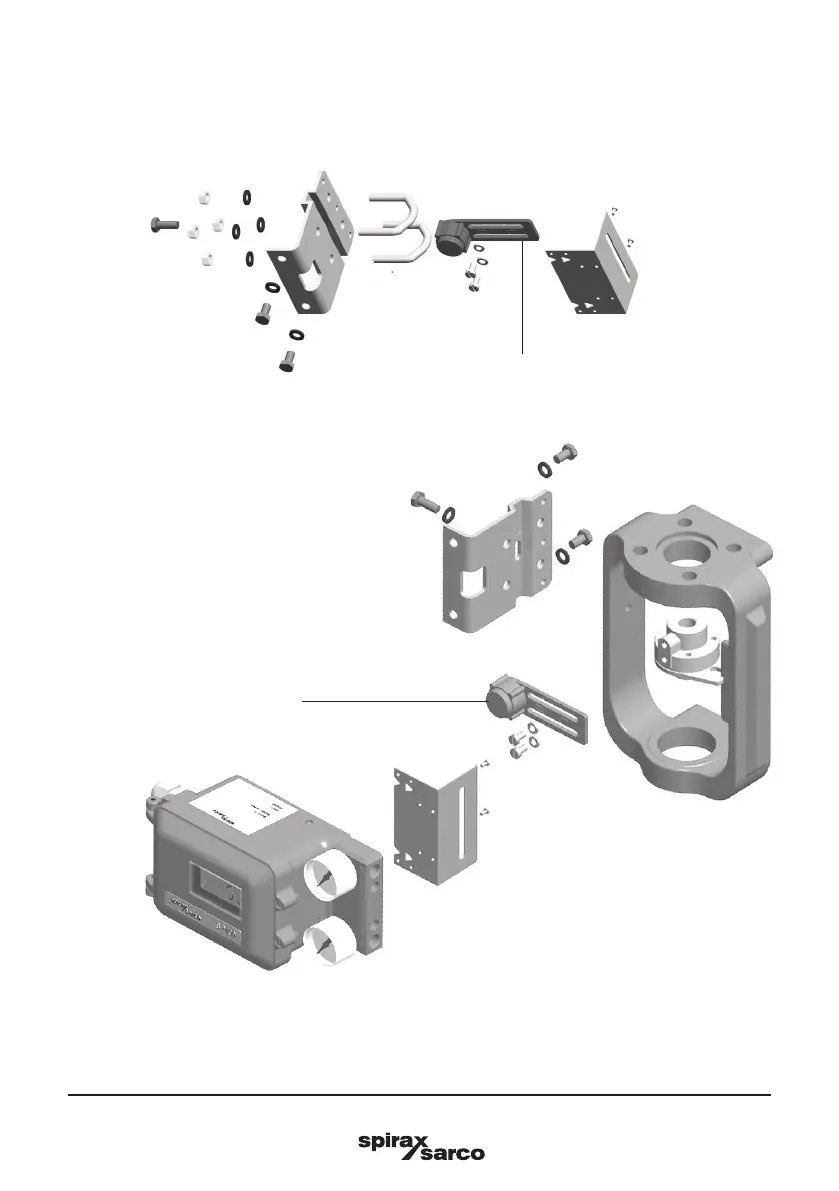

Fig.4 Pillar mounting kit for a linear actuator
Fig. 5 Yoke mounting assembly for a linear actuator
5.2 Sequence for mounting an SP400 positioner to a
linear actuator
2
2
