Spirax Sarco SP400 - Page 13

IM-P343-37 CTLS Issue 4
13
SP400 Electropneumatic Smart Positioner
5.2.2

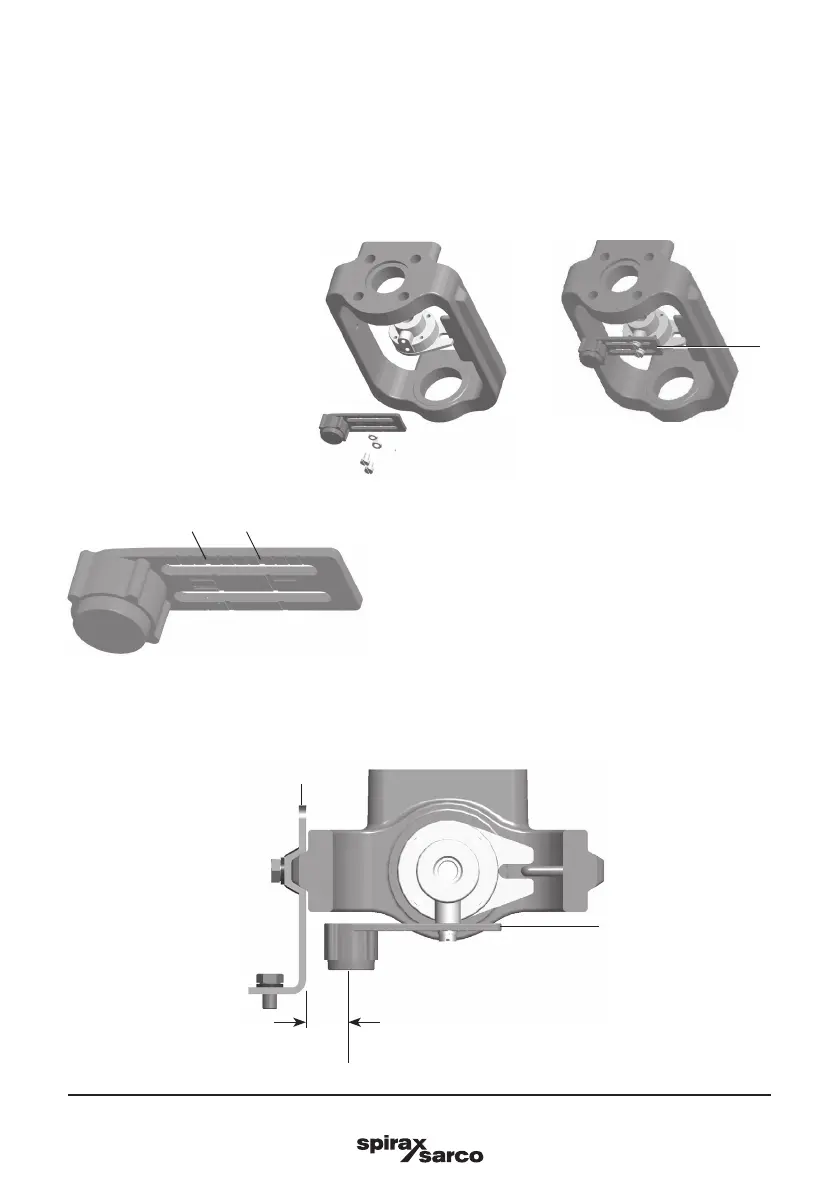

Slide the bracket (2) to the left or to the right (Figure 6) till the correct position is achieved. If you’re
using a Spirax Sarco actuator the correct position is impressed on the magnet bracket (Figure 7).
5.2.3
If you’re not using a Spirax Sarco actuator, slide the bracket till the distance 'A' between the center
of the magnet and the inner side of the mounting plate is 25 mm (Figure 8).
Fig. 8
A
Distance between the mounting plate and magnet
Fig. 7 Bracket markings
Assembled
2
Mounting plate
Bracket
Center of the magnet
PN1000PN9000
Fig. 6
