SP400 Electropneumatic Smart Positioner
5.2.4
Loosely attach the positioner mounting plate to the actuator as shown in the following pictures: for
the pillar actuator (Figure 9), and for the yoke actuator (Figure 10).
5.2.5
Locate the protection plate onto the back of the SP400 positioner housing and x in place (Figures
11 and 12).

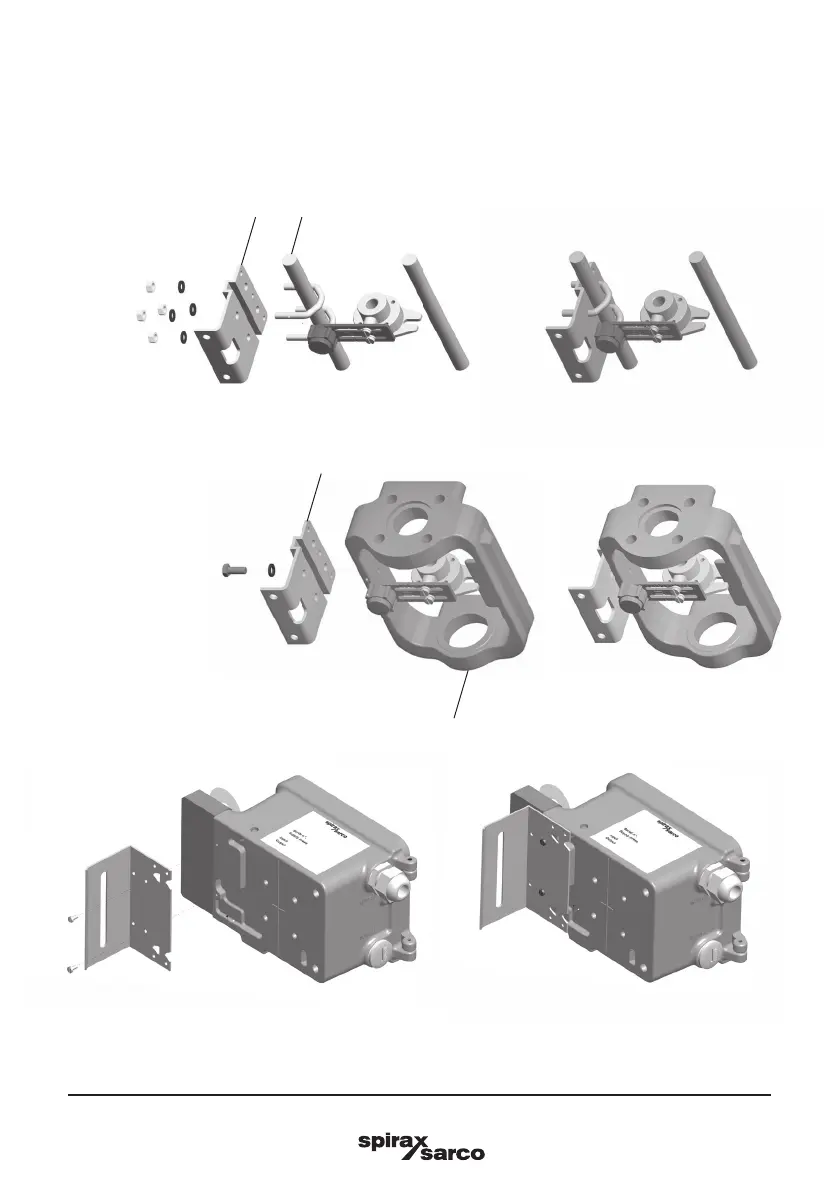

Fig. 9 Pillar actuator assembly
Pillar actuatorMounting plate
Fig. 10 Yoke actuator assembly
Yoke ac tuator
Mounting plate
Protection
plate
Fig. 11
Assembled
Assembled
Assembled
Fig. 12
