Spirax Sarco SP7-20 - Mounting on a Columnar Yoke; Securing Mount Bracket to Columnar Yoke

IM-P706-03 CTLS Issue 1
16
SP7-20 Smart Positioner
3.1.6 Mounting on a columnar yoke

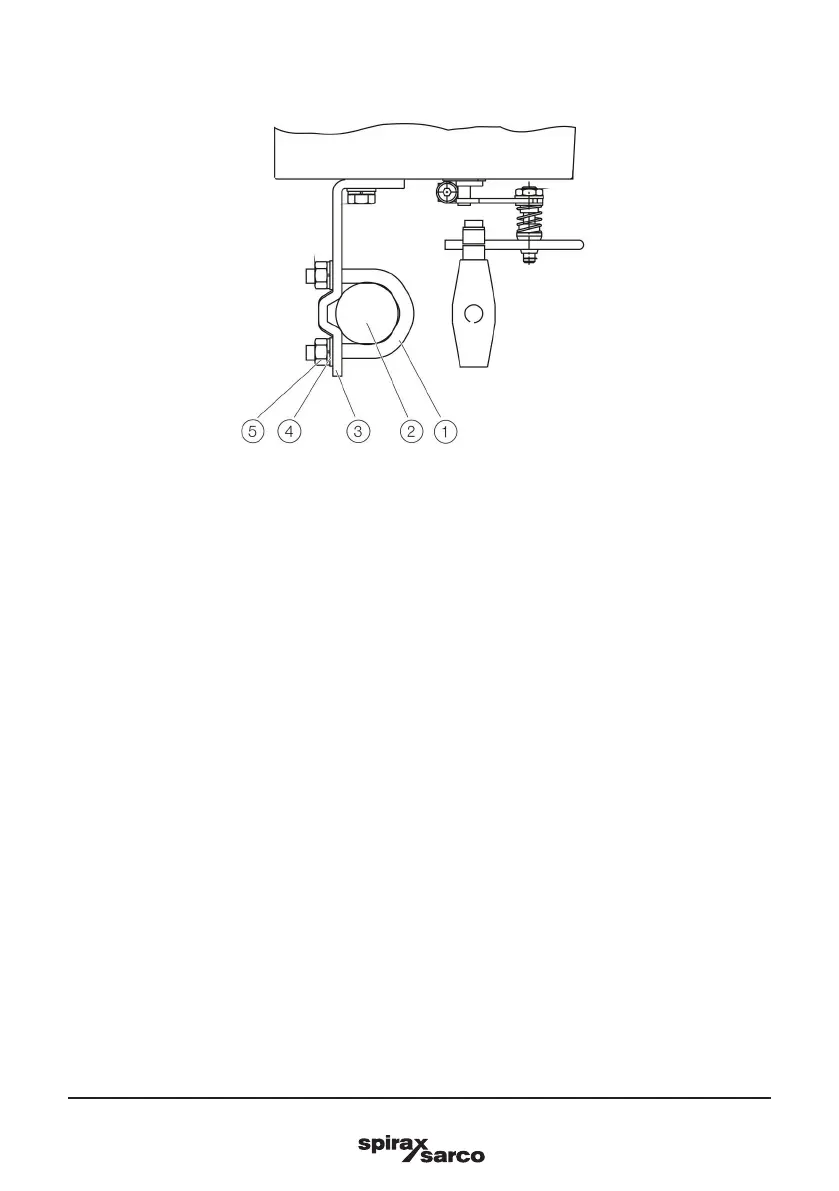

Fig. 8
1. Hold the mount bracket (3) in the proper position on the columnar yoke (2).
2. Insert the U-bolts (1) from the inside of the columnar yoke (2) through the holes of the mount bracket.
3. Add the washers (4) and nuts (5).
4. Tighten the nuts so that they are hand-tight.
Notes:
-
Adjust the height of the positioner on the cast iron yoke or columnar yoke until the lever is horizontal
(based on a visual check) at half stroke of the valve.
-
Items 1, 4 and 5 to be ordered separately
