SP7-20 Smart Positioner
2.1 Introduction
The SP7 is an electronically configurable positioner with communication capabilities designed for mounting on
pneumatic linear or rotary actuators. It features a small and compact design, a modular construction, and an
excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to
the positioner allow for considerable time savings as well as optimum control behaviour. The positioner has a
built-in LCD indicator with a multi-line LCD display and 4 operating buttons for commissioning, configuration,
and monitoring during live operation. Alternatively, the appropriate DTM/EDD can be used via the available
communication interface. The positioner supports HART5 and HART7 communication. In addition to its
input for the analogue position set-point, the positioner is equipped with a digital input which can be used to
activate a control system functions in the device.
2.2 Label description
-
Order-Code
-
Serial no.
-
HW-Rev.
-
SW-Rev.
-
DOM
-
Special Request
-
Supply press.
-
Input
-
Output
-
Safe position

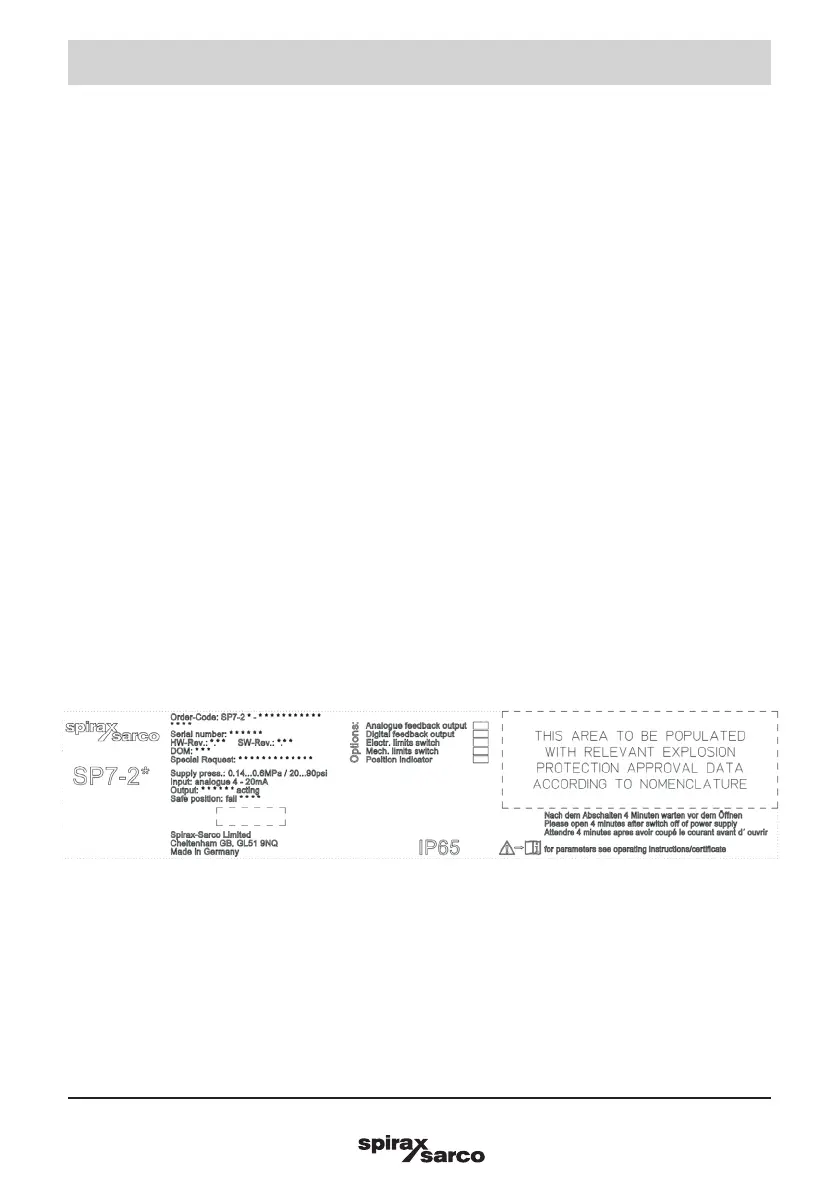

Label example
2. General product information
Options:
-
Analogue feedback output
-
Digital feedback output
-
Electr. limits switch
-
Mech. limits switch
-
Position indicator
-
Approvals
