VLM30 In-Line Vortex Flowmeter

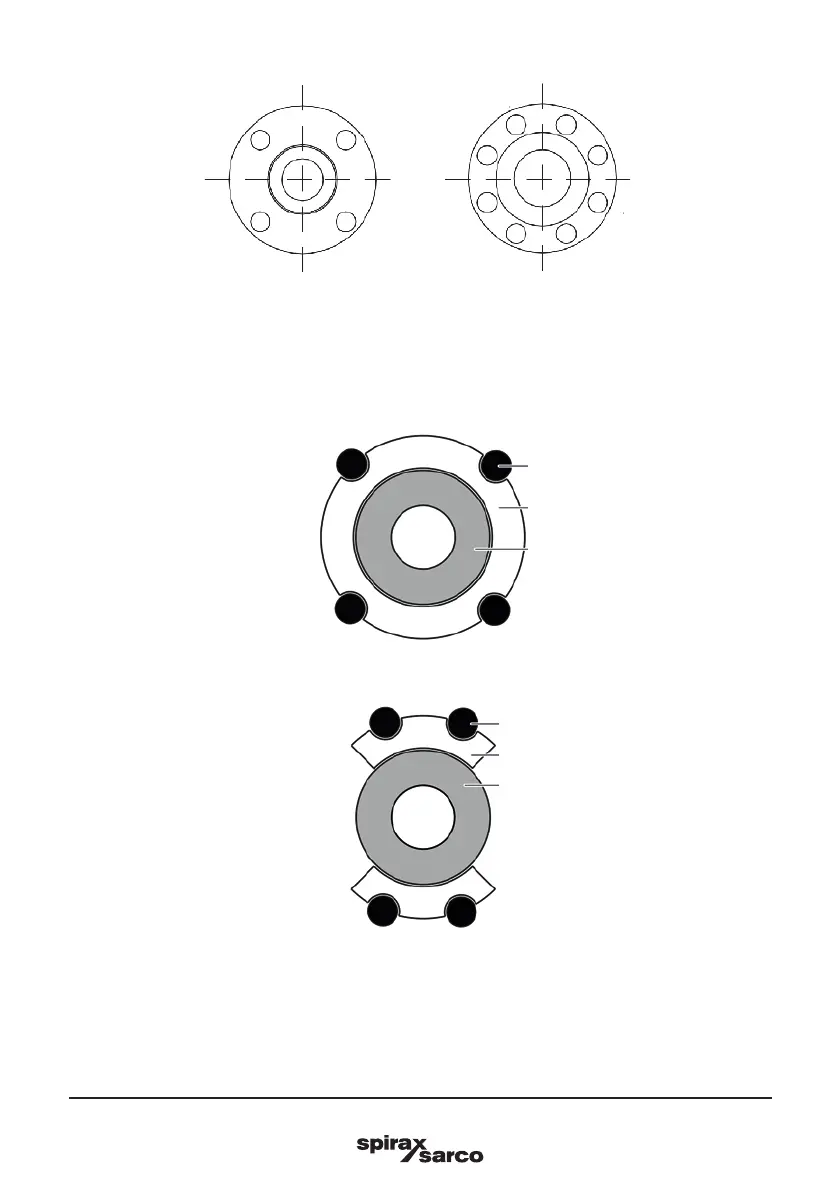

Fig. 14 Tightening sequence for the flange screws

3.10 Centering the wafer type design

Fig. 15 Centering the wafer type design with the ring or segment

Bolt

Centering ring

Meter tube (wafer type)

Bolt

Centering segment

Meter tube (wafer type)

1 3

4 2

1 5

6 2

8 3

4 7
