IM-P736-02 EMM Issue 3
32
VLM30 In-Line Vortex Flowmeter
3.11 Adjusting the transmitter position
NOTE
Damage to components!
- The transmitter housing must not be lifted without pulling out the cable, otherwise the
cable can tear off.
- The transmitter housing must not be rotated more than 360 degrees.
-
Loosen the locking screw on the transmitter housing using a 4 mm Allen key.
-
Rotate the transmitter housing in the direction required.
-
Tighten the locking screw.

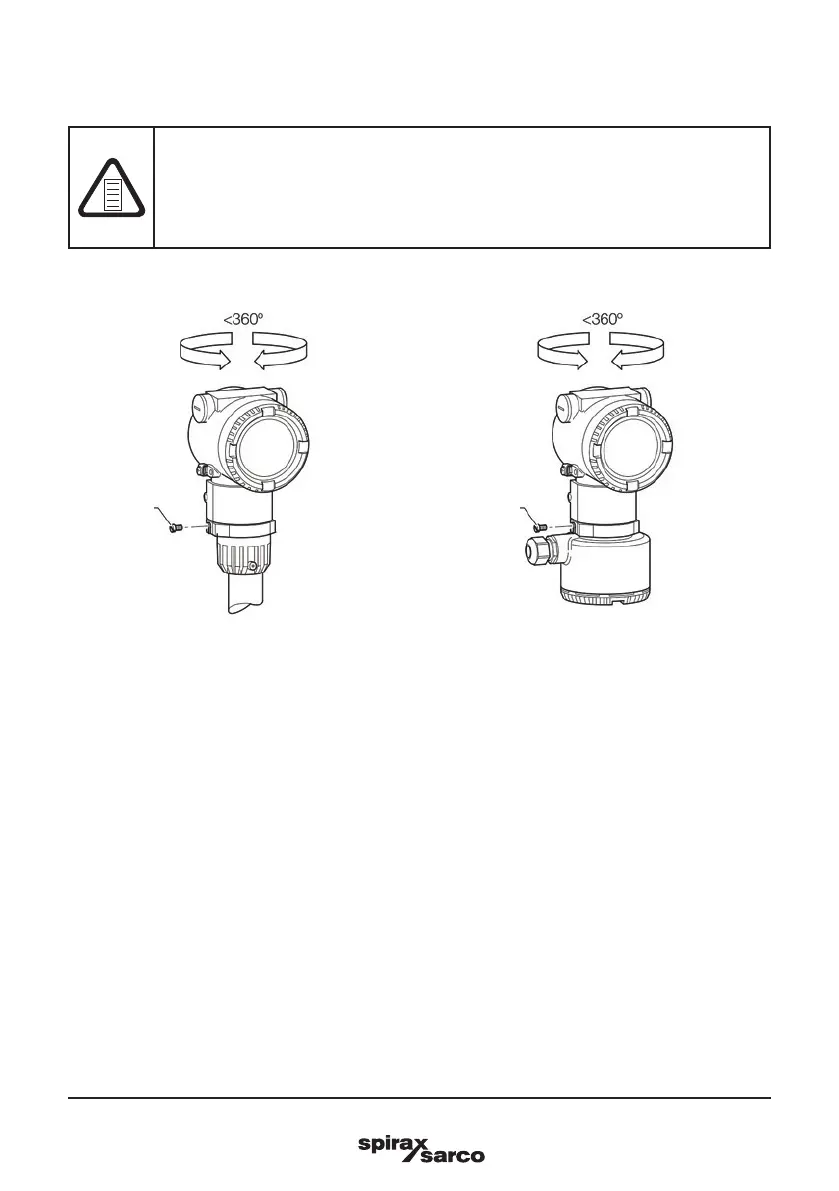

Fig. 16 Rotating the transmitter housing
Locking screw Locking screw
