Par ts Ma nual 6740 Har vest er
Part #: 290360
Revision: 5/24/2022
95
Section-3 Parts Manual
-----·-
SPUDNIK

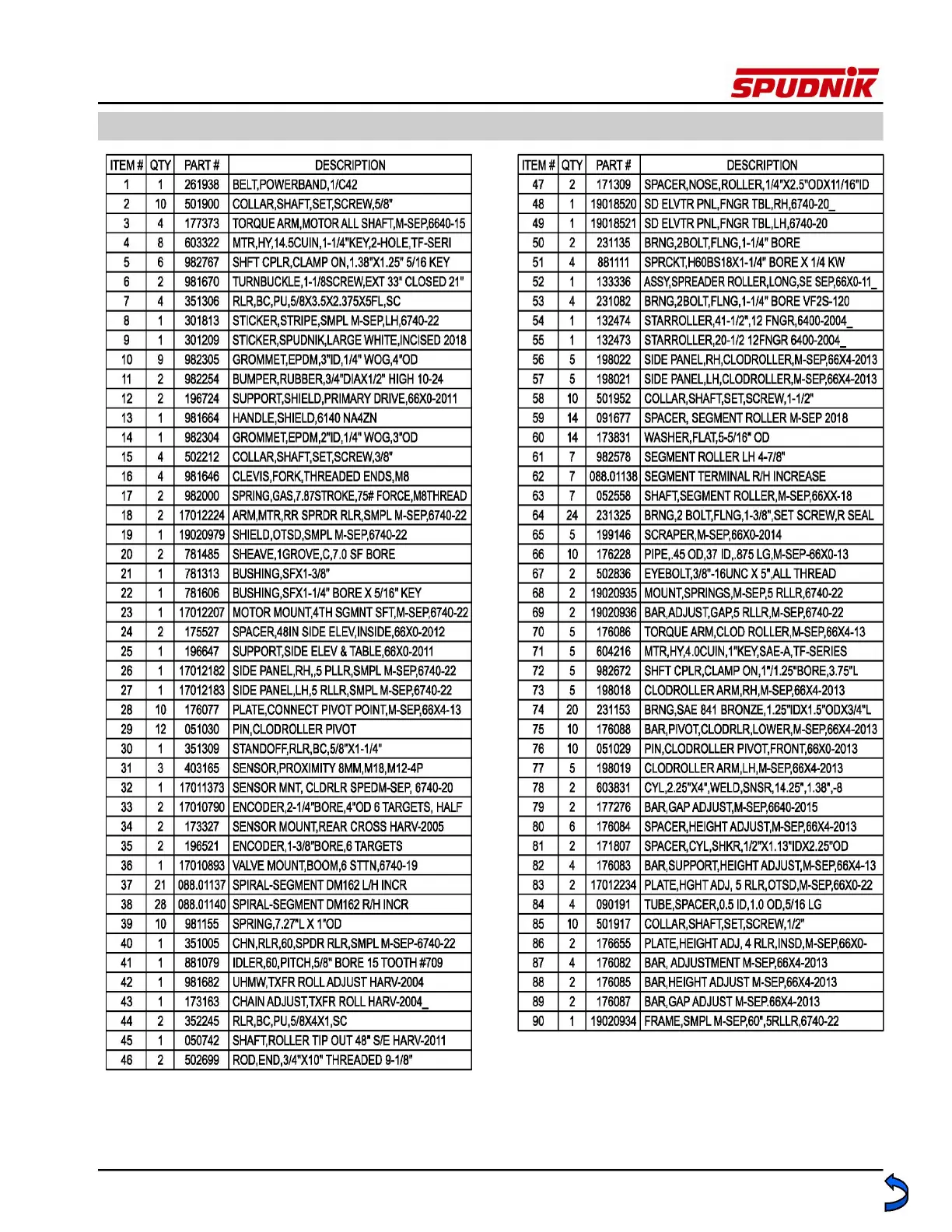

ITEM# QTY PART# DESCRIPTION ITEM# QTY PART# DESCRIPTION
1 1 261938 BELT,POWERBAND, 1/C42
47
2 171309 SPACER, NOSE, ROLLER, 1/4"X2.5"0DX11/16"1D
2 10 501900 COLLAR,SHAFT,SET,SCREW,5/8" 48 1 19018520 SD ELVTR PNL,FNGR TBL,RH,6740-20
3
4
177373 TORQUE ARM, MOTOR ALL SHAFT,M-SEP,6640-15 49 1 19018521 SD ELVTR PNL,FNGR TBL,LH,6740-20
4
8
603322 MTR,HY, 14 . 5CUIN, 1-1/4"KEY,2-HOLE,TF-SERI
50
2 231135 BRNG,2BOLT,FLNG, 1-1/4" BORE
5 6 982767
SHFT CPLR,CLAMP ON, 1 .38"X1 . 25" 5/16 KEY
51
4
881111
SPRCKT,H60BS18X1-1/4" BORE X 1/4 KW
6 2 981670 TURNBUCKLE, 1-1/8SCREW,EXT 33" CLOSED 21" 52 1 133336
ASSY,SPREADER ROLLER,LONG,SE SEP,66X0-11_
7 4 351306
RLR,BC,PU,5/8X3.5X2.375X5FL,SC
53 4 231082
BRNG,2BOLT,FLNG,1-1/4" BORE VF2S-120
8 1 301813 STICKER,STRIPE,SMPL M-5EP,LH,6740-22 54 1 132474
STARROLLER,41-1/2', 12 FNGR,6400-2004
9 1 301209
STICKER,SPUDNIK,LARGE WHITE, INCISED 2018
55 1 132473 STARROLLER,20-1/212FNGR 6400-2004_
10 9 982305 GROMMET,EPDM,3"1D, 1/4" WOG,4"0D 56 5 198022
SIDE PANEL,RH,CLODROLLER,M-SEP,66X4-2013
11 2 982254
BUMPER,RUBBER,3/4"DIAX1/2" HIGH 10-24
57 5 198021
SIDE PANEL,LH,CLODROLLER,M-SEP,66X4-2013
12 2 196724
SUPPORT,SHIELD,PRIMARY DRIVE,BBX0-2011
58 10 501952 COLLAR,SHAFT,SET,SCREW, 1-1/2"
13 1 981664 HANDLE,SHIELD,6140 NA4ZN 59 14 091677 SPACER, SEGMENT ROLLER M-SEP 2018
14 1 982304 GROMMET,EPDM,2"1D, 1/4" WOG,3"0D 60 14 173831 WASHER,FLAT,5-5/16' OD
15 4 502212 COLLAR,SHAFT,SET,SCREW,3/8" 61 7 982578 SEGMENT ROLLER LH 4-7/8"
16 4 981646 CLEVIS,FORK,THREADED ENDS,M8 62 7 088.01138 SEGMENT TERMINAL RIH INCREASE
17 2 982000 SPRING,GAS,7.87STROKE,75# FORCE,M8THREAD 63 7 052558 SHAFT,SEGMENT ROLLER,M-SEP , 66XX-18
18 2 17012224 ARM,MTR,RR SPRDR RLR,SMPL M-SEP,6740-22 64 24 231325 BRNG,2 BOLT,FLNG,1-3/8",SET SCREW,R SEAL
19
1
19020979 SHIELD,OTSD,SMPL M-SEP,6740-22 65 5 199146 SCRAPER,M-SEP,BBX0-2014
20 2 781485 SHEAVE,1GROVE,C,7 .0 SF BORE 66 10 176228 PIPE,.45 OD,37 ID, . 875 LG,M-SEP.Q6X0-13
21 1 781313 BUSHING,SFX1-3/8" 67 2 502836 EYEBOLT,3/8"-16UNC X 5",ALL THREAD
22 1 781606 BUSHING,SFX1-1/4" BORE X 5/16" KEY 68 2 19020935 MOUNT,SPRINGS,M-SEP,5 RLLR,6740-22
23 1 17012207 MOTOR MOUNT,4TH SGMNT SFT,M-SEP,6740-22 69 2 19020936 BAR,ADJUST,GAP,5 RLLR,M-SEP,6740-22
24 2 175527 SPACER,481N SIDE ELEV,INSIDE,66X0-2012 70 5 176086 TORQUE ARM,CLOD ROLLER,M-SEP,66X4-13
25 1 196647 SUPPORT,SIDE ELEV & TABLE,66X0-2011 71 5 604216 MTR,HY,4.0CUIN, 1 "KEY,SAE-A, TF-SERIES
26 1 17012182 SIDE PANEL,RH,5 PLLR,SMPL M-SEP,6740-22 72 5 982672 SHFT CPLR,CLAMP ON, 1'/1 .25"BORE,3.75"L
27 1 17012183 SIDE PANEL,LH,5 RLLR,SMPL M-SEP,6740-22 73 5 198018 CLODROLLER ARM,RH,M-SEP,66X4-2013
28 10 176077 PLATE,CONNECT PIVOT POINT,M-SEP,66X4-13 74 20 231153 BRNG,SAE 841 BRONZE, 1 .25"1DX1 .5"0DX3/4"L
29 12 051030 PIN,CLODROLLER PIVOT 75 10 176088 BAR,PIVOT,CLODRLR,LOWER,M-SEP,66X4-2013
30
1 351309 STANDOFF,RLR,BC,5/8"X1-1/4" 76 10 051029 PIN,CLODROLLER PIVOT,FRONT,66X0-2013
31
3
403165 SENSOR, PROXIMITY 8MM,M1 8,M12-4P 77
5
198019 CLODROLLER ARM,LH,M-SEP,66X4-2013
32 1 17011373 SENSOR MNT, CLDRLR SPEDM-SEP, 6740-20 78 2 603831 CYL,2.25"X4",WELD,SNSR, 14.25', 1.38',-8
33
2 17010790 ENCODER,2-1/4"BORE,4"0D 6 TARGETS, HALF 79 2 177276 BAR, GAP ADJUST,M-SEP,6640-2015
34 2 173327
SENSOR MOUNT, REAR CROSS HARV-2005 80 6
176084 SPACER,HEIGHT ADJUST,M-SEP,66X4-2013
35
2 196521 ENCODER, 1-3/8"BORE,6 TARGETS 81 2 171807
SPACER,CYL,SHKR, 1/2''X1. 13"1DX2.25"0D
36
1 17010893
VALVE MOUNT , BOOM,6 STIN,6740-19
82 4 176083
BAR , SUPPORT,HEIGHT ADJUST,M-SEP,66X4-13
37 21 088.01137
SPIRAL-SEGMENT DM162 LIH INCR 83
2 17012234
PLATE,HGHT ADJ, 5 RLR,OTSD,M-SEP,66X0-22
38
28 088.01140 SPIRAL-SEGMENT DM162 RIH I NCR 84
4
090191 TUBE,SPACER,0 . 51D,1 .0 OD,5/16 LG
39 10 981155
SPRING,7 . 27"LX 1"0D
85 10 501917 COLLAR,SHAFT,SET,SCREW, 1/2"
40 1 351005
CHN,RLR , 60,SPDR RLR,SMPL M-SEP-6740-22
86 2 176655
PLATE, HEIGHT ADJ, 4 RLR,INSD,M-SEP,66XO-
41 1 881079 IDLER,60,PITCH,5/8" BORE 15 TOOTH #709 87 4 176082
BAR , ADJUSTMENT M-SEP,66X4-2013
42 1 981682
UHMW,TXFR ROLL ADJUST HARV-2004
88 2 176085
BAR, HEIGHT ADJUST M-SEP,66X4-2013
43 1 173163
CHAIN ADJUST,TXFR ROLL HARV-2004
89 2 176087
BAR, GAP ADJUST M-SEP . 66X4-2013
44 2 352245
RLR,BC,PU,5/8X4X1 ,SC
90 1 19020934
FRAME,SMPL M-SEP,60",5RLLR,6740-22
45 1 050742 SHAFT, ROLLER TIP OUT 48" S/E HARV-2011
46 2 502699 ROD,END,3/4"X10" THREADED 9-1/8"
