6. Electronic module

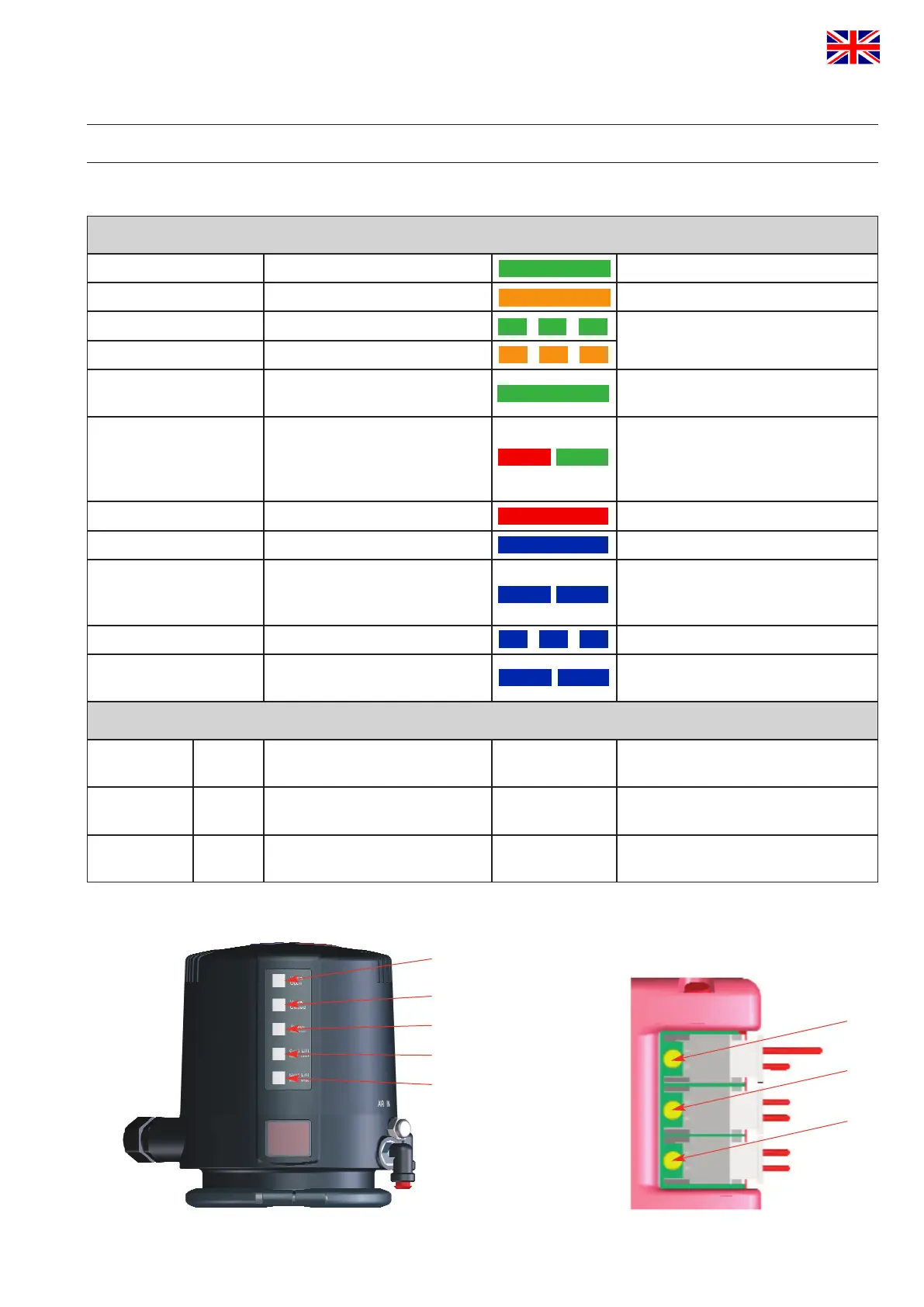

6.6. LED indication
External luminous displays
Valve Open colour: green, permanent light Valve in open position
Valve Closed colour: orange, permanent light Valve in closed position
Valve Open colour: green, flashing
Bridge missing at terminals
10, 11, 12
Valve Closed colour: orange, flashing
Power Diagnose colour: green, permanent light
operating voltage at module -
faultless
colour: red /green
AS-i status
+ peripheral failure, e.g. shortcircuit,
excess voltage, cable break
(profileS-7.A.*.Eonly)
colour: red, permanent light Communication failure
SolenoidMain colour: blue, permanent light 1stsolenoidvalve(1)controlled
SolenoidMain
○upperseat
○○lowerseat
colour: blue, 1 blink 2ndsolenoidvalve(2)controlled
colour: blue, 2 blinks 3rdsolenoidvalve(3)controlled
colour: blue, 1 blink
solenoid valve
2ndand3rd(2)+(3)controlled.
Internal luminous displays
Luminous
diode
1 1stsolenoidvalve(1)controlled
Luminous
diode
2 2ndsolenoidvalve(2)controlled
Luminous
diode
3 3rdsolenoidvalve(3)controlled
Valve Open
Valve Closed
PowerDiagnose
SolenoidMain
Solenoid
upper seat
 lowerseat
