8. CU Assembly and Startup
8.3.4 Startup
After proper assembly and installation of the control unit, startup can
be undertaken as described below:
1. Switch on the air supply.
2. Switch on the voltage supply.
3. Check the solenoid valves by turning the lever on the upper side of
the valve by 90°.
4. Check the valve position indicator. The proximity switches are
installed at the double seat valves with a mechanical stop.
Adjustment is not required!
Thefollowingallocationappliesfordoubleseatvalves:
Closedvalvepositionfeedback–sensor1controlled
Openvalvepositionfeedback–sensor2controlled
Checktheproperfitoftheproximityswitchestoprovidefor
theaccuratetransferofthesignalsforthecorrespondingvalve
position.

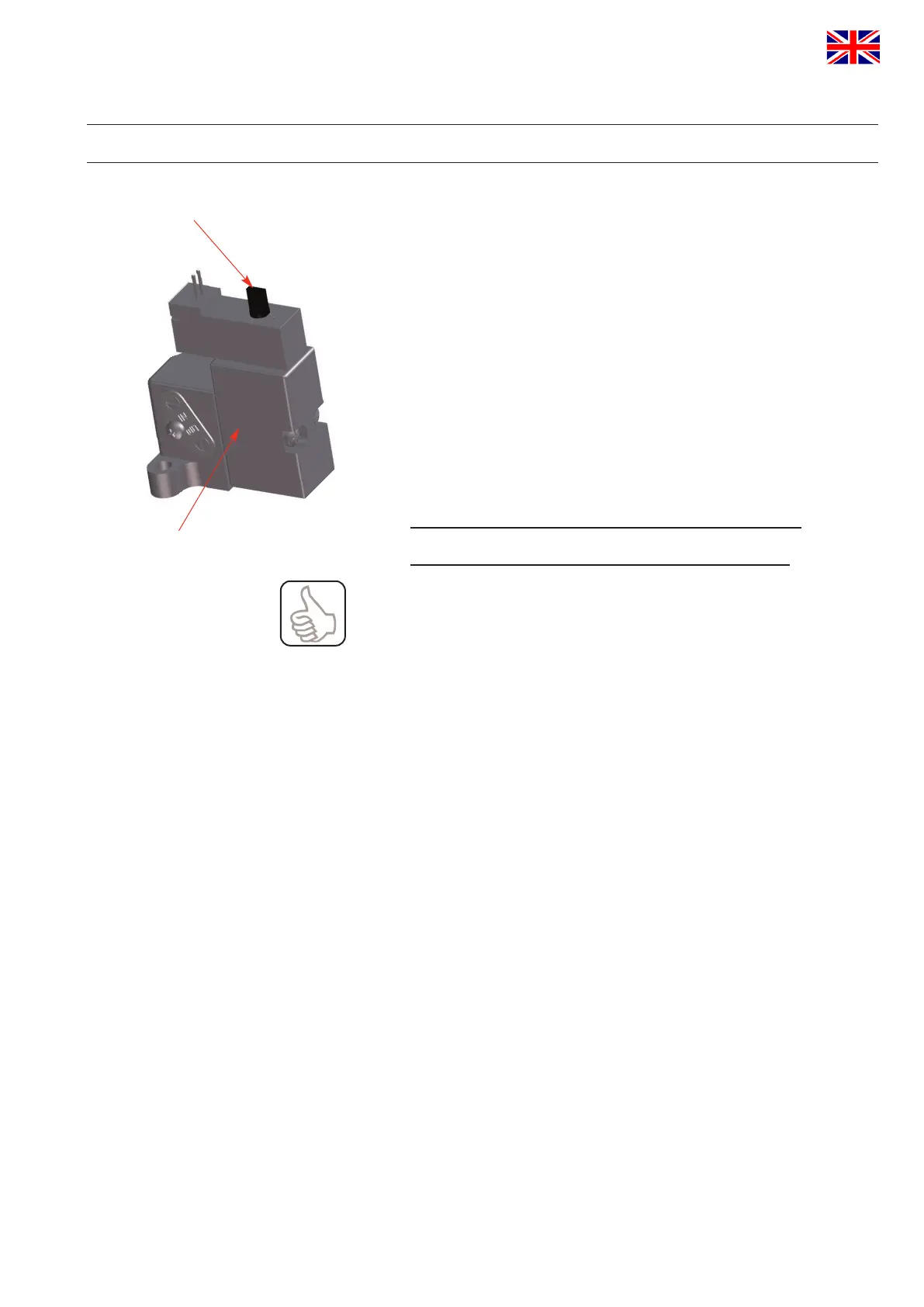

lever
solenoid valve
