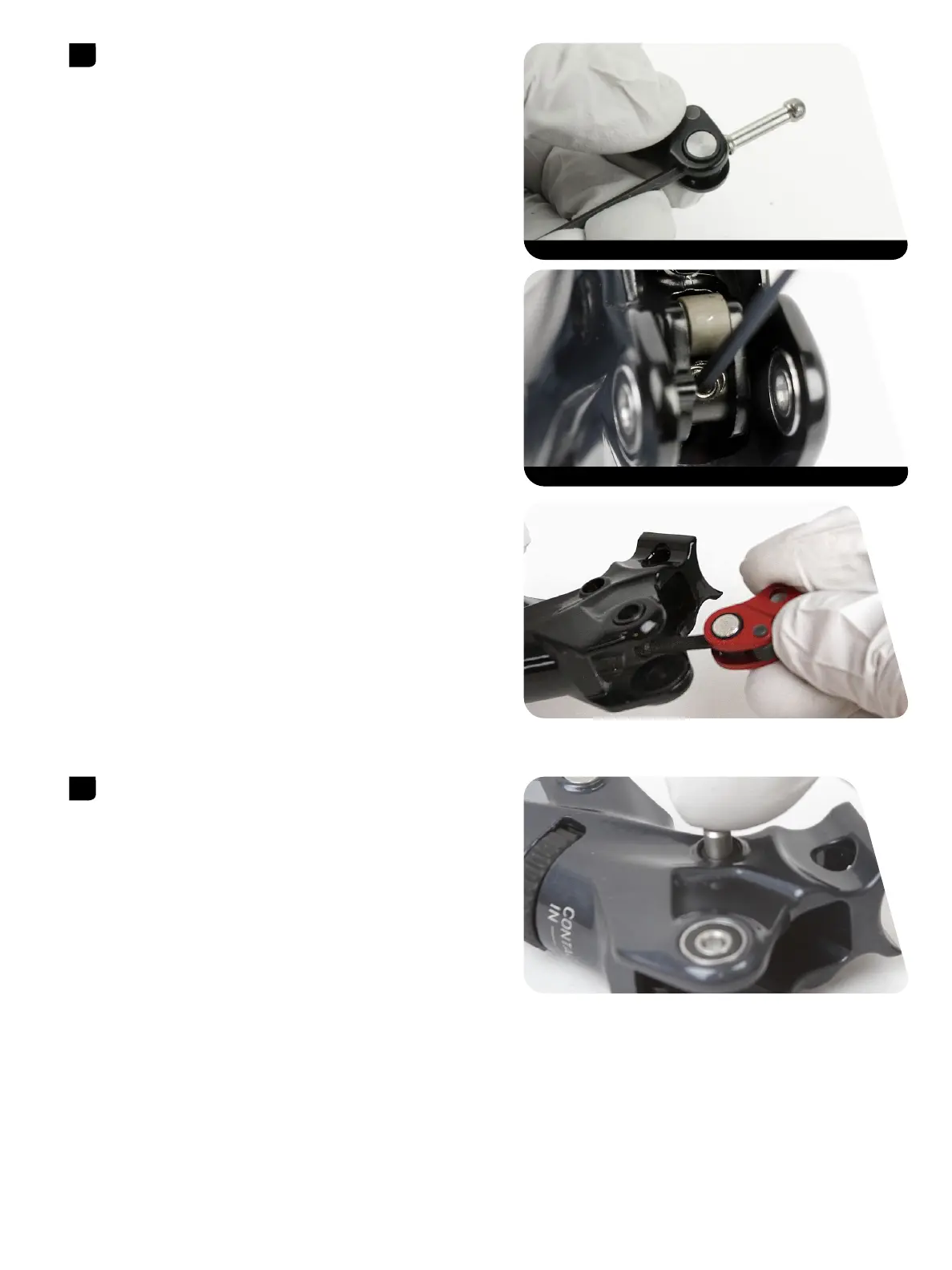

31Piston Assembly Installation
Black SwingLink: Adjust the length of the push rod on the SwingLink
until it is extended as far as possible. Use a 2 mm hex wrench to place
the pushrod into the coupler sleeve.
Red SwingLink: Place the SwingLink pushrod into the piston.
Align the holes of the SwingLink and the SwingLink bushings, then
press the pivot pin into the hole until it is flush with the lever body.
8
9
