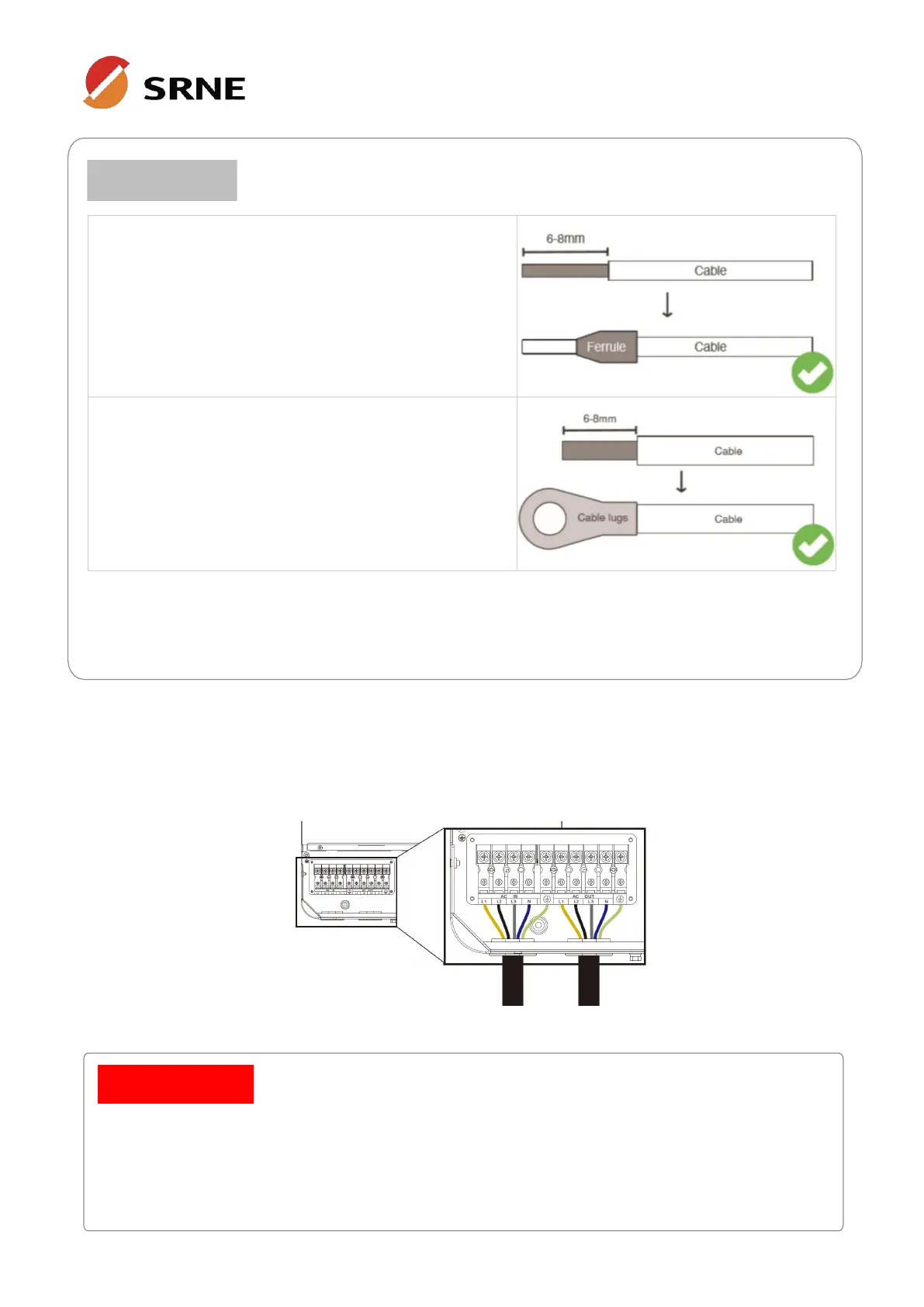

• PV input, AC input, AC output
1. Use a stripper to remove the 6~8mm insulation of the
cable.
2.
Fixing a ferrule at the end of the cable (ferrule needs to
be prepared by the user).
• Battery
1. Use a stripper to remove the 6~8mm insulation of the
cable.
2. Fixing cable lugs that supply with the box at the end
of the cable.
The wire diameter is for reference only. If the distance between the PV array and the inverter or
between the inverter and the battery is long, using a thicker wire will reduce the voltage drop and
improve the performance of the system.
4.3 AC input & output connection
Connect the live, neutral and ground cables in the position and order of the cables as shown in the
diagram below.
• Before connecting the AC input and output, the circuit breaker must be disconnected to
avoid the risk of electric shock and must not be operated with electricity.
• Please check that the cable used is sufficient for the requirements, too thin, poor quality
cables are a serious safety hazard.
