5. Operation

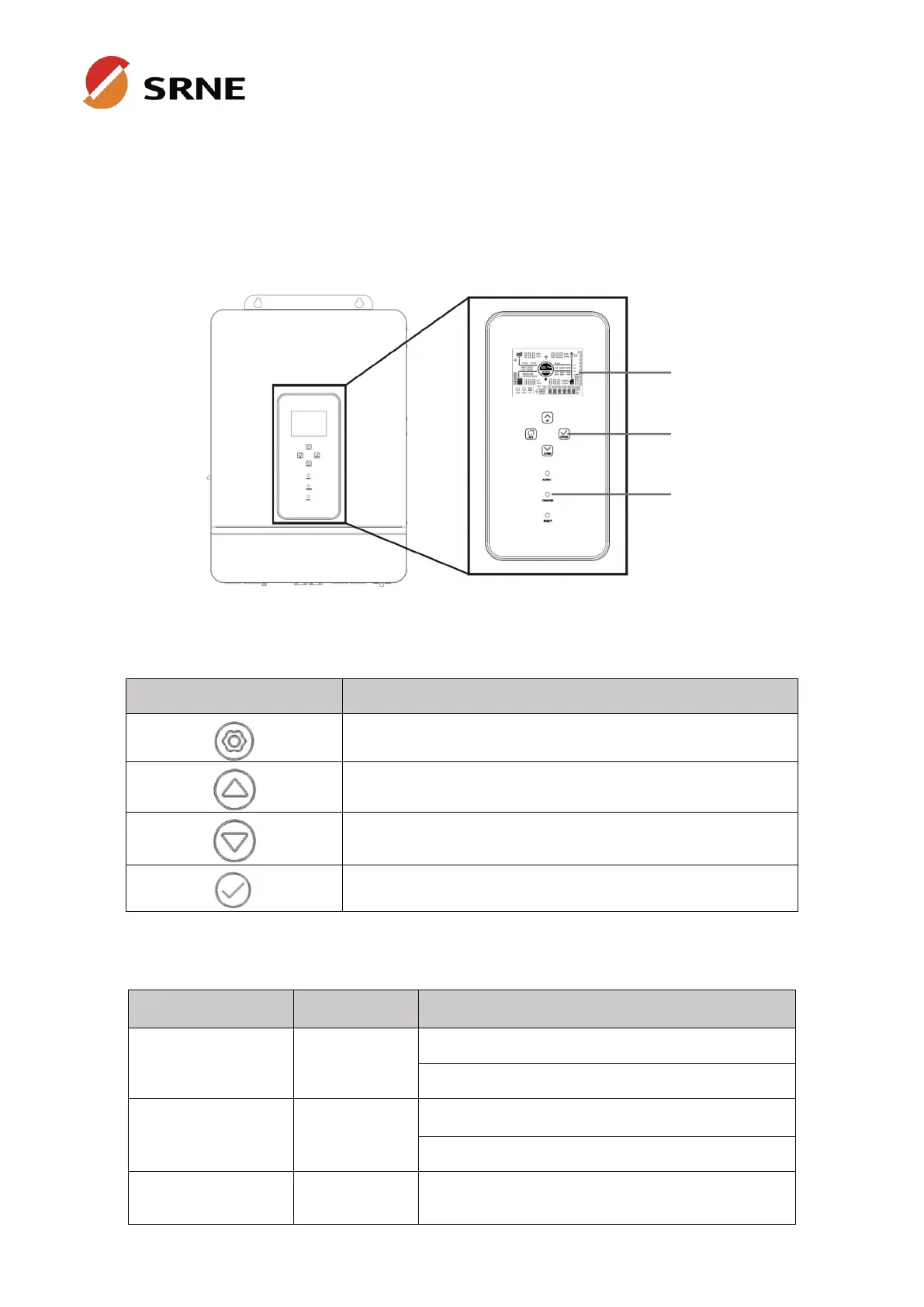

5.1 Operation and display panel
The operation and display panel below includes 1 LCD screen, 3 indicators, 4 touchable keys.
• Touchable keys
Touchable keys
Description
To enter/exit the setting menu
To next selection
To last selection
To confirm/enter the selection in setting menu
• LED Indicators
LED Indicators
Color
Description
AC/INV
Green
Always on: utility bypass output
Flash: inverter output
CHARGE
Yellow
Always on: charging complete
Flash: charging
FAULT
Red
Flash: fault occur
LCD screen
Touchable keys
LED indicators
