15
File version: V1.0

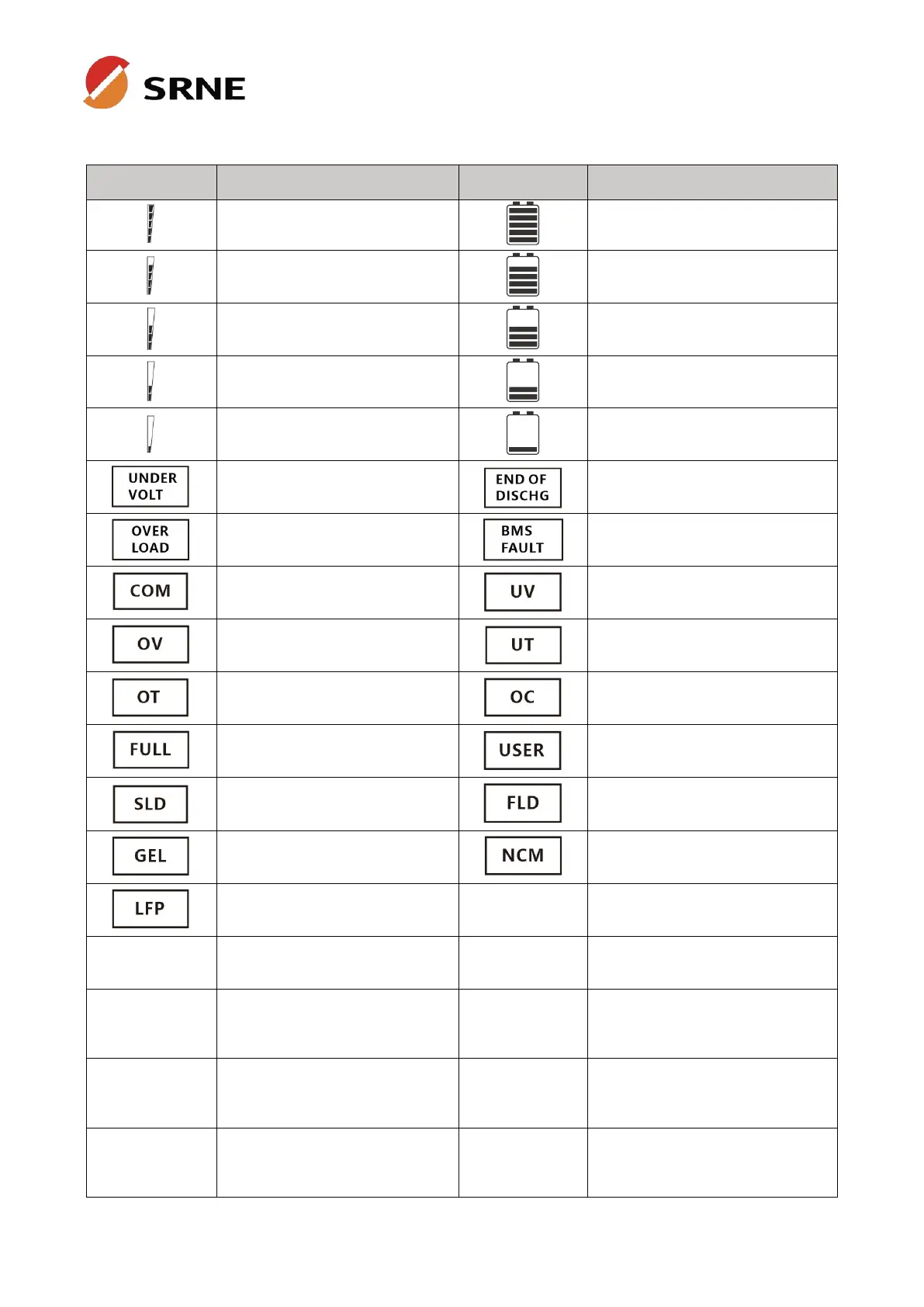

Icon
Description
Icon
Description
Indicates load power
80%~100%
Indicates battery SOC
80%~100%
Indicates load power
60%~79%
Indicates battery SOC
60%~79%
Indicates load power
40%~59%
Indicates battery SOC
40%~59%
Indicates load power
20%~39%
Indicates battery SOC
20%~39%
Indicates load power 5%~19%
Indicates battery SOC 5%~19%
Indicates battery under-voltage
Indicates battery discharge
stops
Indicates over-load
Indicates BMS fault
Indicates system
communication error
Indicates system under-voltage
Indicates system over-voltage
Indicates system under
temperature
Indicates system
overtemperature
Indicates system over-current
Indicates battery is full
Indicates user defined battery
Indicates sealed lead-acid
battery
Indicates flooded lead-acid
battery
Indicates gel lead-acid battery
Indicates ternary li-ion battery
Indicates LFP li-ion battery
ECO
Indicates energy-saving mode
PV LOAD
Indicates PV energy is carrying
the load
PV CHG
Indicates PV energy is charging
the battery
AC CHG
Indicates AC IN energy is
charging the battery
MAIN
FIRST
Indicates the inverter output
mode is mains power first
BYPASS
Indicates the inverter output
mode is bypass
SOLAR
FIRST
Indicates the inverter output
mode is solar first
BATT
FIRST
Indicates the inverter output
mode is battery first
