St George WEOM7 A - INSTALLATION DIAGRAMS & INSTRUCTIONS; Installation Warnings and Requirements; Preparing the Cupboard Cavity

INSTALLATION
DIAGRAMS
& INSTRUCTIONS

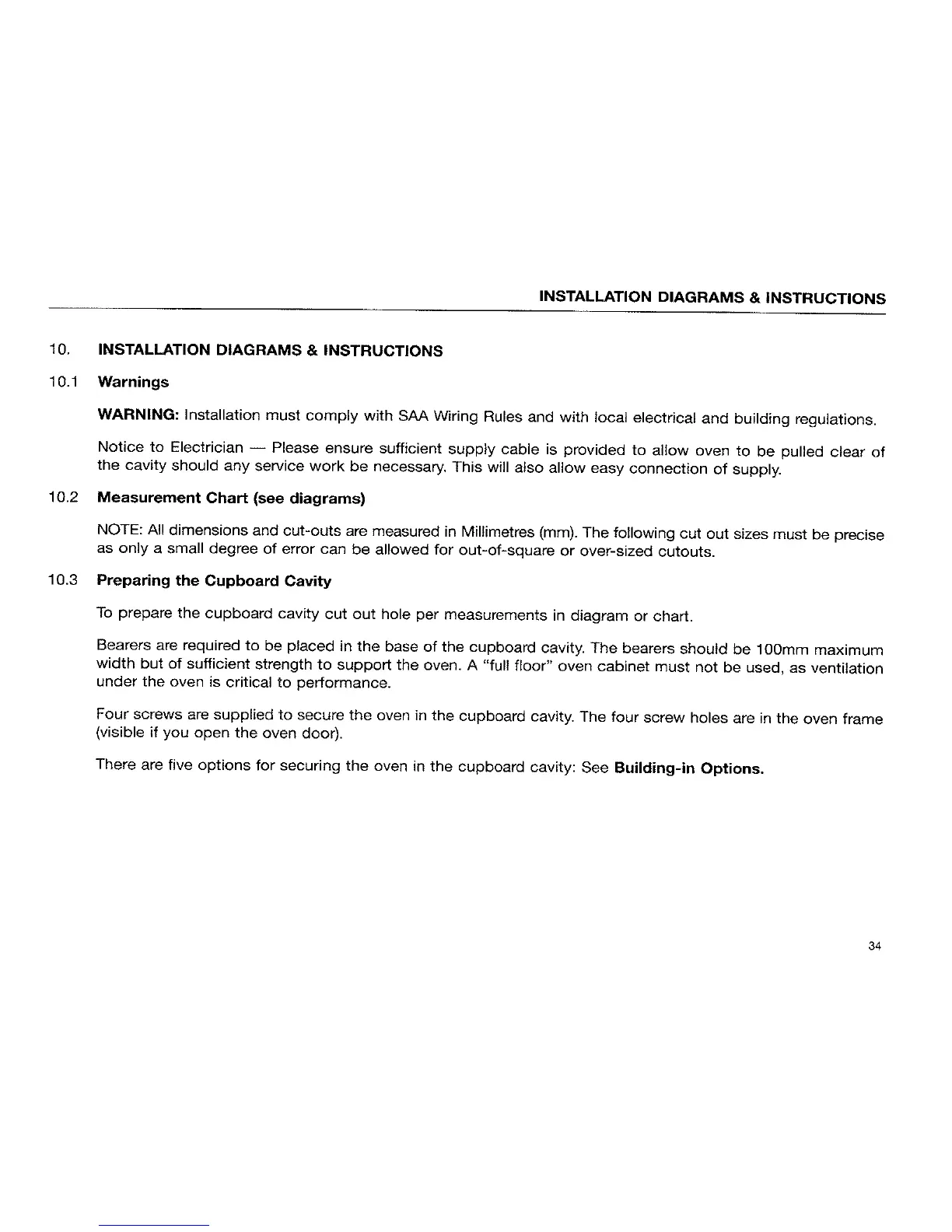

10.
INSTALLATION
DIAGRAMS
&
INSTRUCTIONS
10.1
Warnings
WARNING:
Installation
must
comply
with
SAA
Wiring
Rules
and
with
local
electrical
and
building
regulations.
Notice
to Electrician
-
Please
ensure
sufficient
supply
cable
is
provided
to
allow
oven
to
be
pulled
clear
of
the
cavity
should
any
service
work
be
necessary.
This
will
also
allow
easy
connection
of
supply.
10.2
Measurement
Chart
(see
diagrams)
NOTE:
All
dimensions
and
cut-outs
are
measured
in
Millimetres
(mm).
The
following
cut
out
sizes
must
be
precise
as
only
a small
degree
of error
can
be
allowed
for
out-of-square
or
over-sized
cutouts.
10.3
Preparing
the
Cupboard
Cavity
To prepare
the
cupboard
cavity
cut
out
hole
per
measurements
in
diagram
or
chart.
Bearers
are required
to
be
placed
in
the
base
of
the
cupboard
cavity.
The
bearers
should
be
100mm
maximum
width
but
of
sufficient
strength
to support
the
oven.
A
"full
floor"
oven
cabinet
must
not
be used,
as
ventilation
under
the
oven
is
critical
to performance.
Four
screws
are supplied
to
secure
the
oven
in the
cupboard
cavity.
The
four
screw
holes
are
in the
oven
frame
(visible
if you
open
the
oven
door).
There
are
five
options
for securing
the oven
in the
cupboard
cavity:
See
Building-in
Options.
34
