ELECTRICAL
WIRING
DIAGRAMS
& INSTRUCTIONS

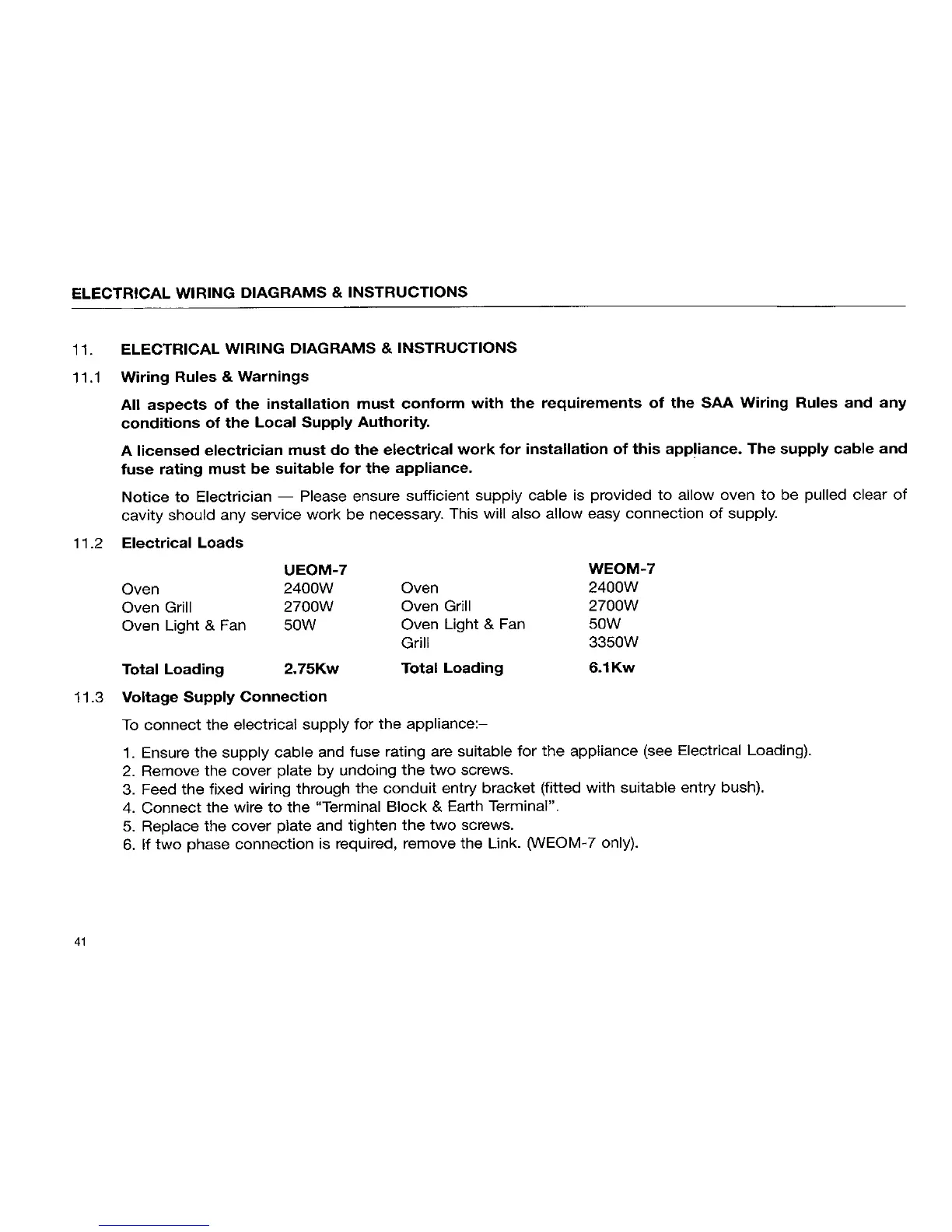

11. ELECTRICAL
WIRING
DIAGRAMS
& INSTRUCTIONS
11.1
Wiring
Rules
& Warnings
All aspects
of
the installation
must
conform
with
the requirements
of the SAA
Wiring
Rules
and any
conditions
of the
Local Supply
Authority.
A licensed
electrician
must do
the electrical
work
for installation
of
this appliance.
The
supply
cable and
fuse rating
must
be suitable
for the
appliance.
Notice to
Electrician
- Please
ensure
sufficient
supply
cable
is provided
to allow
oven to
be pulled
clear of
cavity
should
any service
work
be necessary.
This
will also
allow easy
connection
of supply.
11.2
Electrical
Loads
UEOM-7
WEOM-7
Oven
2400W
Oven
2400W
Oven
Grill
2700W
Oven Grill
2700W
Oven
Light &
Fan
50W
Oven
Light &
Fan
50W
Grill
3350W
Total Loading
2.75Kw
Total
Loading
6.1Kw
11.3 Voltage
Supply
Connection
To
connect
the electrical
supply
for the
appliance:-
1.
Ensure the
supply
cable and
fuse rating
are suitable
for
the appliance
(see
Electrical
Loading).
2. Remove
the cover
plate
by undoing
the two screws.
3. Feed
the fixed
wiring
through the
conduit
entry bracket
(fitted
with suitable
entry
bush).
4. Connect
the wire
to the "Terminal
Block
& Earth
Terminal".
5. Replace
the
cover plate
and tighten
the two
screws.
6. If two
phase
connection
is required,
remove
the Link.
(WEOM-7
only).
41
