St George WEOM7 A - Page 40

INSTALLATION DIAGRAMS & INSTRUCTIONS
Model: UEOM-7
55 "'20

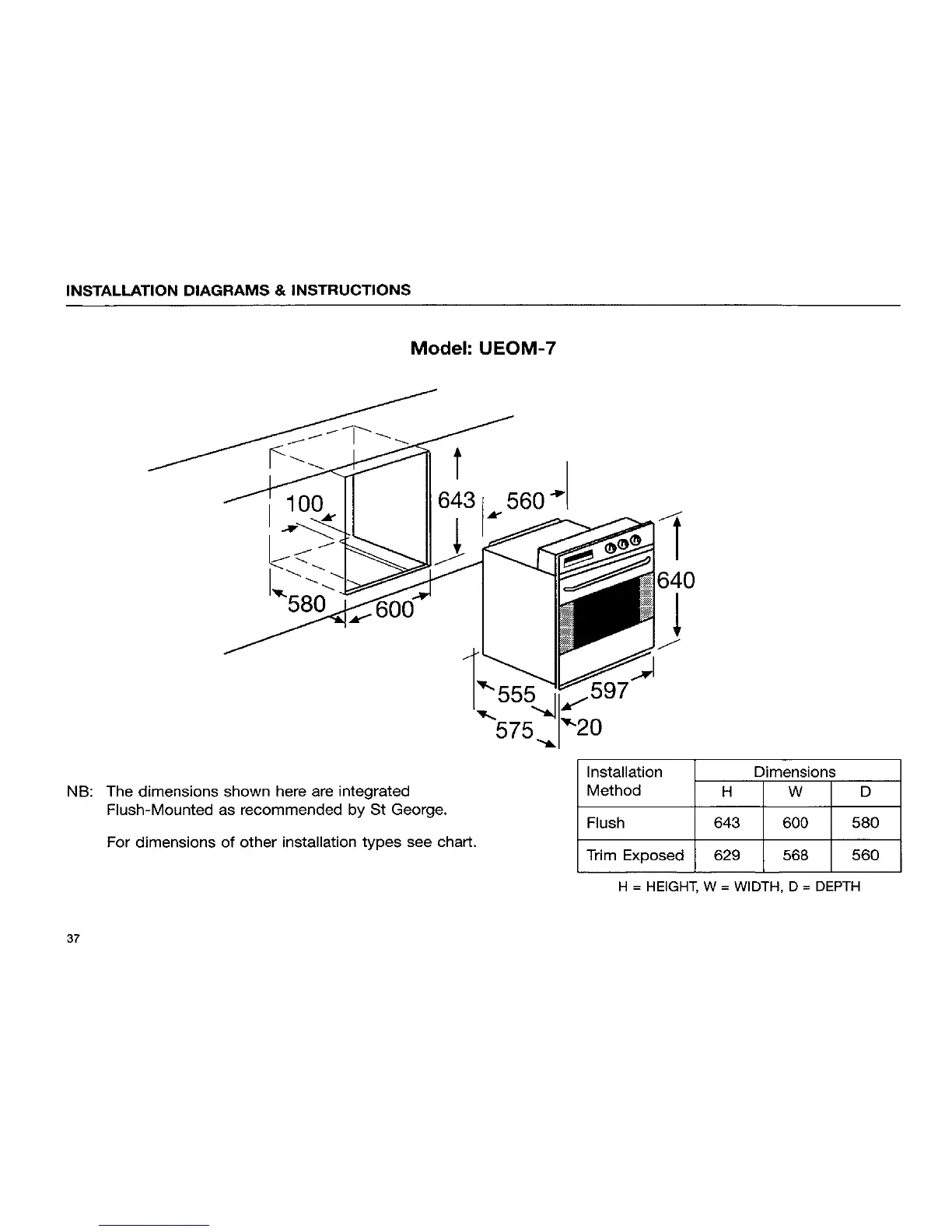

Installation Dimensions____
NB: The dimensions shown here are integrated Method H W D
Flush-Mounted as recommended by St George.Fls64 60 8
For dimensions of other installation types see chart.
Trim Exposed 629 568 560
H = HEIGHT, W = WIDTH. D =DEPTH
37
