Product contents
UM1075
6/20
UM1075 Rev 10
3 Product
contents
The cables delivered within the prod
uct are shown in
Figure
2
and
Figur
e
3
. They include
(from left t
o right):
•
USB standard
-A
to Mini-
B cable (A)
•
ST
-LINK/V2 debugging and pr
ogramming (B)
•
SWIM low-cost connector (C
)
•
SWIM flat ribbon with a standard
ERNI connector
at one en
d (D)
•
JT
AG or SWD and SWV flat ribbon with a 20-pin connector (E)

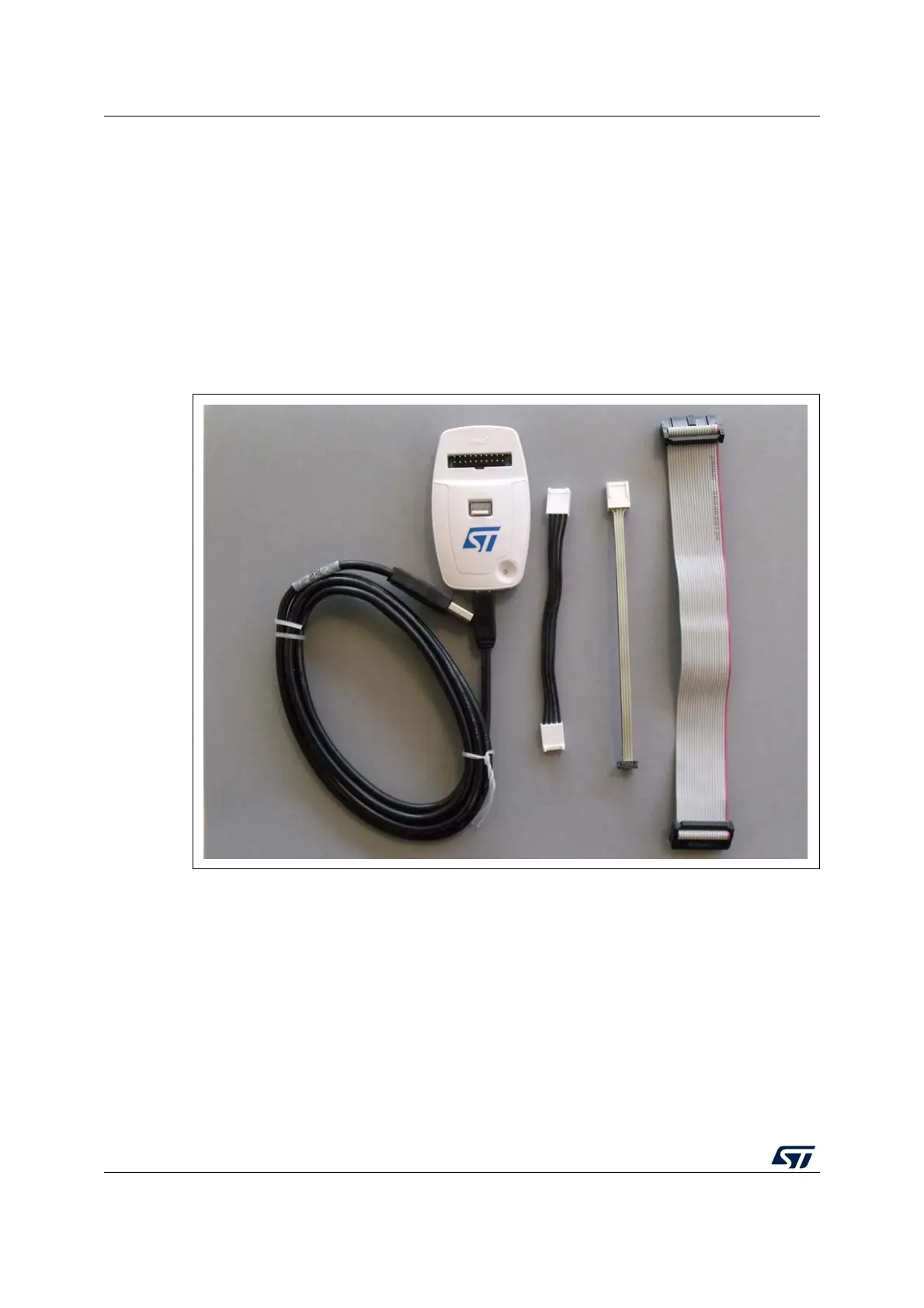

Figure 2. ST
-LINK/V2 product contents
A
B
C
D
E
5
7
