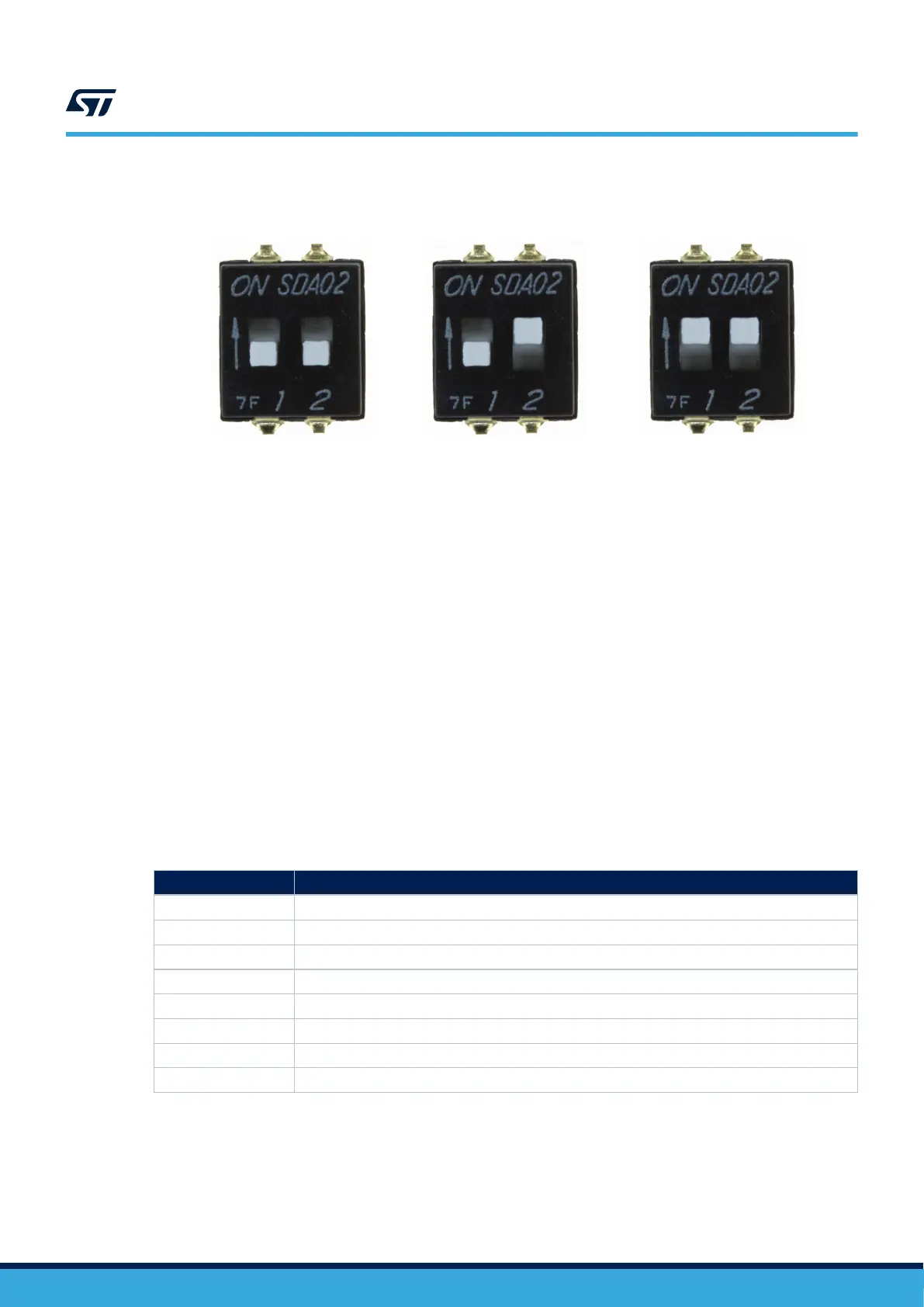

Figure 7 shows the configurations of the boot-related switch SW1.
Figure 7. Boot-mode switch SW1
Forced USB boot
for flashing
Engineering boot Boot from SD card
6.6 Audio
6.6.1 Description
The audio codec is connected through an SAI interface to the STM32MP157x microcontroller. This component
supports the TDM feature of the SAI port. The TDM feature offers STM32MP157x the capability to stream stereo
audio channels.
6.6.2 Operating voltage
The audio codec has two power supplies:
• VL, connected to the 3.3 V provided by the STPMIC1
• 1V8_AUDIO, dedicated 1.8 V source provided by the STPMIC1
6.6.3 Audio codec interface
Audio codec interfacing is performed through the SAI2 and I2C1 interfaces of the STM32MP157x.
Table 6 describes the I/O configuration of the audio codec interface.
Table 6. I/O configuration for the audio interface
I/O Configuration
PG9 PG9 used as AUDIO RESETN (active LOW)
PE0 PE0 used as SAI2_MCLKA
PF11 PF11 used as SAI2_SDB shared with GPIO expansion
PI7 PI7 used as SAI2_FSA shared with GPIO expansion
PI5 PI5 used as SAI2_SCKA shared with GPIO expansion
PI6 PI6 used as SAI2_SDA shared with GPIO expansion
PD12 PD12 used as I2C1_SCL shared between USB, DSI, HDMI
PF15 PF15 used as I2C1_SDA shared between USB, DSI, HDMI
UM2637
Audio
UM2637 - Rev 2
page 12/47
