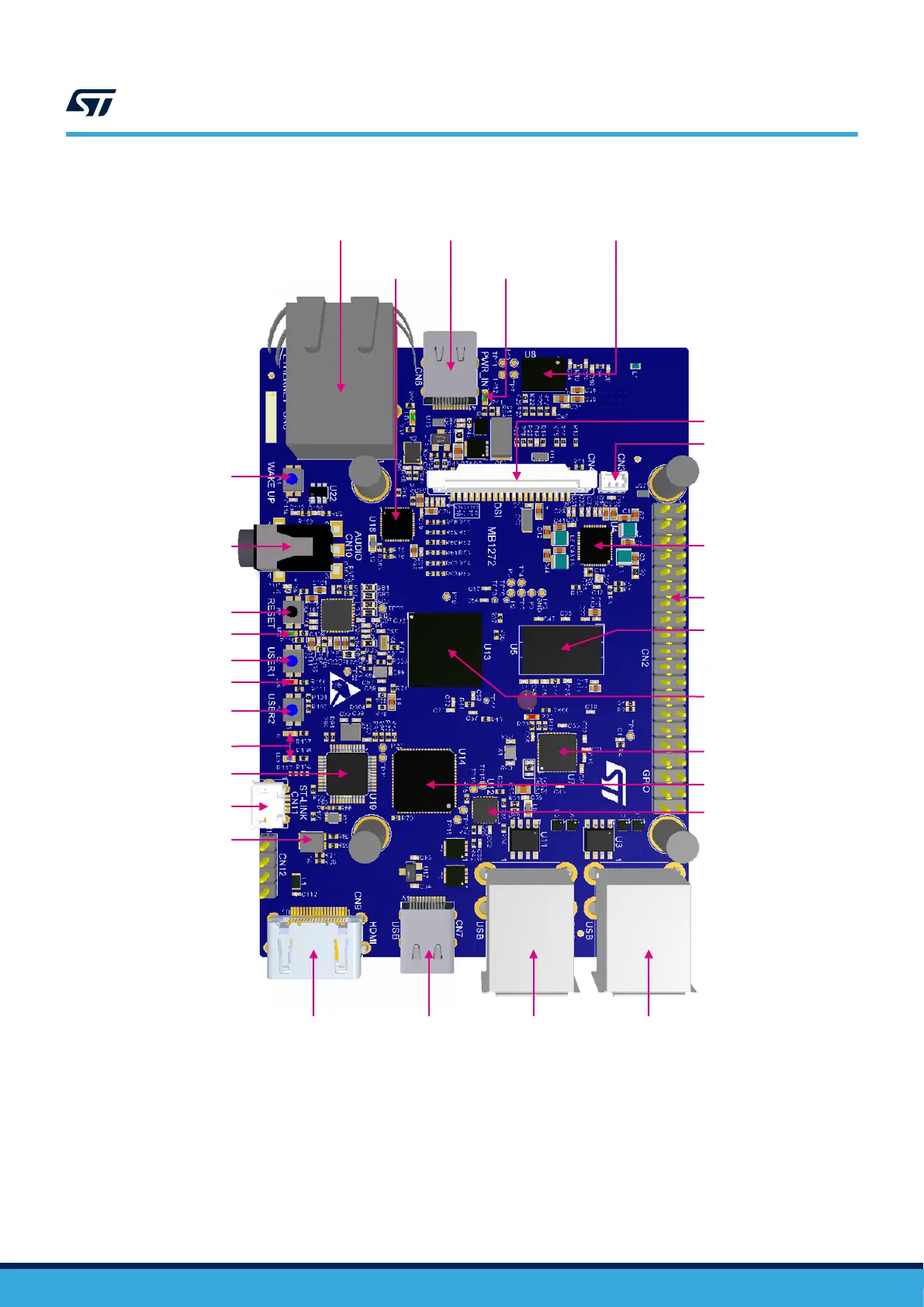

Figure 4. STM32MP157x-DKx PCB layout: top side
Ethernet connector
(CN8)
Power in 5 V
(CN6)
Ethernet PHY
(U18)
Power in LED
(LD2)
Wi-Fi
®
/ Bluetooth
®
Low Energy
(U8)
DSI
SM
connector (CN4)
VBAT connector (CN3)
STPMIC (U4)
40-pin connector (CN2)
USB Hub (U7)
DDR3L (U5)
USB Host
(CN1)
HDMI
®
bridge (U14)
STM32MP157 (U13)
USB Host
(CN5)
USB Type-C
®
(CN7)
HDMI
®
(CN9)
STUSB1600 (U12)
Wake-up button (B1)
Reset button (B2)
User1 button (B3)
User2 button (B4)
Audio connector (CN10)
User LED (LD5)
User LED (LD6)
User LEDs (LD7, LD8)
STLK LED (LD4)
ST-LINK USB (CN11)
ST-LINK STM32 (U19)
UM2637
Hardware layout and configuration
UM2637 - Rev 2
page 8/47
