ST STM32MP157D-DK1 - Table 16. CN9 HDMI; Figure 12. CN9 HDMI Connector Pinout

I/O Configuration
PD12 PD12 is connected to I2C1_SCL (I2C shared).
PF15 PF15 is connected to I2C1_SDA (I2C shared).
PA10 PA10 is connected to HDMI_NRST

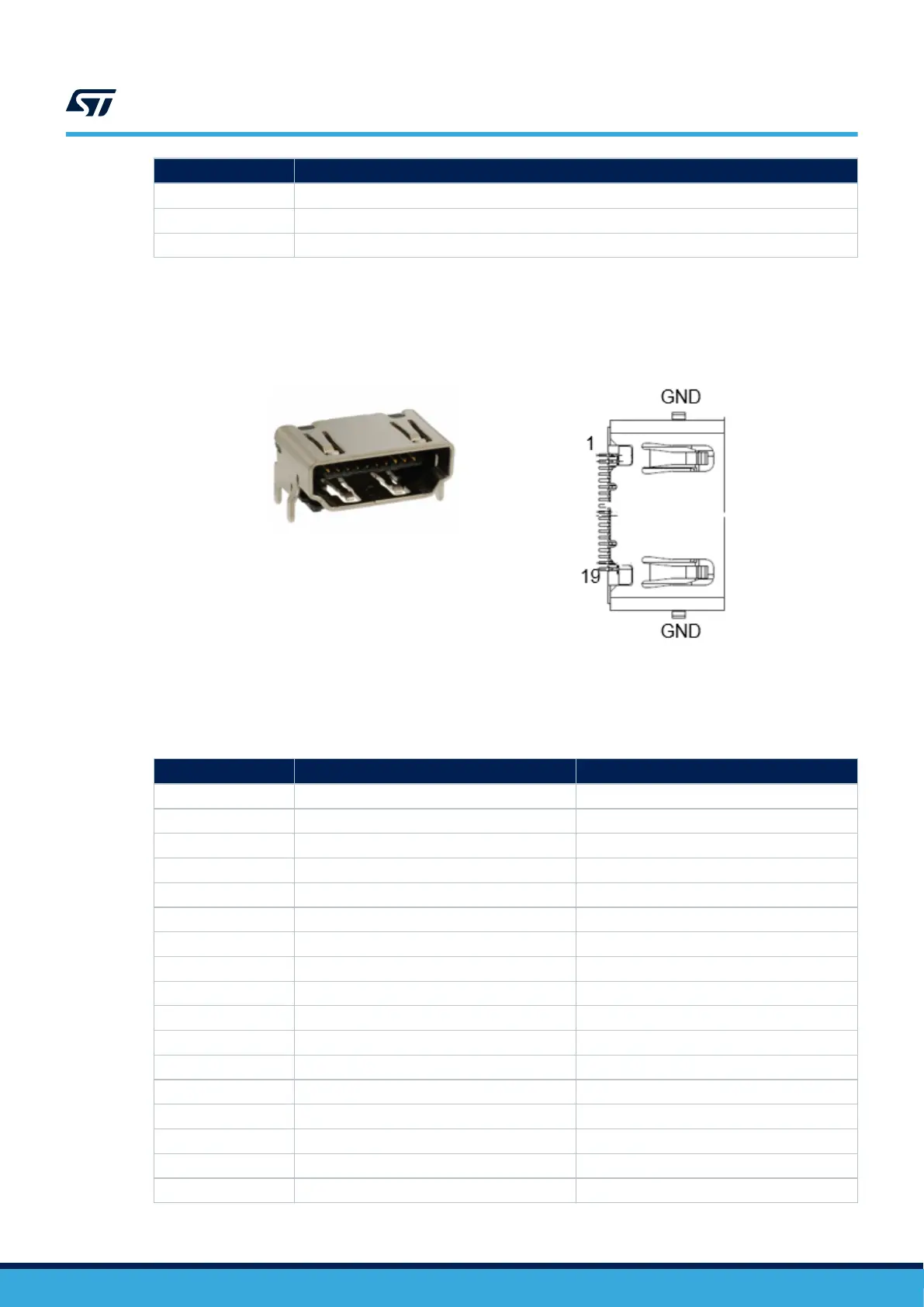

Figure 12 shows the pinout of HDMI
®
connector CN9.
Figure 12. CN9 HDMI
®
connector pinout
Table 16 describes the pinout of HDMI
®
connector CN9.
Table 16. CN9 HDMI
®
connector pinout
Pin
Pin name Signal name
1 RX2+ TX2C_P
2 GND GND
3 RX2- TX2C_N
4 TX1+ TX1C_P
5 GND GND
6 RX1- TX1C_N
7 RX0+ TX0C_P
8 GND GND
9 RX0- TX0C_N
10 RXC+ TXCC_P
11 GND GND
12 RXC- TXCC_N
13 CEC CEC_A
14 - -
15 SCL DSCL
16 SDA DSDA
17 GND GND
