6 Hardware layout and configuration
The STM32U083C-DK Discovery kit is designed around the STM32U083MC microcontroller, in an LQFP80
package.
Figure 3 illustrates the connection between the STM32 and its peripherals (STLINK-V2EC, push-button, joystick,
touchkey, LEDs, temperature sensor, LCD segments, user USB, mikroBUS
™
connectors, ARDUINO
®
connectors, and extension connectors).
Figure 4 shows the location of the STM32U083C-DKDiscovery kit features.
The mechanical dimensions of the board are shown in Figure 5.

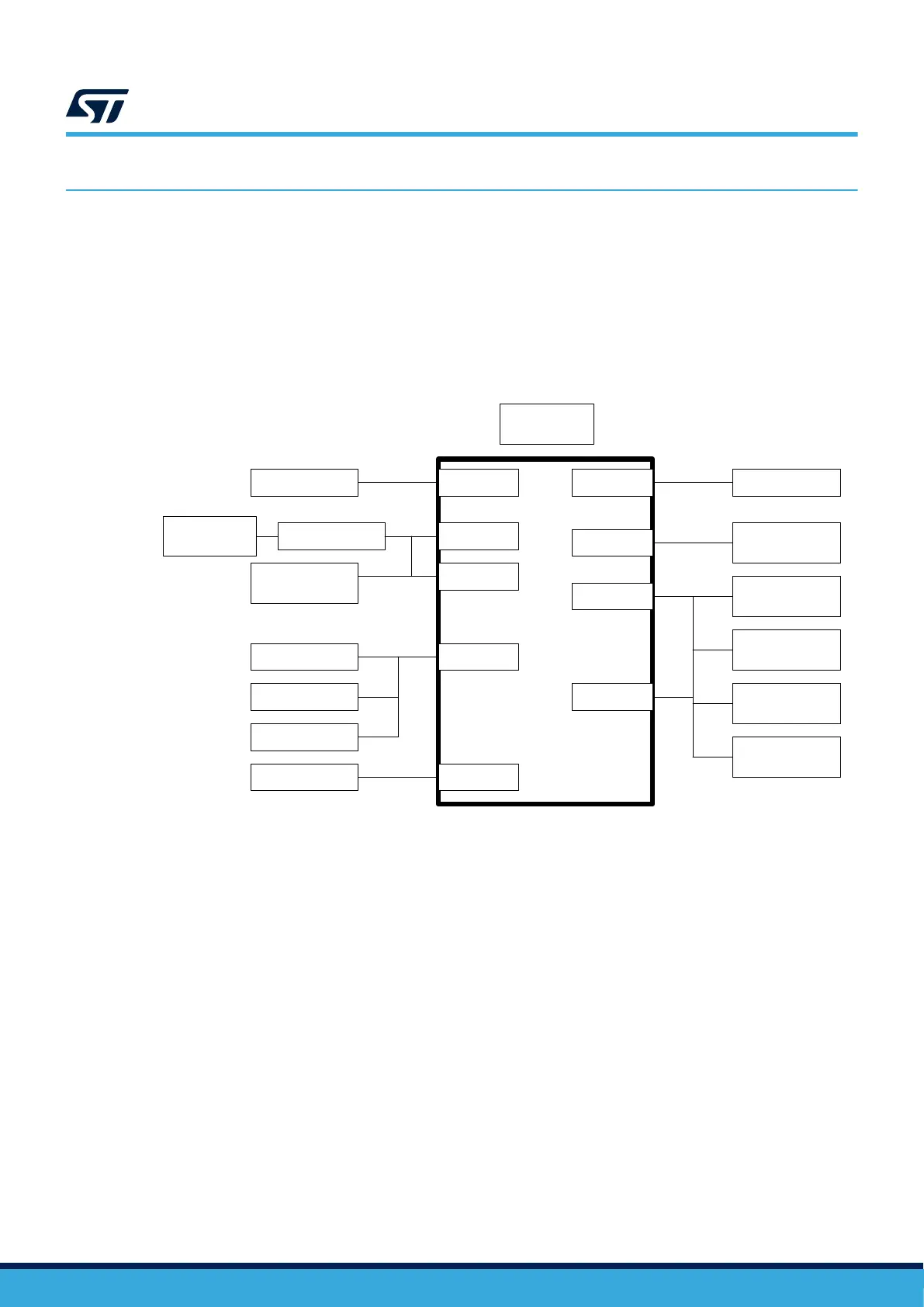

Figure 3. Hardware block diagram
DT59324V1
STM32U083MCT6
LEDs
Joystick
1.8 to 3.3V
power supply
RTC32 KHz crystal
VCP
UART2
STLINK-V2EC
SWD
USB Type-C
®
connector
GPIO
Extension
connectors
TSC
ARDUINO
®
connectors
Reset button
Temperature
sensor
I2C1
USB
LCD LCD segments
Touchkey
mikroBUS
TM
connectors
USB Type-C
®
connector
STDC14
receiver
GPIO
