6.1 STM32U083C-DK board layout

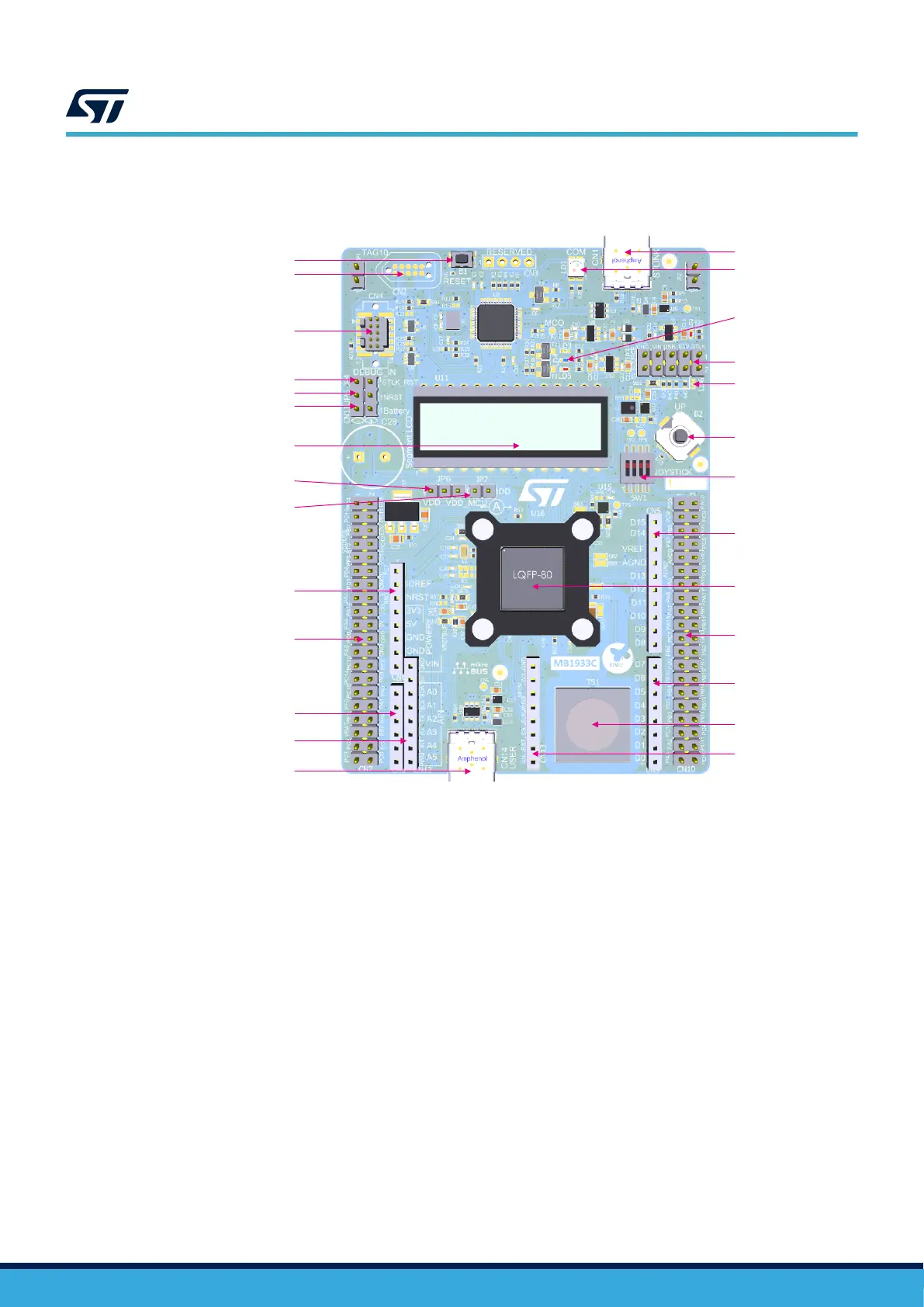

Figure 4. STM32U083C-DK layout top view
DT59325V1
Debug_IN STDC14
(CN4)
TAG10
(CN2)
ARDUINO
®
connector
(CN6)
ARDUINO
®
connector
(CN9)
User button
(B1)
ST-LINK reset
(JP4)
Reset
(JP5)
Battery connector
(CN11)
LCD segments
(U11)
Sensor power selection
(JP6)
IDD measurement
(JP7)
Morpho pin headers
(CN7)
ARDUINO
®
connector
(CN8)
User USB connector
(CN14)
mikroBUS
TM
connector
(CN12)
ST-LINK USB connector
(CN1)
mikroBUS
TM
connector
(CN13)
Touchkey
(TS1)
ARDUINO
®
connector
(CN5)
Extension pin headers
(CN1)
STM32 microcontroller
(U16)
VDD
voltage output selection
(SW1)
Joystick
(B2)
Power green LED
(LD6)
5V power selection
(JP3)
COM red/green LED
(LD1)
User LEDs
(LD3 to LD5)
UM3292
Hardware layout and configuration
