Hardware layout and configuration UM1902
14/79 DocID027916 Rev 2
JP13
For power supply from USB connector of ST-LINK/V2-1 (CN21) to STM32746G-
EVAL only, JP13 is set as shown to the right:
For power supply from the daughterboard connectors (CN5 and CN6) to
STM32746G-EVAL only, JP13 is set as shown to the right:
For power supply from USB OTG FS2 (CN14) to STM32746G-EVAL only, JP13 is
set as shown to the right:
For power supply from USB OTG FS1 (CN13) to STM32746G-EVAL only, JP13 is
set as shown to the right:

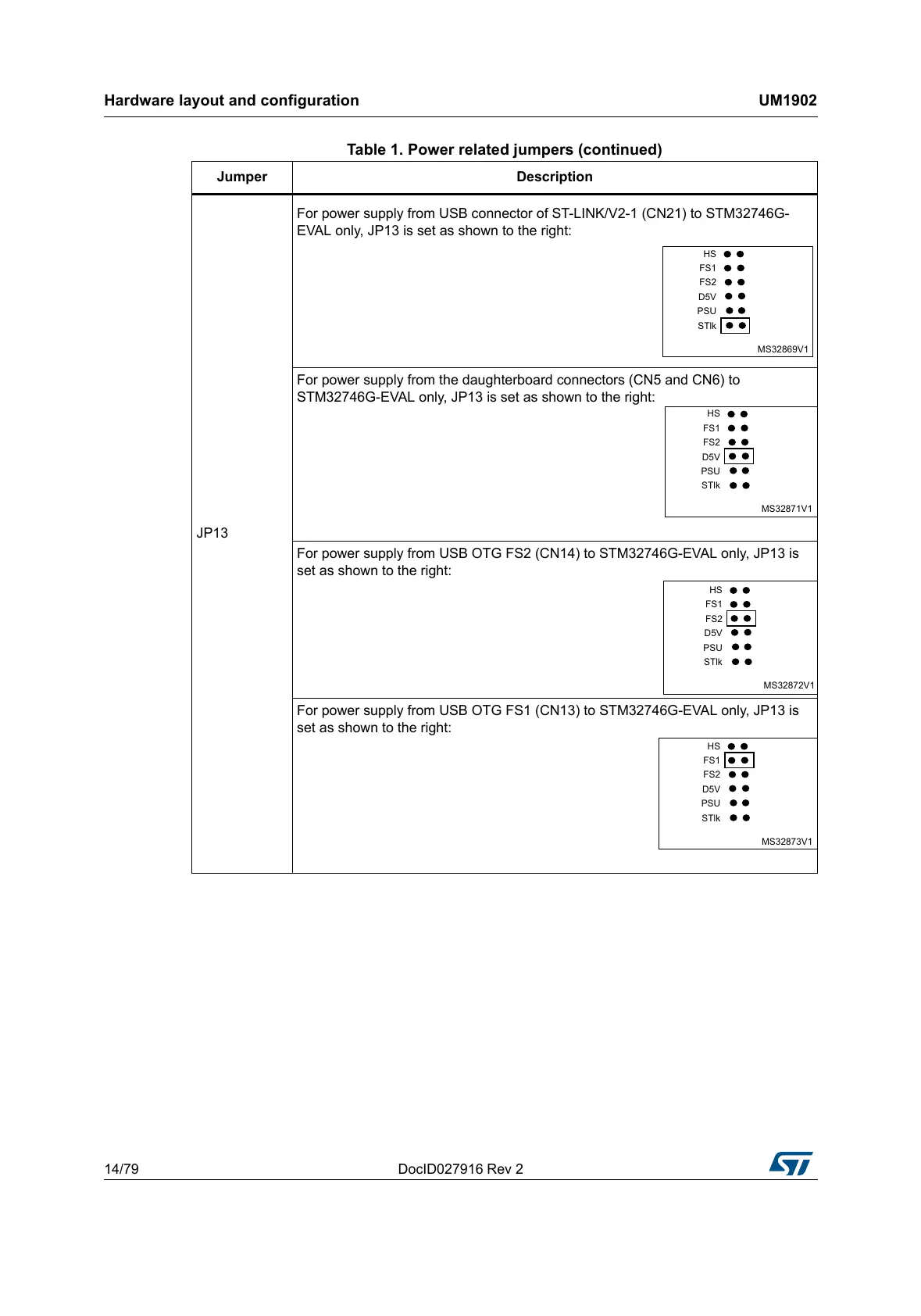

Table 1. Power related jumpers (continued)
Jumper Description

+6
)6
)6
'9
368
67ON
069

+6
)6
)6
'9
368
67ON
069

+6
)6
)6
'9
368
67ON
069

+6
)6
)6
'9
368
67ON
069
