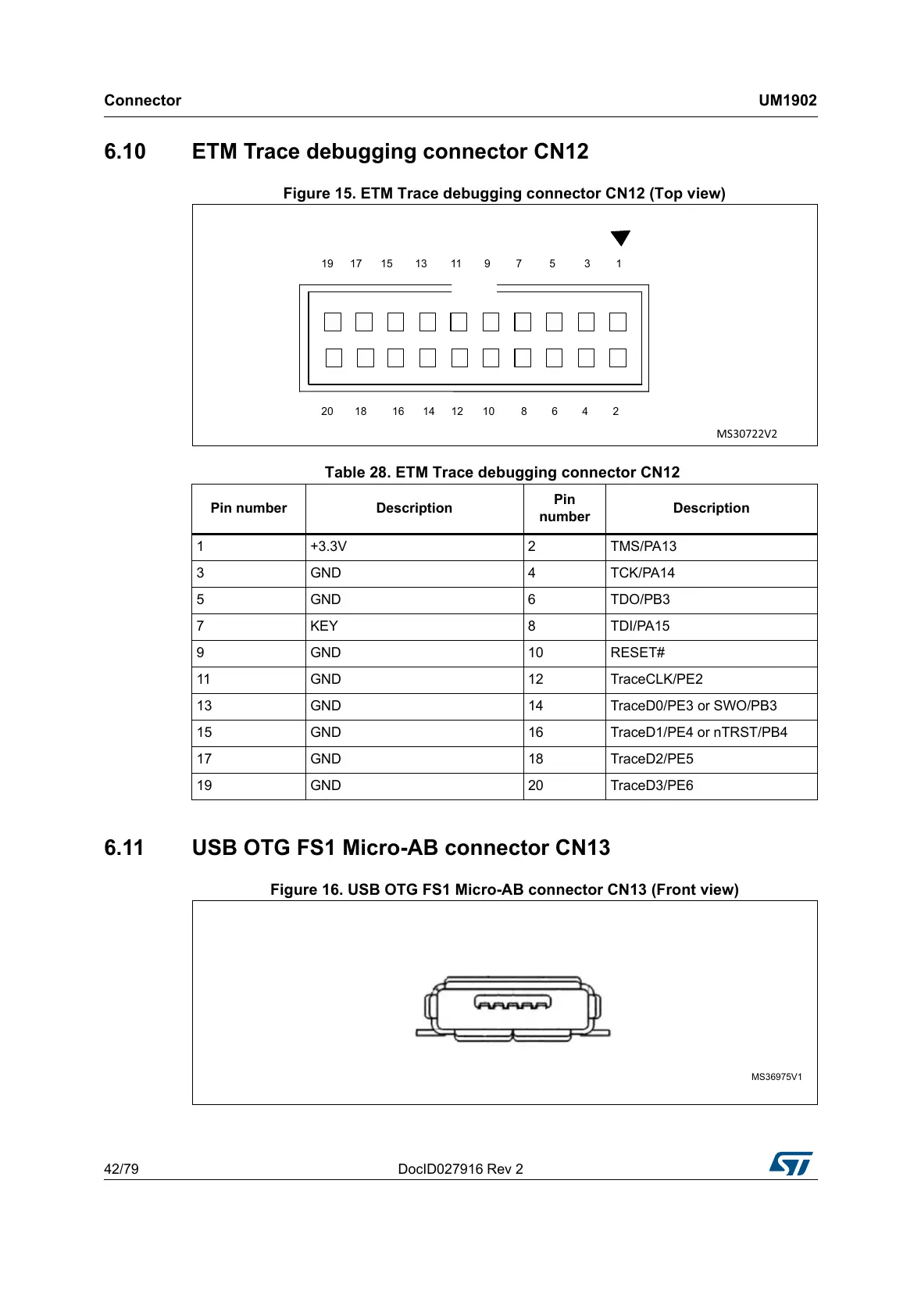

6.10 ETM Trace debugging connector CN12
Figure 15. ETM Trace debugging connector CN12 (Top view)
6.11 USB OTG FS1 Micro-AB connector CN13
Figure 16. USB OTG FS1 Micro-AB connector CN13 (Front view)
Table 28. ETM Trace debugging connector CN12
Pin number Description
Pin
number
Description
1 +3.3V 2 TMS/PA13
3GND 4TCK/PA14
5 GND 6 TDO/PB3
7 KEY 8 TDI/PA15
9 GND 10 RESET#
11 GND 12 TraceCLK/PE2
13 GND 14 TraceD0/PE3 or SWO/PB3
15 GND 16 TraceD1/PE4 or nTRST/PB4
17 GND 18 TraceD2/PE5
19 GND 20 TraceD3/PE6
D^ϯϬϳϮϮsϮ
   
 

 



 
 
069
