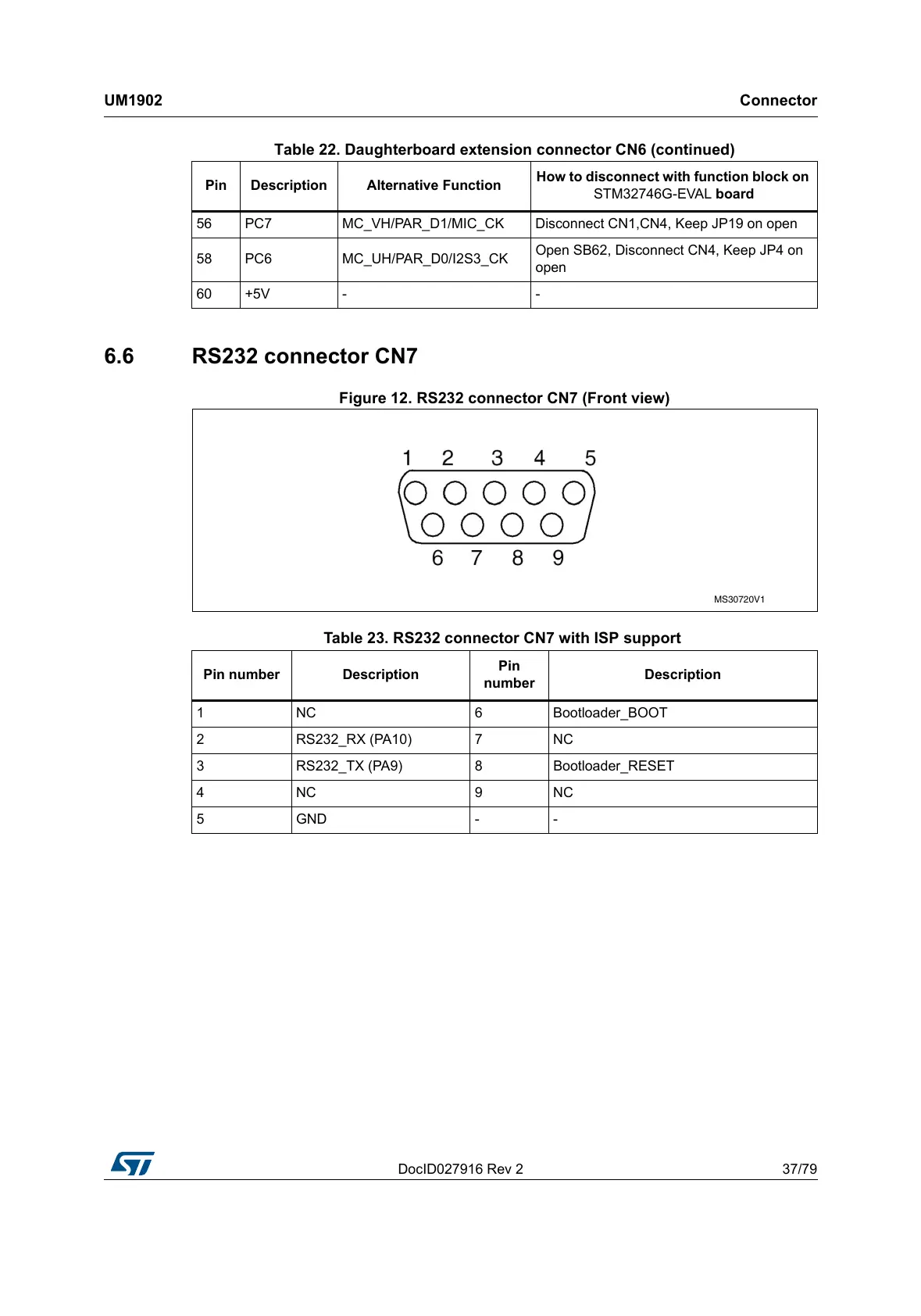

DocID027916 Rev 2 37/79

UM1902 Connector

6.6 RS232 connector CN7

Figure 12. RS232 connector CN7 (Front view)

56 PC7 MC_VH/PAR_D1/MIC_CK Disconnect CN1,CN4, Keep JP19 on open

58 PC6 MC_UH/PAR_D0/I2S3_CK

Open SB62, Disconnect CN4, Keep JP4 on

open

60 +5V - -

Table 22. Daughterboard extension connector CN6 (continued)

Pin Description Alternative Function

How to disconnect with function block on

STM32746G-EVAL board

Table 23. RS232 connector CN7 with ISP support

Pin number Description

number

Description

1 NC 6 Bootloader_BOOT

2 RS232_RX (PA10) 7 NC

3 RS232_TX (PA9) 8 Bootloader_RESET

4NC 9NC

5GND --

-36
