Connector UM1902

38/79 DocID027916 Rev 2

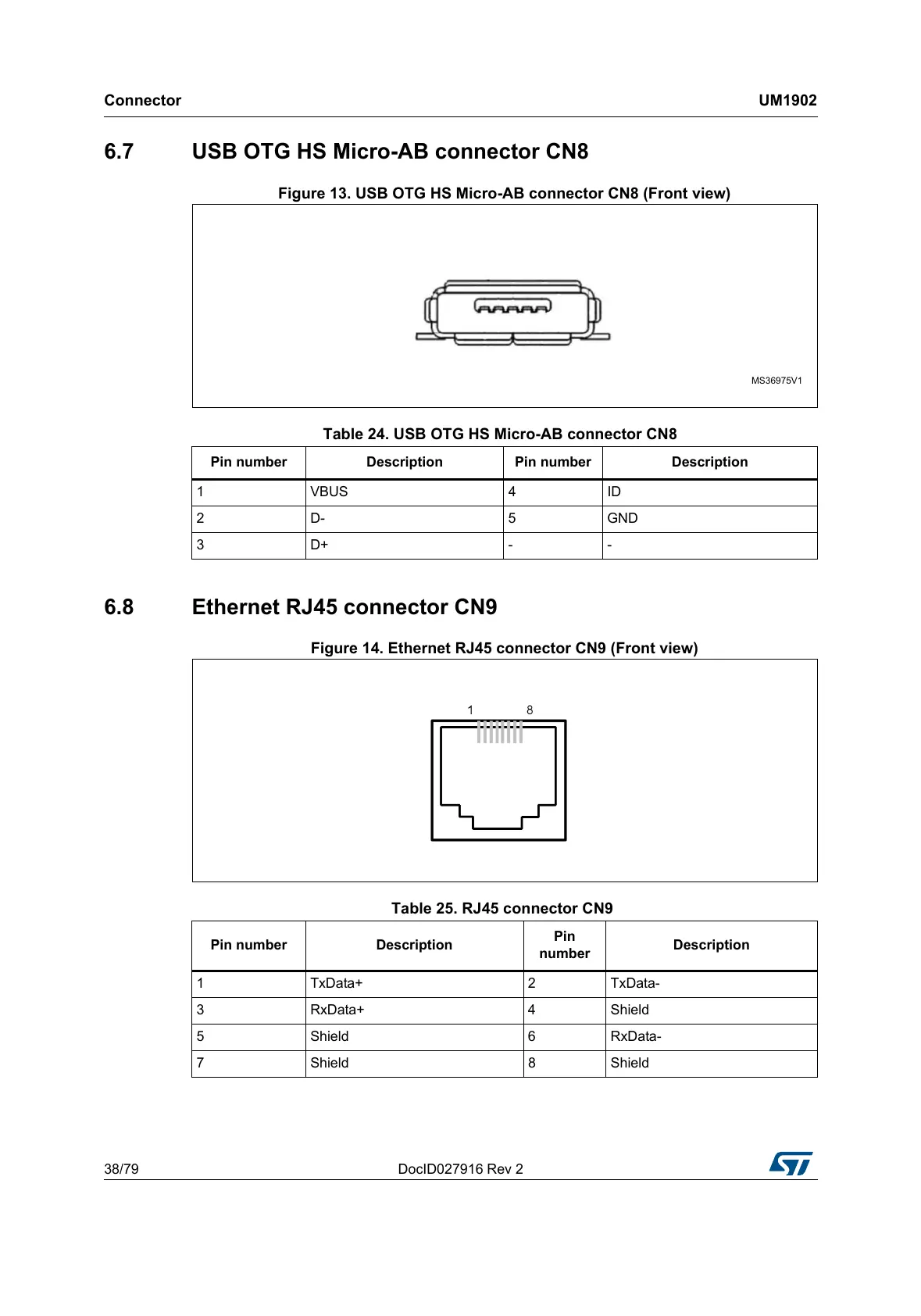

6.7 USB OTG HS Micro-AB connector CN8

Figure 13. USB OTG HS Micro-AB connector CN8 (Front view)

6.8 Ethernet RJ45 connector CN9

Figure 14. Ethernet RJ45 connector CN9 (Front view)

Table 24. USB OTG HS Micro-AB connector CN8

Pin number Description Pin number Description

1 VBUS 4 ID

2D- 5GND

3D+ --

069

Table 25. RJ45 connector CN9

Pin number Description

number

Description

1 TxData+ 2 TxData-

3 RxData+ 4 Shield

5Shield 6RxData-

7 Shield 8 Shield
