DocID027916 Rev 2 43/79
UM1902 Connector
78

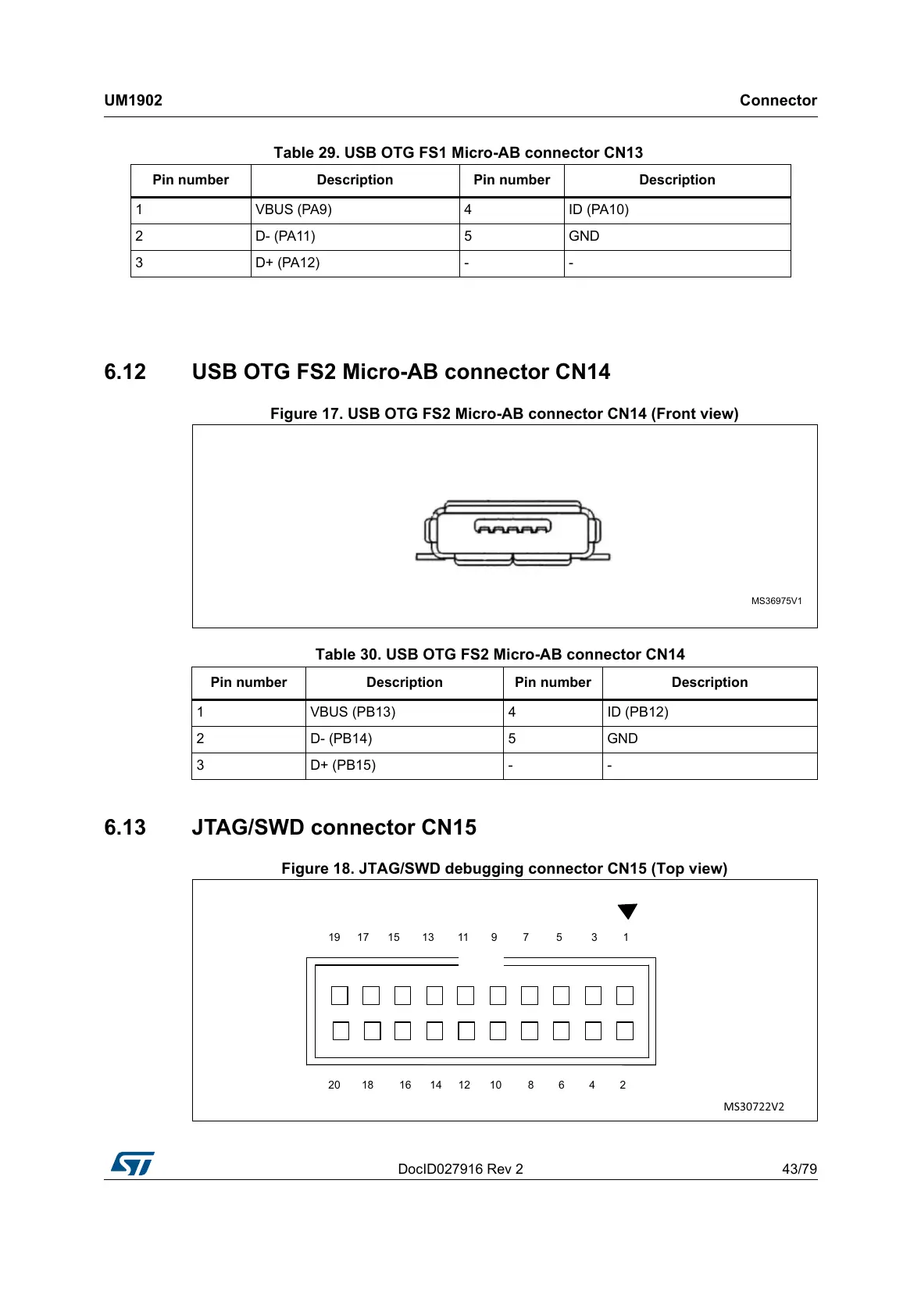

6.12 USB OTG FS2 Micro-AB connector CN14
Figure 17. USB OTG FS2 Micro-AB connector CN14 (Front view)
6.13 JTAG/SWD connector CN15
Figure 18. JTAG/SWD debugging connector CN15 (Top view)
Table 29. USB OTG FS1 Micro-AB connector CN13
Pin number Description Pin number Description
1 VBUS (PA9) 4 ID (PA10)
2 D- (PA11) 5 GND
3 D+ (PA12) - -
Table 30. USB OTG FS2 Micro-AB connector CN14
Pin number Description Pin number Description
1 VBUS (PB13) 4 ID (PB12)
2 D- (PB14) 5 GND
3 D+ (PB15) - -
069
D^ϯϬϳϮϮsϮ
   
 

 



 
 
